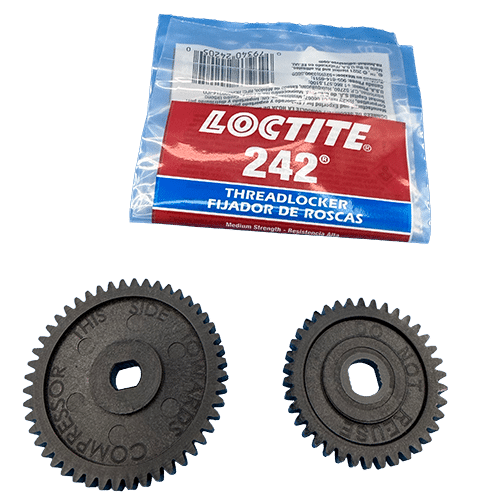

PH-402102K – Proheat 402102K M-Series Diaphragm Compressor Gear Set with Retaining Rings

The PH-402102K Proheat Gear Set is a replacement drive-gear set for compatible Proheat M-Series auxiliary coolant heaters equipped with the diaphragm-style compressor. The gear set is located within the heater burner-head assembly and transfers mechanical power from the heater motor to the diaphragm compressor.

In an M-Series heater, the electric motor performs more than one function within the burner assembly. The motor drives the combustion-air blower while its gear drive also operates the compressor. The 402102K gear set provides the mechanical connection between the motor and compressor, allowing the compressor to produce the air pressure required by the heater’s fuel and combustion system.

Proheat’s current M-Series G-II parts catalog identifies 402102K as the gear set complete with retaining rings for diaphragm-compressor models. It is shown within the common burner-head and blower assembly used by applicable M-Series heaters.

The diaphragm compressor is an important part of the M-Series combustion system. During operation, the compressor produces the pressurized air required for proper fuel delivery and atomization. The gear set transfers rotation from the motor shaft to the compressor shaft so this air supply can be generated whenever the heater is operating.

Because these gears operate continuously while the burner is running, wear or damage can eventually affect compressor drive. Worn gear teeth, damaged retaining points, improper gear alignment, or excessive mechanical resistance elsewhere in the burner assembly can interfere with compressor operation. If the compressor does not turn at the proper speed, the heater may be unable to maintain the air pressure needed for proper combustion.

The PH-402102K provides the service components needed to replace the gear drive without replacing the complete motor, compressor, or burner-head assembly when those components remain serviceable.

Proheat includes retaining rings with the gear set, providing the hardware used to secure the replacement gears to their respective shafts. Proper installation and gear orientation are important. Proheat’s diaphragm-compressor gear service procedure requires the burner head to be disassembled so the motor and compressor gears can be accessed and replaced.

After service, the gear drive should rotate freely before the heater is returned to operation. Proheat also instructs technicians to operate the fully reassembled heater through multiple cycles and inspect the burner-head and heat-exchanger area following service.

What the Gear Set Does

The M-Series burner head contains both an electric motor and diaphragm compressor.

The motor gear transfers rotation from the heater motor to the compressor gear. The compressor gear then drives the compressor shaft, allowing the diaphragm compressor to cycle and create air pressure.

That compressed air is part of the heater’s combustion system. Maintaining the proper mechanical relationship between the motor, gears, and compressor is therefore important for reliable heater startup and combustion.

A damaged drive gear can prevent the compressor from operating correctly even when the motor itself is still functioning.

Product Features

• Replacement Proheat M-Series drive gear set
• Proheat part number 402102K
• Designed specifically for diaphragm-compressor M-Series heaters
• Includes retaining rings
• Transfers rotation from the heater motor to the diaphragm compressor
• Located within the burner-head/blower assembly
• Allows gear-drive service without automatically replacing the complete compressor or motor
• Applicable to specified M-Series heaters with serial numbers beginning 700000 or R700000
• Used in the mechanical drive system responsible for compressor operation

Documented Application

Proheat lists the 402102K in its current M-Series parts catalog for:

M-Series diaphragm-compressor heaters

The current G-II catalog covers M-Series configurations including:

• M50
• M80
• M90
• M105
• M125

The 402102K is listed in the shared diaphragm-compressor burner-head/blower section. Proheat identifies the applicable diaphragm-compressor heater group by serial numbers beginning with 700000 and R700000.

Diaphragm Compressor vs. Rotary Vane Compressor

This distinction is particularly important when selecting this part.

Earlier M-Series heaters used a rotary-vane compressor. Proheat’s legacy parts catalog identifies 200436K as the gear set used with M50, M80, and M105 heaters with serial numbers beginning in 600000, or heaters equipped with the rotary-vane compressor.

The 402102K is for the later diaphragm-compressor configuration.

Do not interchange the two gear sets based only on heater model.

Specifications

Related Proheat Components

Depending on what is found during heater service, related M-Series components may include:

• 200404K – 24V Motor
• 200508K – 12V Motor
• 200685K – Diaphragm Replacement Kit
• 200691K – Diaphragm Compressor Rebuild Kit
• 200475K – Diaphragm Compressor Valve Cover Kit
• 920175K – Retaining Ring Kit
• 215800K – Complete M-Series O-Ring Kit

Proheat lists these components within the same diaphragm-compressor burner-head and compressor system.

Cross Reference

• Proheat: 402102K
• Dometic / Proheat: 402102K

Important Application Note

The PH-402102K is not the correct gear set for every Proheat M-Series heater.

Use 402102K only with the applicable diaphragm-compressor configuration. Proheat separately identifies 200436K for older rotary-vane-compressor heaters, including applicable serial numbers beginning with 600000.

Before ordering, confirm:

• Heater model
• Heater serial number
• Compressor type
• Existing gear configuration
• Existing Proheat part number when available

For diaphragm-compressor heaters, Proheat’s current documentation identifies serial-number groups beginning with 700000 and R700000.
