Overview

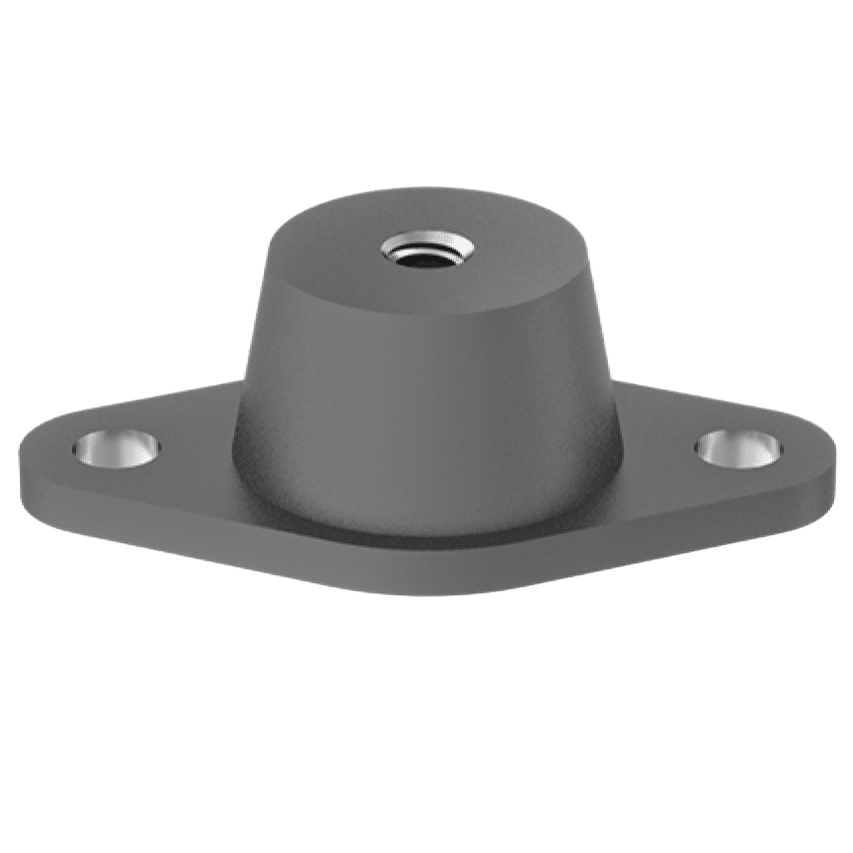

The BT5-0790 bolt-down vibration-damping mount isolates vibration and reduces noise transferred from machinery to mounting surfaces. It uses a neoprene rubber isolator bonded to a steel base plate, which provides durability while maintaining effective vibration absorption.
In addition, the fail-safe internal steel structure helps prevent collapse if the rubber element fails. As a result, this mount works well in heavy-duty and mobile equipment applications.
Key features
-
Bolt-down vibration-damping mount
-
Fail-safe internal steel construction
-
5/16-18 UNC threaded mounting hole
-
Neoprene rubber isolator for vibration reduction
-
Steel base plate for secure mounting
-
Designed for mobile and industrial equipment
Technical specifications
-
Mount type: Bolt-on, threaded hole
-
Thread size: 5/16-18
-
Thread type: UNC
-
Capacity per mount: 340 lb
-
Deflection at capacity: 0.08 in
-
Overall height: 1.02 in
-
Mount diameter: 1.20 in
-
Base length: 3.13 in
-
Base width: 1.73 in
-
Material (isolator): Neoprene rubber
-
Base material: Steel
-
Hardness: Durometer 60A (medium)
-
Color: Black
-
Operating temperature range: 10°F to 180°F
Mounting details
-
Mounting holes: 2
-
Mounting hole diameter: 0.34 in
-
Center-to-center spacing: 2.38 in
-
Mounting fasteners: Not included
Typical applications
-
HVAC and mobile equipment mounting
-
Compressor and blower isolation
-
Engine-driven accessories
-
Industrial machinery vibration control
