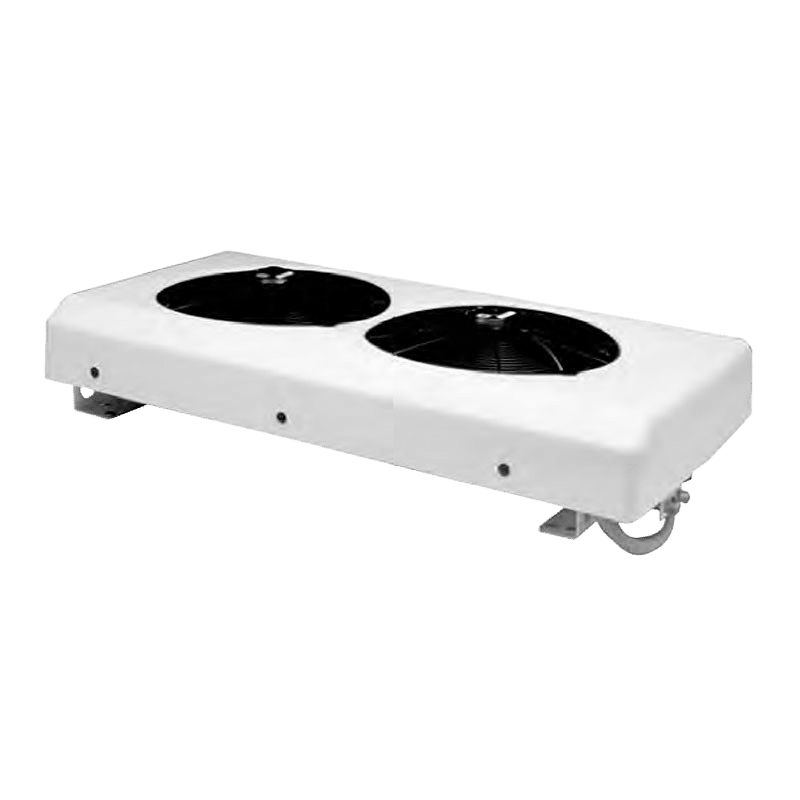

The Red Dot R-4500-8P Rooftop Power Condenser is designed for applications that require maximum condenser capacity and airflow. As Red Dot’s largest “power” condenser, the R-4500 series supports high-output evaporators and dual-evaporator systems, making it ideal for crash, fire, and rescue vehicles as well as other heavy-duty specialty platforms.
This rooftop-mounted condenser features dual 16-inch diameter fans producing a combined 2,011 CFM, ensuring reliable heat rejection even under extreme operating conditions. The robust design supports a 45,200 BTU/hr capacity at elevated condensing temperatures, delivering consistent performance when system loads are high.
Built for 12V DC electrical systems, the R-4500-8P is engineered to handle continuous duty cycles in harsh environments while maintaining serviceability and long-term reliability.
Product Specifications
-
Manufacturer: Red Dot
-
Model Series: R-4500
-
Model Number: R-4500-8P
-
System Type: Rooftop Power Condenser
-
Voltage: 12 VDC
Performance
-
Capacity: 45,200 BTU/hr
-
@ 135°F (57.2°C) condensing temperature
-
110°F (43.3°C) entering air
-
13.2 kW
-
Air & Electrical
-
Air Flow: 2,011 CFM (3,517 m³/h)
-
Fans: Two 16-inch diameter motors
-
Current Draw: 30.3 amps @ 13.6 VDC
Physical
-
Weight: ~79–85 lbs (listed)
-
Length: 42.5 in
-
Width: 22.1 in
-
Height: 9.5 in
Applications
-
Crash / Fire / Rescue
-
High-capacity or dual-evaporator A/C systems
-
Specialty heavy-duty vehicles
Cross Reference Numbers
-
Texas Truck A/C: 950-3300-12
-
AirSource – MEI: 36069
-
Primatech: PTAC10-9398
-
Red Dot Aftermarket: R-4500-8
-
Truck Air – MEI: 50-9398
-
TruckAC+: T5505
-
TTA/C: 90-4500-8
Interchange Numbers
-
10-9398
-
232-7848
-
4379-R45008
-
4379-R45008P
-
R-4500-8P
-
R4500-8P
-
RDH R4500 8
-
RDHR45008P
-
RDTR45008P
