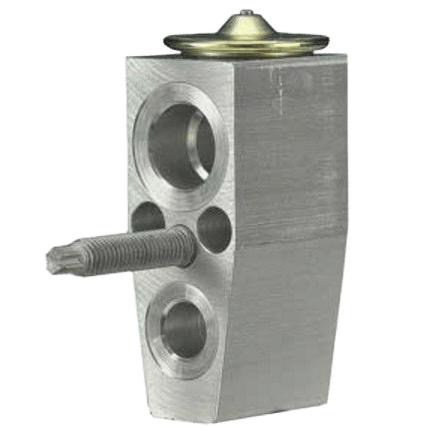

71R8475 Red Dot Block Type Expansion Valve – #8 to #12 Hose Connections

The Red Dot 71R8475 Expansion Valve is a block-type A/C expansion valve designed for Freightliner truck HVAC systems that require larger hose sizes and stable refrigerant control. This valve features #8 inlet and #12 outlet connections on both the hose side and evaporator side, making it well-suited for higher-flow applications.

Compatible with R12 and R134a refrigerants, the 71R8475 uses Stat-O-Seal fittings for secure, leak-resistant connections and is commonly referenced by Freightliner OE numbers VCCT1001428N and VCCT1001838L. Its block-style mounting allows for compact installation while maintaining consistent evaporator performance.

Use the specifications and interchange numbers below to confirm proper fitment before ordering.

Product Specifications

• Part Type: A/C Expansion Valve

• Valve Style: Block Type

• Red Dot Part No.: 71R8475

• Red Dot Factory No.: RD-5-15296-0P

• MEI Part No.: 1642

Application

• Freightliner Trucks

Refrigerant Compatibility

• R12

• R134a

Mounting

• Mount Type: Block Type

Connections (Stat-O-Seal)

Hose Side

• Inlet: #8 Stat-O-Seal (1/2″)

• Outlet: #12 Stat-O-Seal (3/4″)

Evaporator Side

• Inlet: #8 Stat-O-Seal (5/8″)

• Outlet: #12 Stat-O-Seal (7/8″)

Connection Sizes Summary

• Hose Inlet Size: #8

• Hose Outlet Size: #12

• Evaporator Inlet Size: #8

• Evaporator Outlet Size: #12

Cross References

• Texas Truck A/C: 450-6607, 450-6607A

• AirSource / MEI: 1642

• CoolStar / MEI: 520-1440

• Freightliner: T1001428N, VCCT1001838L

• Motivair: 44572

• NDNS: VCCT1001838L

• Primatech: PTAC1642

• Road Choice: EV01440

• Truck Air / MEI: 12-0628A

• TruckAC+: T3572

• Red Dot – Aftermarket: 71R8475

• Red Dot – Factory: RD-5-15296-0P

Interchange Numbers

31-31520, 16128, 2516574C91, 4068876C2, 4379-RD5152960P, 71R8475, 93-368, ABP N83 308016, RDHRD5152960P, RDT71R8475, TL4506640

(Always verify hose sizes, sealing type, and refrigerant compatibility before installation.)
