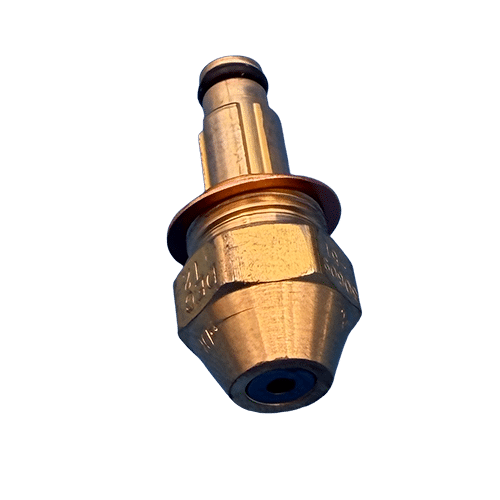

Dometic ProHeat M105/M125 30609-51 Fuel Nozzle
The Dometic ProHeat 200592K is the factory-calibrated fuel nozzle used in standard M105 and M125 M-Series diesel-fired coolant heaters.
ProHeat identifies the part as:
30609-51 – M105/M125 only, complete with O-ring.
The nozzle installs directly into the M-Series fuel delivery block along with the regulator, inlet screen, fuel shutoff solenoid, and related fuel-system components.
Key Features
- Genuine Dometic ProHeat replacement component
- Factory part number 200592K
- Nozzle designation 30609-51
- Fits standard M105
- Fits standard M125
- Air-aspirating fuel-nozzle design
- Installs in the M-Series fuel delivery block
- Part of the fuel and combustion system
- Sealing O-ring included
- Non-voltage-specific component
- Factory replacement/service part
How the M-Series Fuel Nozzle Works
The M-Series compressor supplies a metered amount of compressed air to the fuel nozzle.
As that air passes through the nozzle, it creates a low-pressure area that draws fuel from the regulator. The fuel and compressed air are then mixed and atomized into a fine fuel-and-air mixture before entering the combustion chamber. ProHeat describes the M-Series nozzle as an air-aspirating burner nozzle.
Because nozzle calibration directly affects fuel delivery and combustion, the correct nozzle must be matched to the heater output.
Compatibility
The current ProHeat G-II catalog specifies three primary M-Series nozzle calibrations:
Legacy M-Series Application
Earlier ProHeat parts documentation listed 200592K / 30609-51 for the M105. The current G-II catalog expands the documented application to M105/M125.
That makes this a good example of where the current factory documentation should take priority over older catalog descriptions.
O-Ring Included
The complete 200592K nozzle is supplied with its sealing O-ring.
Legacy ProHeat documentation separately identifies:
221442K – O-Ring, Nozzle Only
Since you also have PH-221442K in BTRAC inventory, that can eventually become a useful related service-part page.
Verify the Nozzle Number
ProHeat instructs technicians to verify the correct nozzle for the heater’s BTU rating before installation.
For M105/M125 applications covered by the current catalog, the correct designation is:
30609-51
Do not substitute the M50 or M80/M90 nozzles even if they appear physically similar.
Nozzle Cleaning and Inspection
ProHeat’s M-Series service procedure allows the nozzle to be removed, disassembled, inspected, and cleaned.
Service checks include:
- Inspect the nozzle and O-ring for contamination or damage
- Confirm the correct nozzle number
- Inspect the fuel orifice
- Inspect the air passages
- Inspect the nozzle stem, distributor, and head
- Clean using electrical contact cleaner or warm soapy water
- Use a soft-bristled brush where needed
- Keep the nozzle components together as a matched set
ProHeat specifically warns that the nozzle components are a matched set and should not be mixed between different nozzles.
Installation Notes
During installation:
- Verify the 30609-51 nozzle designation
- Keep the nozzle cavity and fuel delivery block clean
- Inspect the supplied O-ring
- Lubricate the O-ring with clean diesel fuel
- Install the nozzle into the fuel delivery block
- Reconnect all fuel and electrical components
- Operate the heater through at least one complete cycle
- Check for proper ignition, combustion, and fuel leakage
Factory Nozzle Torque
ProHeat specifies:
Nozzle to fuel delivery block:
150 ± 10 in-lb (16.9 ± 1.1 Nm)
If the three-piece nozzle assembly itself has been disassembled:
Nozzle head to stem:
30 ± 3 in-lb (3.4 ± 0.3 Nm)
Product Specifications
- BTRAC SKU: PH-200592K
- Manufacturer: Dometic ProHeat
- Manufacturer Part Number: 200592K
- Nozzle Designation: 30609-51
- Product Type: Air-Aspirating Fuel Nozzle
- Compatible Heater: ProHeat M105
- Compatible Heater: ProHeat M125
- Assembly Location: Fuel Delivery Block
- System: Fuel / Combustion
- O-Ring Included: Yes
- Legacy Nozzle O-Ring: 221442K
- Installation Torque: 150 ± 10 in-lb
- Nozzle Assembly Torque: 30 ± 3 in-lb
- Voltage Specific: No
- Variable M-Series Compatible: Not documented
Related ProHeat Parts
- PH-200589K – M50 30609-50 Fuel Nozzle
- PH-854421K – M80/M90 30609-9 Fuel Nozzle
- PH-200704K – M-Series Regulator and Screen Kit
- PH-200701K – M-Series Fuel Pump Service Kit
- PH-880035K – M-Series Fuel Filter
- PH-221442K – Fuel Nozzle O-Ring
- PH-215800K – M-Series Burner-Head O-Ring Kit
