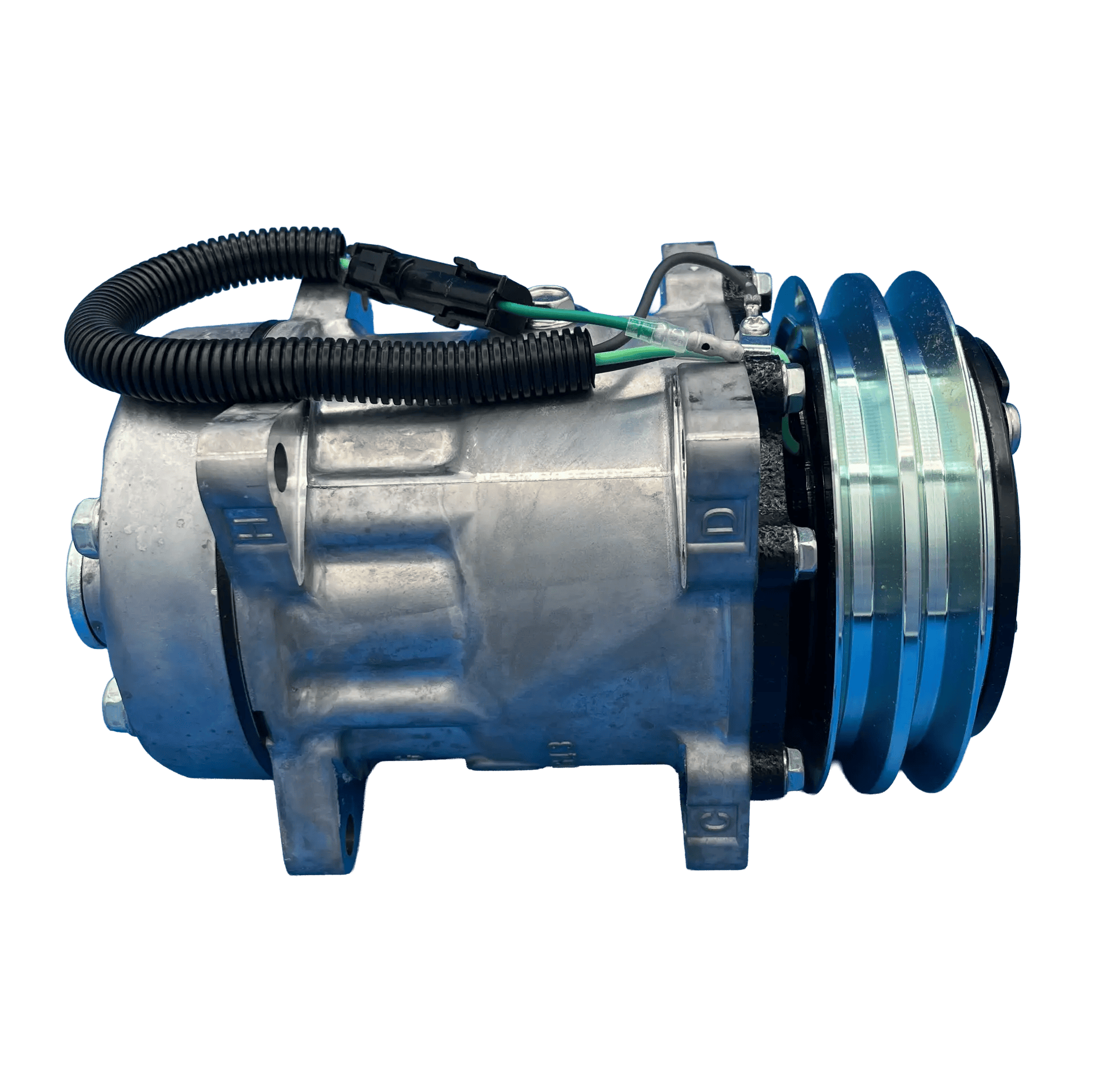

BT5-4435 24V Heavy-Duty A/C Compressor – SD7H15HD-FLX7, Ear Mount, 2-Groove 132mm

Overview

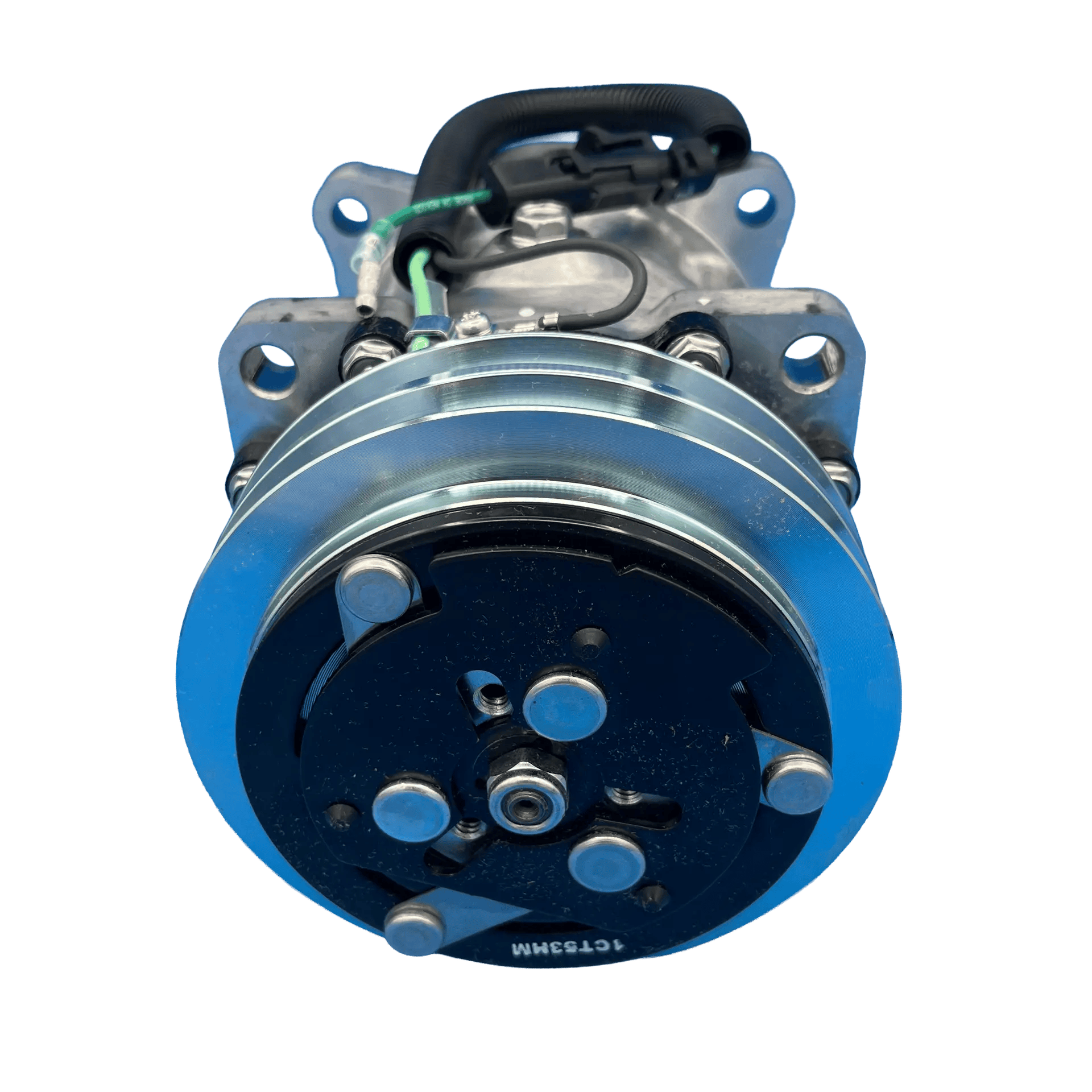

The BT5-4435 SD7H15HD-FLX7 compressor is engineered for 24V heavy-duty mobile HVAC systems, particularly in farm, construction, and off-road equipment. Because of its ear 8-long mounting design, the compressor provides improved stability in high-vibration applications. At the same time, the 2-groove, 132 mm clutch supports traditional dual 1/2-inch V-belt systems commonly used on diesel-powered machinery.

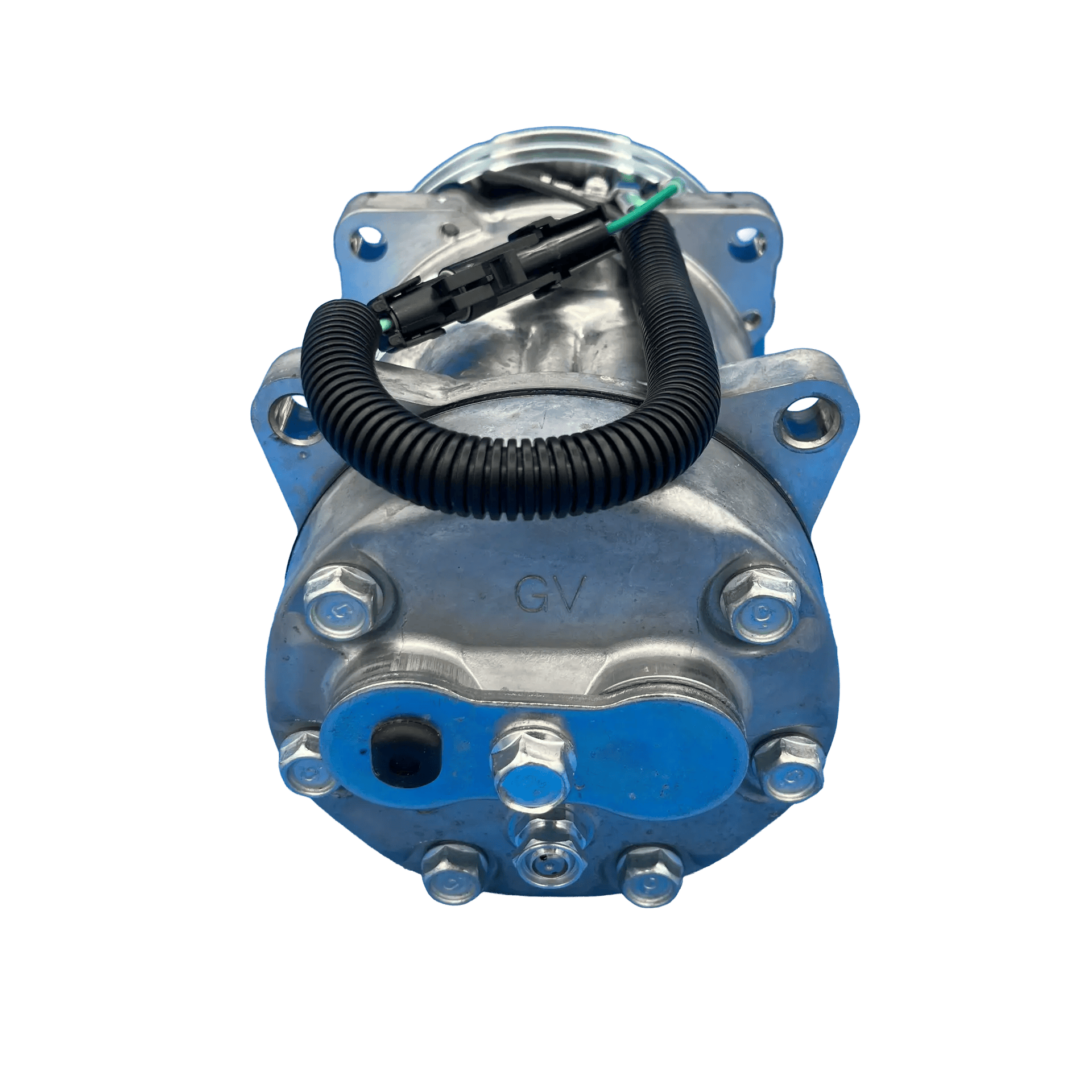

Additionally, this unit uses a GV-style cylinder head with rear universal O-ring FLX-7 pad fittings, which allows for flexible hose routing across a wide range of OEM and aftermarket installations. As a result, it integrates easily into both new builds and replacement systems. Furthermore, clockwise rotation and a 1-wire Packard electrical interface with integrated diode protection ensure compatibility with standard heavy-duty compressor control circuits using R134a refrigerant.

Key Features

• 24-volt heavy-duty A/C compressor for mobile HVAC systems

• SD7H15HD-FLX7 compressor platform

• Ear 8-long mounting configuration for vibration resistance

• 2-groove clutch for dual V-belt systems

• 132 mm clutch diameter for stable belt engagement

• GV cylinder head for proven durability

• Rear universal O-ring FLX-7 pad fittings

• Clockwise rotation for standard system compatibility

• Designed for continuous farm and off-road HVAC operation

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15HD-FLX7

• Style: Heavy Duty (HD)

• Voltage: 24V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in. (155 cc)

• Number of Cylinders: 7

Mounting & Drive

• Mounting Style: Ear, 8 Long

• Drive Type: Belt-driven

• Belt Type: Dual 1/2″ V-Belts

• Clutch Grooves: 2

• Clutch Diameter: 132 mm

• Shaft Type: Long Key Shaft

Head & Fittings

• Head Type: GV

• Fitting Port Position: Horizontal

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 200 cc

Electrical Specifications

• System Voltage: 24V

• Wire Type: 1-Wire Male Packard

• Connector Part Number: 12015791

• Diode Protection: Integrated

• Jumper: Bullet jumper included

Service & Replacement Components

• Replacement Clutch Assembly: 5058A

• Replacement Head Assembly: 50003

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4435

• MEI: 5291

• Alliance: 304074, 304244

• CoolStar: 330-1715

• DTAC: 01-05435

• Sanden: 4435, 4448

• Truck Air: 03-3719

Additional Interchange References:
75R89424, 1401226, 1410033, 20-14435, 240-9720, 300-5510, 402324, 4379-RD5109000, 4379-RD5109000P, 4521, 4527, 58E-98-00220, 6632, 6667, 6680, ABP N83 304074, ACC2715, RDHRD5109000P, RDT75R89424, ZGG705180

Typical Applications

• Farm and agricultural equipment

• Off-road and construction machinery

• Industrial and vocational vehicles

• 24V mobile and auxiliary air conditioning systems
