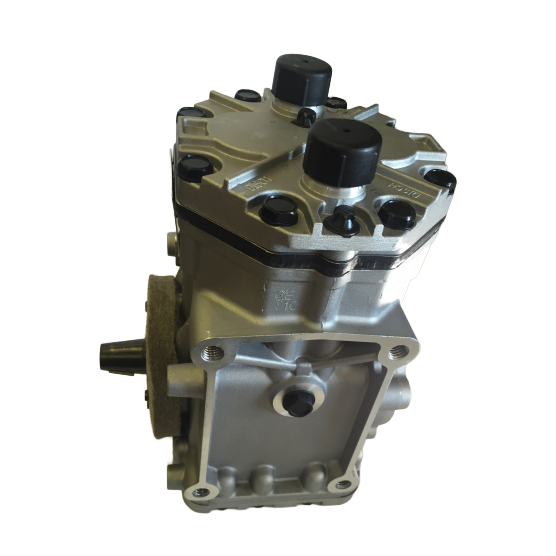

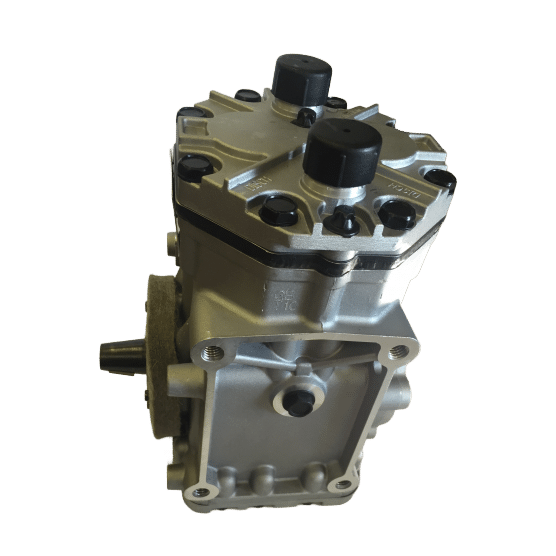

75R7290 ET210L York-Style A/C Compressor

The 75R7290 ET210L York-Style A/C Compressor is built for heavy-duty mobile air-conditioning systems that require steady cooling performance.
It is part of the ET210L compressor family and uses a proven York-style compressor platform.

This compressor is listed for multi-fit applications.
It uses a Tube-O head with a left-hand suction configuration.

The 75R7290 is supplied without clutch, so the correct clutch, pulley, belt setup, and electrical connection must be matched separately.

Function and Performance

An A/C compressor circulates refrigerant through the mobile HVAC system.
It compresses low-pressure refrigerant vapor and sends it to the condenser as a hot, high-pressure vapor.

The 75R7290 supports compatible R-12 and R-134a systems.
It has a displacement of 10.3 cu. in. / 170cc per revolution.

The compressor is also listed with a maximum allowable continuous speed of 6,000 RPM under normal operating conditions.
Because compressor fitment depends on head style, suction position, fitting size, mounting, rotation, oil type, and clutch selection, compare the original compressor before ordering.

Durability and Design

The 75R7290 uses an ET210L York-style compressor design.
It has 2 cylinders, a 1.875 in. / 47.6 mm bore, and a 1.876 in. / 47.4 mm stroke.

The compressor is listed with a Tube-O head and 1 in.-14 fitting size.
It can rotate clockwise or counterclockwise, depending on the system setup.

The supplied oil reference is 10 fl. oz. of PAG oil.
Always confirm the correct refrigerant oil type and oil charge for the specific system before installation.

Installation

Install this compressor according to the vehicle, equipment, compressor, and A/C system service procedure.
Before installation, confirm mounting pattern, hose routing, suction orientation, refrigerant type, oil requirements, and clutch compatibility.

This compressor is supplied without clutch.
Therefore, verify the correct clutch assembly, voltage, pulley diameter, belt groove count, belt alignment, and lead wire configuration before installation.

After installation, evacuate, leak test, and charge the system according to the correct service procedure.
Then verify compressor operation, belt tracking, system pressures, and cooling performance.

Product Details

• BTRAC / Product Number: 75R7290
• Description: ET210L York-style A/C compressor
• Product Type: A/C compressor
• Application: Multi-fit applications
• Application Type: Heavy-duty mobile HVAC
• Compressor Type: ET210L
• Compressor Style: York-style
• OE Family: ET210L Series
• OE Reference: ET210L-25150
• Head: Tube-O
• Fitting Port Position: LH suction
• Fitting Size: 1 in.-14
• Voltage Reference: 12V
• Clutch Type: Supplied without clutch
• Clutch Used: Without clutch
• Lead Wire: N/A
• Gauge Line: N/A
• Number of Wires: N/A
• Connector Type: N/A
• Bore: 1.875 in. / 47.6 mm
• Stroke: 1.876 in. / 47.4 mm
• Displacement Per Revolution: 10.3 cu. in. / 170cc
• Number of Cylinders: 2
• Maximum Allowable Continuous RPM: 6,000 RPM under normal operating conditions
• Refrigerant: R-12 / R-134a
• Oil Reference: PAG, 10 fl. oz.
• Weight: 14.6 lb / 6.6 kg
• Rotation: Clockwise or counterclockwise
• Fitment Note: Confirm compressor model, head style, suction position, fitting size, mounting pattern, oil requirements, rotation, and clutch selection before ordering.

OEM / Part Numbers

• Red Dot Part Number: 75R7290
• Red Dot Factory Part Number: RD-5-8638-0P
• OE Model: ET210L-21160
• OE Model: ET210L-25061
• OE Model: ET210L-25150
• OE Model: 99244-5
• AirSource: 5256
• Alliance: ABP N83 04061T
• Alliance: ABP N83 304031
• Alliance: ABP N83 304131
• Alliance: ABP N83 304451
• Alliance: ABP N83 304461
• Alliance: ABP N83 304471
• Bergstrom: 525742
• Caterpillar: 232-9198
• Climatech: KA1095
• Climatech: LC1010
• Climatech: LC1015
• Climatech: LC1020
• Climatech: LC1130
• Climatech: LC1140
• Climatech: LC2100
• Ford: D4FZ-19703B
• Ford: D9ZZ-19V703A
• Freightliner: 22-41170-000
• Freightliner: 22-46102-000
• Freightliner: 22-47510-000
• Freightliner: 488-21001
• Freightliner: CFCET210L-25150S
• IHC / Navistar: 1-9254
• IHC / Navistar: 2000820C91
• IHC / Navistar: 2502459C91
• IHC / Navistar: 2509452C91
• IHC / Navistar: 2509453C91
• IHC / Navistar: 2509456C91
• IHC / Navistar: 468323C91
• IHC / Navistar: 468323C92
• IHC / Navistar: 554712C91
• Jbar: 405881
• Paccar: 488-21097
• Paccar: 488-21909
• Paccar: K318-119
• Paccar: K318-119-3
• Paccar: K318-137-2
• Paccar: K318-137-3
• Paccar: K318-149-2
• Mack: 206RD34
• Mack: 4379-RD586380
• Mack: 793-25150
• Truck Air: 03-3402
• Volvo: 3949850
• Volvo: 688-21946
• Volvo: RDHRD586380P

Cross Reference

This part may cross reference with:

• Texas Truck AC: 300-7170
• Texas Truck AC: 300-7170A
• AirSource – MEI: 5256
• Alliance: ABP N83 304061
• Alliance: n83-2040-10330
• AP Air: 505-320
• Bergstrom: 525742
• Climatech: LC1015
• Climatech: LC1020
• Climatech: LC2100
• CoolCab: 961102
• CoolStar – MEI: 300-1000
• Euclid Ind: E-801512
• Fleetrite: ZGG14891
• Fleetrite: ZGG19254
• Ford: D4FZ-19703B
• Ford: D9ZZ-19V703A
• Ford: ET210L-25150
• Ford New Holland: D2NN-19D623A
• Ford New Holland: D3NN-19D623A
• Ford New Holland: D6NN-19D623A
• Four Seasons: 58064
• Freightliner: 22-41170-000
• Freightliner: 488-21001
• Freightliner: CFC ET210L-25150S
• Freightliner: ET210L-25150S
• Kysor: 1402002
• Kysor: 1402013
• Mack: 206RD34
• Mack: 793-25150
• Massey Ferguson: 1026088M91
• Motivair: 19725
• Motivair: 23012
• Motivair: 26299
• Motivair: 33239
• Murray: 403102
• Navistar International: 1685130-C91
• Navistar International: 2000820-C91
• Navistar International: 2502459-C91
• Navistar International: 2685996
• Navistar International: 417887-C93
• Navistar International: 468323-C91
• Navistar International: 554712-C91
• NDNS: 1685130C91
• NDNS: 2000820C91
• NDNS: 2241170000
• NDNS: 2502459C91
• NDNS: 417887C93
• NDNS: 468323C91
• NDNS: 48821001
• NDNS: 554712C91
• NDNS: ABPN83304061
• NDNS: CFCET210L25150S
• NDNS: ET210L25150S
• Omega: 20-10330
• Omega: 20-10337
• Paccar: 488-21097
• Paccar: 488-21909
• Paccar: K318-119
• Paccar: K318-119-3
• Paccar: K318-137-2
• Paccar: K318-149-2
• Paccar: K319-137-3
• Primatech: PTAC5256
• Red Dot – Aftermarket: 75R7270
• Red Dot – Aftermarket: 75R7290
• Road Choice: ACC1000
• RoadForce: RF82301227
• RoadForce: RF999991127
• Sterling: F7HS-19D629AA
• T/CCI: ET210L-12510
• T/CCI: ET210L-21097
• T/CCI: ET210L-21909
• T/CCI: ET210L-25063
• Truck Air – MEI: 03-3002E
• Truck Air: 03-3402
• TruckAC+: T4919
• TTA/C: 50-1000
• Volvo: 3949850
• Volvo: 688-21946

Interchange Numbers

This part may also interchange with:

• 03-3002E
• 03-3402
• 1-9254
• 1119561
• 1402002
• 1402013
• 1411002
• 1676832C91
• 1676832C92
• 167683C92
• 1685127C91
• 20-10330
• 2000820C91
• 200820C91
• 206RD34
• 22-41170-000
• 22-46102-000
• 22-47510-000
• 232-9198
• 2502459C91
• 2509452C91
• 2509453C91
• 2509456C91
• 300-1000
• 300-7170
• 300-7172
• 3949479
• 3949850
• 402887
• 405881
• 4379-RD586380
• 4379-RD586380P
• 468323C91
• 468323C92
• 488-21001
• 488-21097
• 488-21909
• 5216
• 5256
• 525742
• 554712C91
• 58064
• 688-21946
• 75R7290
• 75R7295
• 75R7295A
• 793-25150
• 99241-3
• 99244-3
• 99244-5
• ABP N83 304031
• ABP N83 304061
• ABP N83 04061T
• ABP N83 304131
• ABP N83 304451
• ABP N83 304461
• ABP N83 304471
• CFCET210L-25150S
• D4FZ-19703B
• D9ZZ-19V703A
• D2NN-19D623A
• D3NN-19D623A
• D6NN-19D623A
• E-801510
• E-801512
• ET209L-25184
• ET210L-12510
• ET210L-21097
• ET210L-21160
• ET210L-21909
• ET210L-25061
• ET210L-25063
• ET210L-25150
• ET210L-25186
• F7HS-19D629-AA
• K318-119
• K318-119-3
• K318-137-2
• K318-137-3
• K318-149-2
• K319-137-3
• KA1095
• LC10100
• LC10150
• LC10200
• LC11300
• LC11400
• LC21000
• LC1010
• LC1015
• LC1020
• LC1130
• LC1140
• LC2100
• RDHRD586380P
• RDT75R7290
• YC-19
• ZGG14891
• ZGG19254

Important Fitment Note

The 75R7290 is supplied without clutch.
Before ordering, confirm that your application can reuse the existing clutch or that the correct replacement clutch is being ordered separately.

Do not assume all ET210L compressors are interchangeable.
Head type, Tube-O fitting size, suction position, mounting pattern, rotation, refrigerant, oil charge, and clutch configuration must match.

Application Note

This compressor is listed for multi-fit applications.
The interchange list is extensive, but it should be used as a sourcing and identification guide rather than a complete fitment guarantee.

Always verify the compressor tag, equipment model, mounting arrangement, hose routing, and system oil requirements before installation.

Need Help?

Not sure if 75R7290 is the correct compressor for your A/C system?
Contact BTRAC with your compressor tag, equipment model, hose port photos, clutch details, mounting pattern, and current part number. Our team can help confirm fitment or find the right compressor option.
