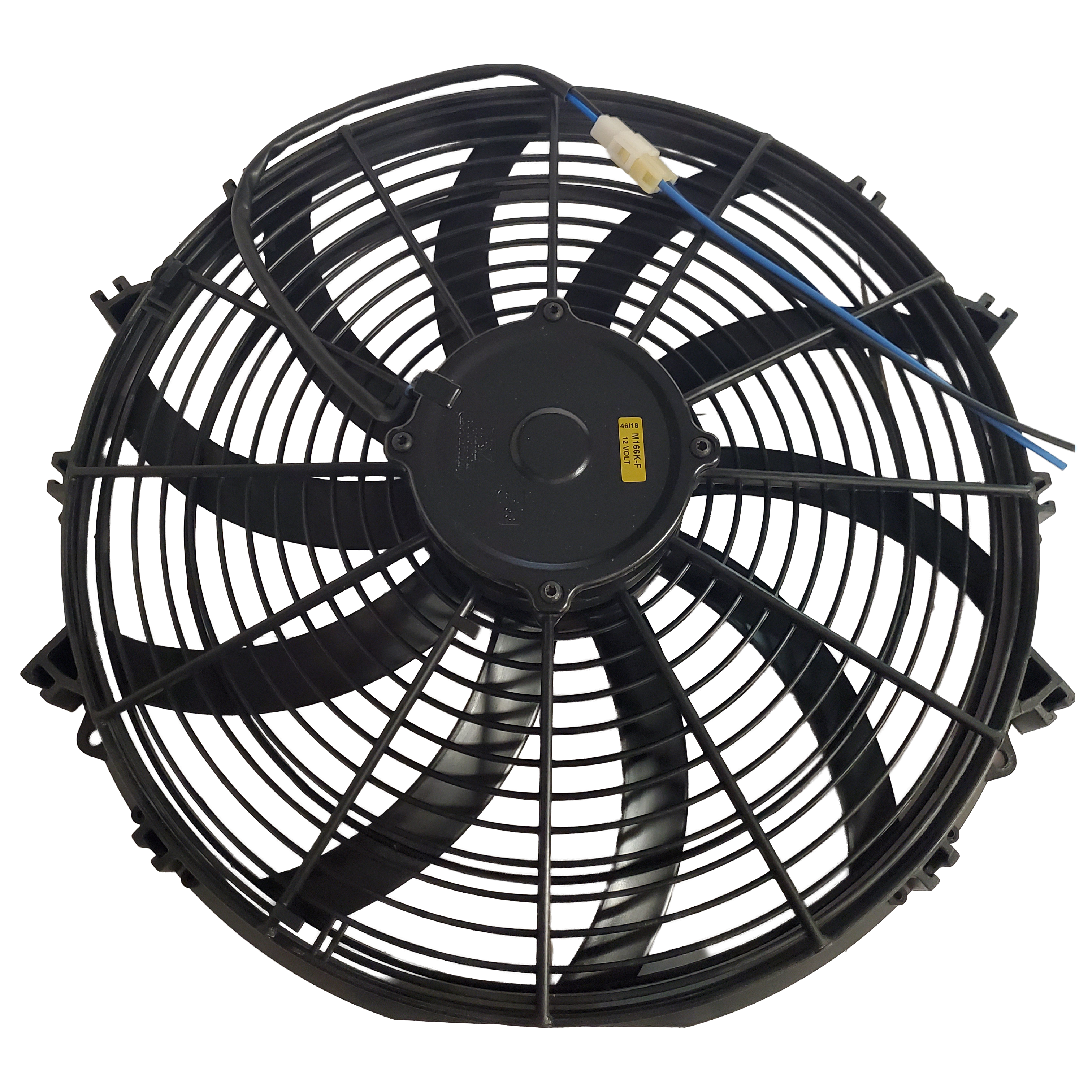

BT3-0155 Fan – 16 Inch Reversible, 12V

Description

The BTRAC BT3-0155 axial fan is engineered for mobile HVAC and equipment cooling systems operating on 12-volt electrical platforms. It is based on the Maradyne Champion Series M166K platform and uses a 16-inch low-profile axial design to move large volumes of air while keeping overall depth to a minimum.

Because the fan is fully reversible, it can operate as either a pusher or a puller, depending on the application. As a result, it adapts easily to condenser, radiator, and auxiliary cooling layouts. In addition, the quiet S-Blade fan design is dynamically balanced, which helps reduce vibration and noise during continuous duty.

The fan uses a sealed motor tested to DIN EN 60529 and rated IP68, protecting it from dust and water intrusion. Therefore, it performs reliably in environments exposed to moisture, debris, vibration, and temperature extremes. The glass-filled nylon construction adds strength and durability for heavy-duty mobile use.

Furthermore, the BT3-0155 delivers up to 1,810 CFM at zero static pressure, while maintaining stable current draw as static pressure increases. Because of this high-output performance, it serves as a dependable OEM-style replacement fan for demanding mobile cooling systems.

---

Specifications

Electrical

• Voltage: 12V DC

• Motor Power: 160W

• Current Draw (Free Flow): ~12.3 amps

Fan & Performance

• Fan Type: Axial

• Diameter: 16 in

• Airflow (Free Flow): 1,810 CFM

• Direction: Reversible (pusher or puller)

• Blade Design: Quiet S-Blade

Construction

• Motor Type: Sealed, waterproof

• Ingress Protection: IP68 (DIN EN 60529)

• Housing Material: Glass-filled nylon

• Balance: Dynamically balanced

• Connector: Locking mating pigtail connector (included)

Physical

• Overall Depth: ~2.87 in (low-profile design)

• Mounting Feet: (4) 90° adjustable mounting feet

---

Cross Reference Numbers

M166K

---

Included Components

• (4) 90° mounting feet

• Locking mating pigtail connector

• Rubber spacers for proper stand-off from heat exchanger

---

Important Notes

• Designed for 12-volt mobile HVAC and cooling systems

• Reversible operation supports pusher or puller configurations

• IP68-rated sealed motor for harsh environments

• High-airflow 16-inch fan for demanding cooling loads

• Optional fan harnesses, thermostats, and brackets sold separately

• Always verify mounting clearance, airflow direction, and electrical compatibility before installation
