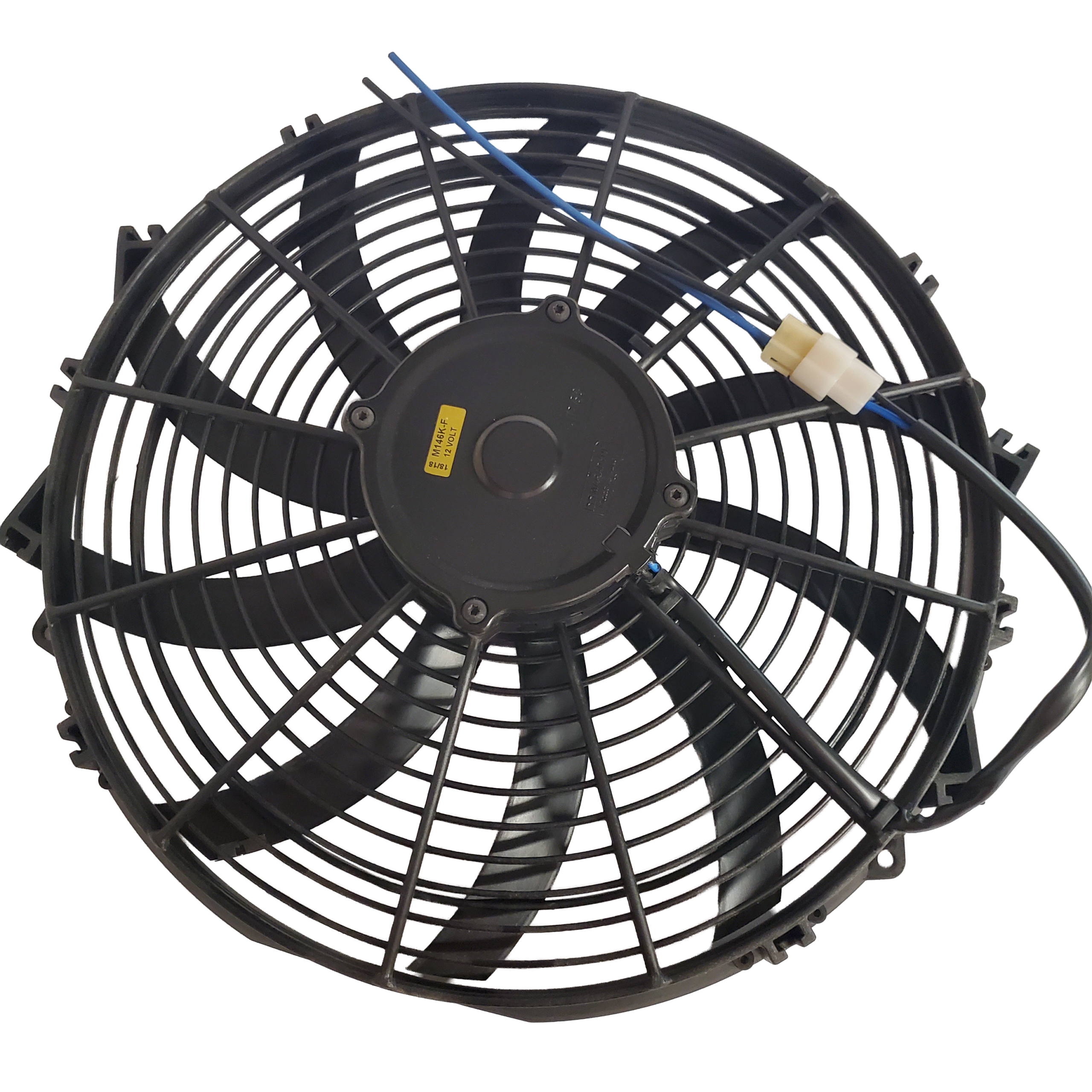

BT3-0154 Fan – 14 Inch Reversible, 12V

The BTRAC BT3-0154 axial fan is engineered for mobile HVAC and equipment cooling systems operating on 12-volt electrical platforms. It is based on the Maradyne Champion Series M146K platform and uses a 14-inch low-profile axial design to deliver strong airflow while maintaining minimal installation depth.

Because the fan is reversible, it can operate as either a pusher or a puller, depending on system layout. As a result, it adapts easily to condenser, radiator, and auxiliary cooling applications. In addition, the quiet S-Blade fan design is dynamically balanced, which helps reduce vibration and operating noise during continuous duty.

The fan uses a sealed motor tested to DIN EN 60529 and rated IP68, which protects against dust and water intrusion. Therefore, it performs reliably in environments exposed to moisture, debris, vibration, and temperature extremes. The housing uses glass-filled nylon construction to provide strength and durability in demanding mobile applications.

Furthermore, the BT3-0154 delivers up to 1,555 CFM at zero static pressure, while maintaining stable current draw as static pressure increases. Because of this performance profile, it serves as a dependable OEM-style replacement fan for high-demand mobile cooling systems.

Specifications

Electrical

• Voltage: 12V DC

• Current Draw (Free Flow): ~7.5 amps

Fan & Performance

• Fan Type: Axial

• Diameter: 14 in

• Airflow (Free Flow): 1,555 CFM

• Direction: Reversible (pusher or puller)

• Blade Design: Quiet S-Blade

Construction

• Motor Type: Sealed, waterproof

• Ingress Protection: IP68 (DIN EN 60529)

• Housing Material: Glass-filled nylon

• Balance: Dynamically balanced

• Connector: Locking mating pigtail connector (included)

Physical

• Overall Depth: ~2.87 in

• Mounting Feet: (4) 90° adjustable mounting feet

Cross Reference Numbers

M146K

Included Components

• (4) 90° mounting feet

• Locking mating pigtail connector

• Rubber spacers for proper stand-off from heat exchanger

Important Notes

• Designed for 12-volt mobile HVAC and cooling systems

• Reversible operation supports pusher or puller configurations

• IP68-rated sealed motor for harsh environments

• Low-profile, high-airflow design for tight installations

• Optional fan harnesses, thermostats, and brackets sold separately

• Always verify mounting clearance, airflow direction, and electrical compatibility before installation
