Overview

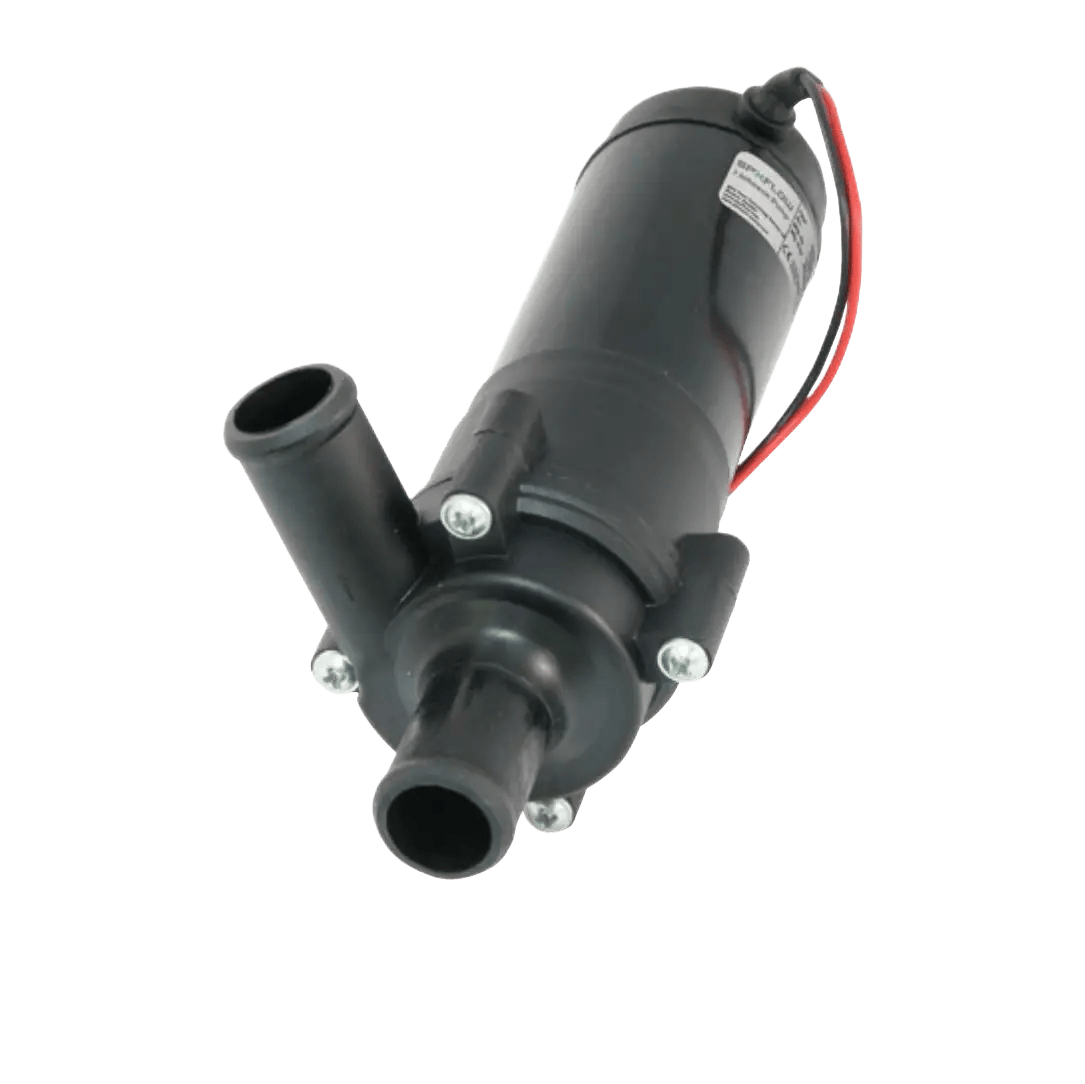

The BTRAC BT2-0317-M circulation pump is a high-capacity, magnetically driven 12V coolant pump designed for cab heaters, auxiliary heating circuits, and mobile HVAC systems. This pump delivers increased flow compared to CM10 units, making it ideal for larger heater cores and longer coolant runs.
Its magnetic drive design eliminates mechanical seals, reducing leakage risk while improving durability in harsh operating environments.
Key features
-
12V CM30-series coolant circulation pump
-
Magnetically driven (seal-less design)
-
Flexible power cord installed
-
Higher flow capacity for demanding heater systems
-
Compact, service-friendly footprint
-
Designed for continuous-duty operation
Performance specifications
-
Voltage: 12V DC
-
Flow rate: ~6.9 GPM (26 L/min)
-
Maximum system pressure: 2.5 bar
-
Input power: Up to 27W
-
Dry-running capability: Up to 30 minutes
Port & connection details
-
Hose size: 5/8″ (16 mm)
-
Connection type: Hose barb
-
Flow direction: Molded arrow on pump body
Dimensions & weight
-
Length: 6.97 in (177 mm)
-
Height: 3.35 in (85 mm)
-
Width: 2.68 in (68 mm)
-
Weight: Approx. 1.3 lb (0.6 kg)
Construction materials
-
Pump body: Thermoplastic (PPA)
-
Impeller: Thermoplastic (PPA)
-
Shaft: Stainless steel
-
Motor: 12V DC permanent magnet, ball-bearing supported
Fluid compatibility
-
Water
-
Water / glycol mixtures
-
Up to 60% glycol concentration
Operating temperature range
-
Minimum: -40°F (-40°C)
-
Maximum: 212°F (100°C)
Interchange / reference
-
Catalog reference: 10-24488-03
-
Equivalent platform: CM30P7-1, 12V, flexible cord
Typical applications
-
High-output cab heater systems
-
Auxiliary coolant circulation
-
Mobile HVAC systems
-
Heavy-duty and off-highway equipment
