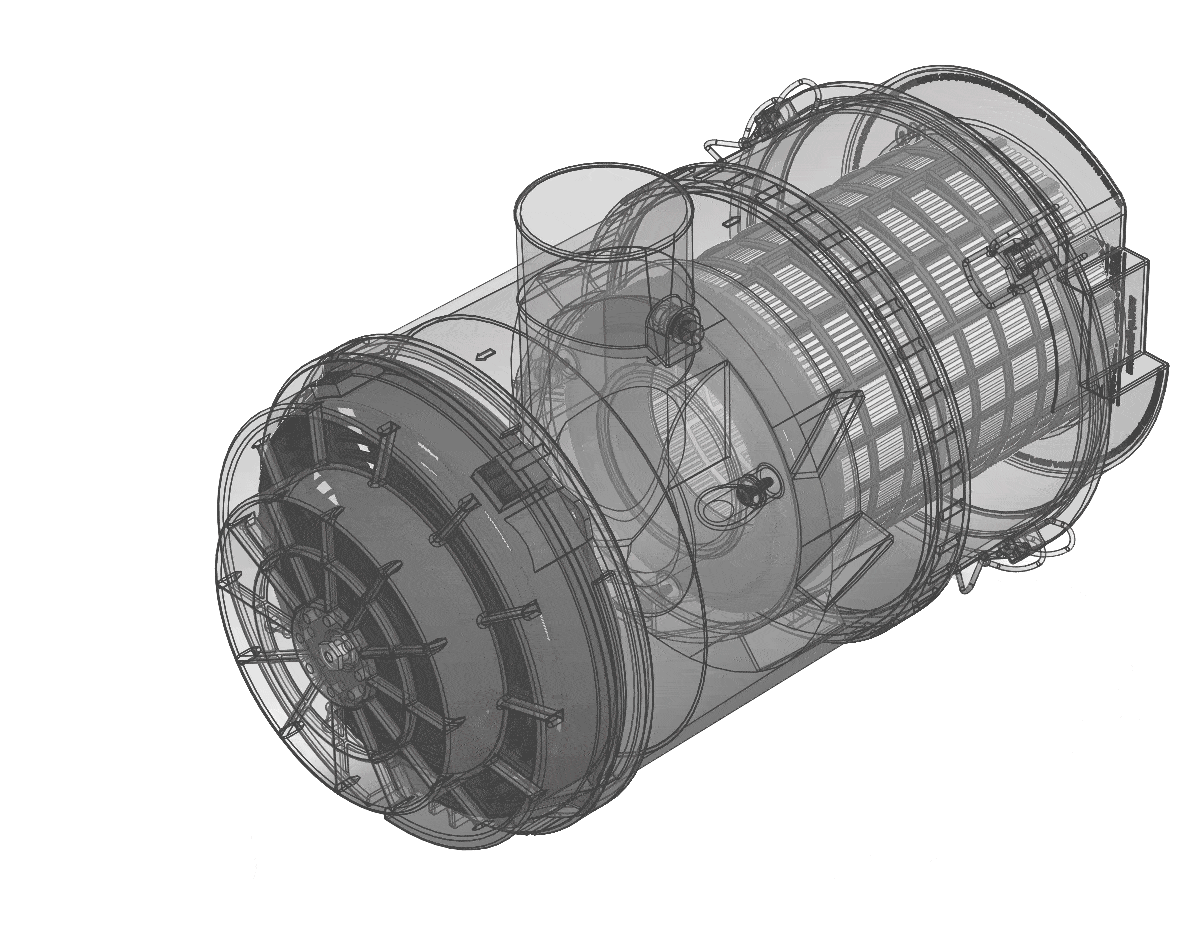

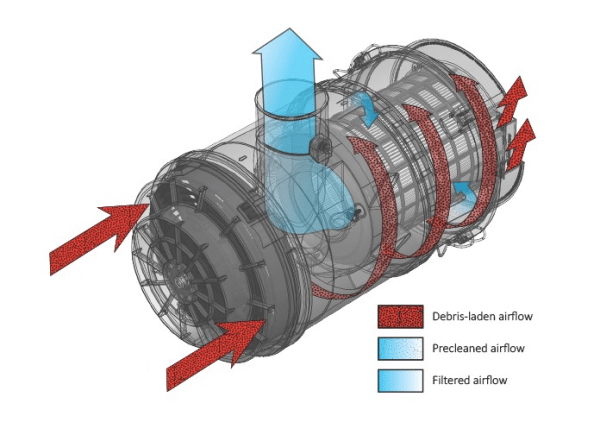

The Sy-Klone RCF2038 is a complete RESPA CF2 fresh-air system engineered to supply filtered, pressurized air to enclosed operator cabins. Rather than being only a replacement filter, the RCF2038 is the full powered assembly that combines the precleaner, filter, and pressurizer into one compact unit.

This model is the standard-length 24V version with a 3-inch outlet and includes the FEFF208 MERV 16 ejective filter. Its filtration efficiency is rated at ≥95% at 0.3 to 1.0 microns, helping reduce fine airborne dust and contaminants before they enter the cabin. By maintaining positive cab pressure, the RCF2038 helps prevent unfiltered outside air from entering the enclosure while also supporting longer HVAC maintenance intervals and better filter life.

Because it uses Sy-Klone’s powered fresh-air design, the RCF2038 is well suited for equipment operating in dirty and debris-heavy environments. It is a strong fit for machines used in mining, construction, forestry, waste handling, agriculture, and other off-road industrial applications where clean intake air and dependable cab pressurization matter.

Key Features

• Complete Sy-Klone RESPA CF2 fresh-air system

• 24 VDC compact motor configuration

• Includes FEFF208 MERV 16 ejective filter

• Standard-length housing

• 3-inch outlet

• Filtration efficiency of ≥95% at 0.3 to 1.0 microns

• Helps maintain positive cab pressure

• Supports cleaner intake air and reduced operator exposure

• Helps extend HVAC maintenance intervals and filter life

• Outlet can be rotated in 10-degree increments

• Ejection ports can be rotated 360 degrees

• Requires approximately 6.25 inches of filter service clearance

Specifications

Applications & Fitment

The Sy-Klone RCF2038 is used on enclosed heavy-duty equipment that requires a standard-length 24V fresh-air pressurization system with a 3-inch outlet. Typical applications may include:

• Mining trucks and loaders

• Construction dozers, graders, and excavators

• Forestry processors and harvesters

• Waste-handling and landfill equipment

• Agricultural tractors and combines

• Off-road and specialty industrial equipment

Final fitment should always be confirmed by part number, voltage, outlet size, dimensions, and available mounting space.

Maintenance

Replace the FEFF208 filter when cab pressure drops below the minimum pressure threshold in a sealed cab, or at 1,000 hours of operation even if no alert is present. Do not clean or reuse the filter. Used filters should be bagged and disposed of according to local regulations.

Before installing a new filter:

• Shut the machine off

• Inspect the unit for damage

• Remove loose debris with a clean rag

• Never use compressed air inside the housing

• Confirm the filter seats properly on the housing

• Make sure the ejection port orientation is correct before relatching

Cross References / Related Numbers

• BT8-2004-4 — BTRAC part number

• RCF2038 — complete RESPA CF2 fresh-air system

• FEFF208 — replacement MERV 16 ejective filter

• RESPA CF2 — product family
