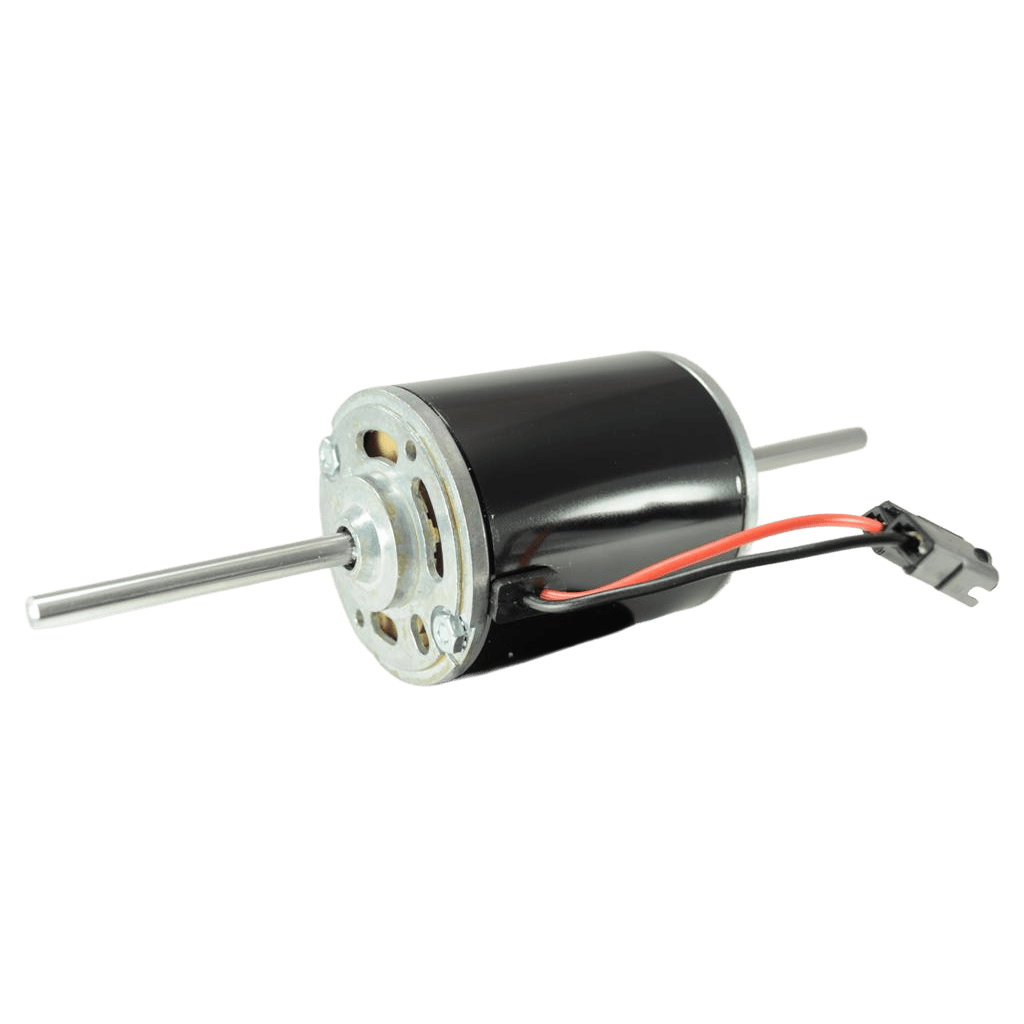

The Red Dot 73R4062 is engineered for HVAC systems that require a double-shaft blower motor, making it ideal for applications using dual squirrel-cage wheels or balanced airflow assemblies. Operating on 12 volts, this single-speed motor provides consistent airflow while maintaining durability in demanding mobile environments.
Its permanent magnet motor design ensures efficient operation, while the vented housing helps manage heat during extended run times. The strap/stud mounting configuration with a 2-5/16″ span allows for straightforward installation in a wide range of heater and evaporator assemblies.
Product Specifications
Red Dot Part No.: 73R4062
Product Name: Blower Motor
Voltage: 12V
Speed: Single Speed
Motor Type: Permanent Magnet
Vent: Vented
Shaft Configuration: Double Shaft
Shaft Diameter: 5/16″
Shaft Length: 3-1/4″
Mount Type: Strap / Stud Mounted
Mounting Span: 2-5/16″
Overall Dimensions:
-
Length: 4″
-
Width: 3-3/8″
-
Height: 3-1/8″
Connector: Two-conductor Packard
Terminal Block: #2971859, 1/4″ block terminal
Applications
-
Mobile HVAC systems requiring double-shaft blower motors
-
Heater and evaporator assemblies with dual blower wheels
-
Heavy-duty truck, bus, and off-road equipment HVAC applications
Interchange & Cross-Reference Numbers
Interchange Numbers:
01-2012, 1-1444, 1-1640, 1075051, 1099015, 1099049, 110-1064, 150-3510, 1545769, 176118, 203179, 232-8809, 243051KB, 26-13277, 275102, 275156, 2819-530-002, 2819-530-016, 3385, 35543, 4379-RD556140, 4379-RD556140P, 510-264, 73R4062, 7979-275102, 900335, ABP N83 301022, ABP N83 301172, AT307724, BM11164, HA17100, PF23058Q, PM385, RDHRD556140P, RDT73R4062, ZGG11256, ZGG11444, ZGG12569, ZGG12886
