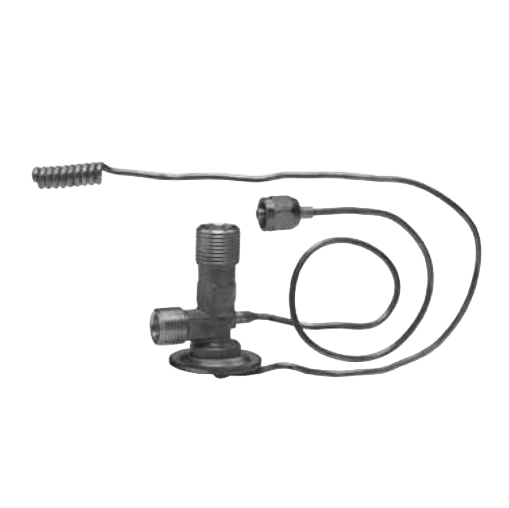

71R8100 Red Dot External Equalizer Expansion Valve – 13 in. Capillary, 1½ Ton

The Red Dot 71R8100 External Equalizer Expansion Valve is designed for mobile air conditioning systems that require accurate refrigerant metering under variable load conditions. Externally equalized expansion valves sense pressure at the evaporator outlet through a dedicated equalizer line, allowing the valve to maintain proper superheat when pressure drop across the evaporator is present.

This valve features 13-inch equalizer and capillary tubes, male O-ring inlet and outlet connections, and a 1½ ton capacity rating, making it a common OE-style replacement across on-highway, agricultural, construction, and off-highway HVAC applications.

Use the specifications and interchange numbers below to confirm the correct match before ordering.

Product Specifications

• Part Type: External Equalizer Expansion Valve

• Red Dot Part No.: 71R8100

• Red Dot Factory No.: RD-5-3824-1P

• Capacity Rating: 1½ Ton

Connections:

• Inlet: #6 (3/8 in.) Male O-Ring

• Outlet: #8 (1/2 in.) Male O-Ring

• Nut: 1/4 in. Female O-Ring

Tube Lengths:

• Equalizer Tube Length: 13 in.

• Capillary Tube Length: 13 in.

• Application: Mobile A/C systems requiring external pressure equalization

OEM & Interchange Numbers

OEM Numbers:

• Volvo: 176283, 176568, 3918211, 60012-5002

• Mack: 4379-RD538241, 7979-404073

• Navistar: 118305-C1, 469475-C41, 469475-C91

• Freightliner: 40473

• Western Star: 02-7086505

• PACCAR: 5638, 576270BSM, 57627P, D2953-5300

• John Deere: AL28688

Aftermarket / Interchange:

• Texas Truck AC: 450-6802, 450-6802A

• AirSource / MEI: 1625

• Alliance: ABP N83 308075, 308085, 308095, 308209

• Bergstrom: 540058, 5638P, 576270

• Climatech: EA1230, EA10200, EA12300

• CoolCab: 932133, 932137

• CoolStar / MEI: 525-1752

• Euclid: E-805016, E-805020, E-805023

• Everco HD: 932142

• Fleetrite: ZGG11845, ZGG709004

• Four Seasons: 38610, 38872, 38876

• Kysor: 1814001, 1875003, 1899009 (404073 / 404409 old)

• Motivaire: 1-1845, 16803

• Murray: 207399

• Omega: 31-10908, 31-10908-AM, 31-10931

• Parker: 031134-102

• Primatech: PTAC1625

• Roadforce: RF5825762866

• Terex: 9053997

• Truck Air / MEI: 12-3017A

• TruckAC+: T3520

• TTA/C: 16-7402

Additional Interchange References:
031134-102, 04-15003, 12-0801A, 12-3017, 1625, 176283, 1814001, 207399, 232-8553, 38610, 38872, 401894, 4379-RD538241P, RDHRD538241P, RDT71R8100

(Always verify capacity rating, O-ring sizes, and tube lengths prior to installation.)
