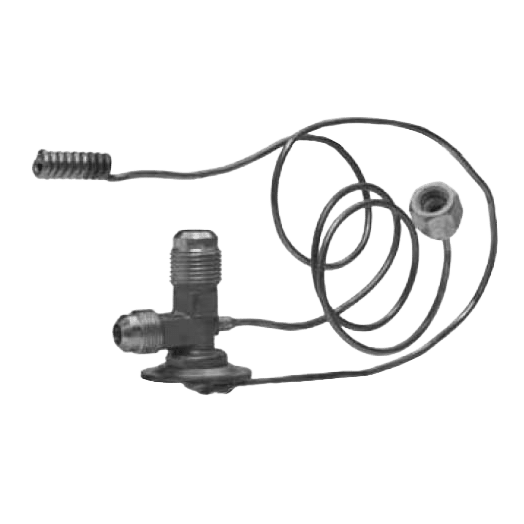

71R8080 Red Dot OEM Externally Equalized A/C Expansion Valve – 1½ Ton

The Red Dot 71R8080 OEM Externally Equalized A/C Expansion Valve is designed for mobile air conditioning systems that require accurate refrigerant control under varying load conditions. Externally equalized valves sense evaporator outlet pressure through a dedicated equalizer line, allowing precise superheat control when evaporator pressure drop is present.

This valve is commonly referenced as Truck Air 12-3025A / MEI 1620 and features a compact “peanut” style body. With 10-inch equalizer and capillary tubes, male O-ring inlet and outlet connections, and a 1½ ton rating, the 71R8080 is widely used across on-highway, agricultural, and off-highway HVAC applications.

Use the specifications and interchange numbers below to confirm the correct match before ordering.

Product Specifications

• Part Type: External Equalizer Expansion Valve (OEM)

• Red Dot Aftermarket Part No.: 71R8080

• Red Dot Factory No.: RD-5-5862-0

• Valve Type: Externally Equalized (“Peanut” style)

• Capacity Rating: 1½ Ton

Connections:

• Inlet: #6 Male O-Ring

• Outlet: #8 Male O-Ring

• Nut: 1/4 in. Male O-Ring

Tube Lengths:

• Equalizer Tube Length: 10 in.

• Capillary Tube Length: 10 in.

• Application: Mobile A/C systems requiring external pressure equalization

OEM & Interchange Numbers

OEM Numbers:

• Volvo: 176188, 3949276

• Navistar: 1691469-C1, 1691469-C2, 16996846-C2, 469475-C1

• Mack: 3230-218023, 4379-RD558620

• John Deere: 826-003

Aftermarket / Interchange:

• Texas Truck AC: 450-6801, 450-6801A

• AirSource / MEI: 1620

• Alliance: ABP N83 308005, 308045, 308105, 308349

• Bergstrom: 540022, 540027, 540172, 540347

• Climatech: EA1010, EA1015, EA1300, EA1410

• CoolCab: 932127, 932146

• CoolStar / MEI: 525-1704

• Euclid: E-805021, E-805100

• Fleetrite: ZGG12029, ZGG19057

• Four Seasons: 38861

• JBAR: 406570

• Kysor: 1813003, 1899025, 1899036 (404342 old)

• Motivaire: 20821, 44590

• Murray: 207370

• Omega: 31-10951, 31-10951-AM, 31-10961-AM

• Parker: 031134-120

• Primatech: PTAC1620

• Road Choice: EV01704

• Roadforce: RF9195400511

• Truck Air / MEI: 12-3025A

• TruckAC+: T3519

• TTA/C: 16-7401

Additional Interchange References:
031134-120, 12-3025, 1620, 176185, 1813009, 232-8551, 38729, 38864, 404104, 404342, 4379-RD558620P, 826-081, RDHRD558620P, RDT71R8080, ZGG709037

(Always verify capacity rating, O-ring sizes, and tube lengths prior to installation.)
