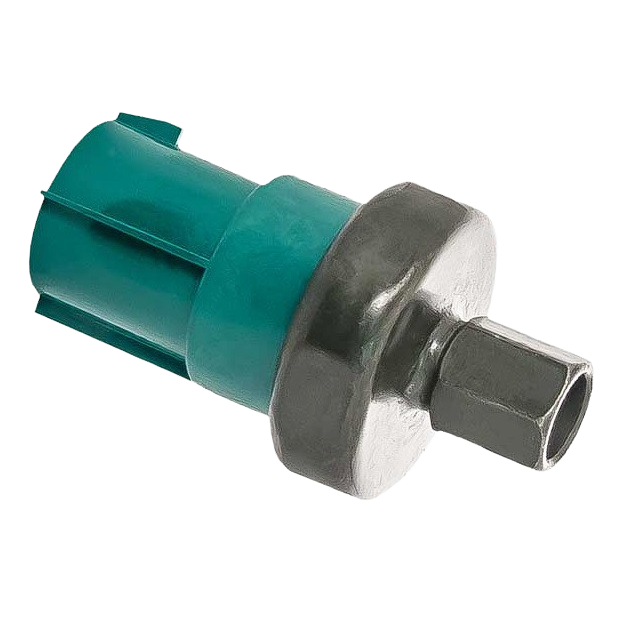

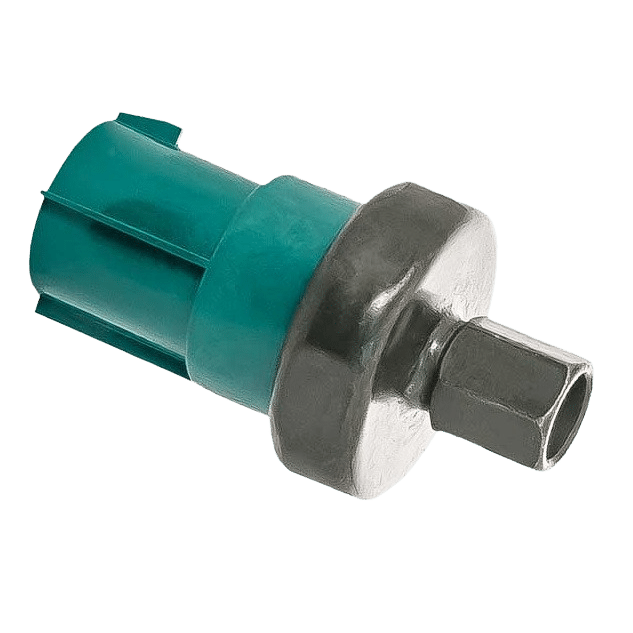

The Red Dot 71R6155 green binary pressure switch provides dual protection for mobile HVAC systems by monitoring both low-side and high-side refrigerant pressure. It is a normally closed switch that prevents compressor operation if refrigerant pressure drops too low, ambient temperature becomes too low, or high-side pressure rises excessively. The switch automatically resets once system pressures return to normal operating ranges.
Designed for Freightliner Business Class and Century/Columbia applications, this switch features a female M10 x 1.25 fitting, four-terminal connector, and is calibrated for R134a refrigerant. Separate pressure set points allow fan control and compressor protection, making it a reliable OEM-style replacement.
Use the specifications and interchange numbers below to confirm compatibility before ordering.
Product Specifications
-
Part Type: Binary Pressure Switch (Low / High)
-
Red Dot Part No.: 71R6155
-
Red Dot Factory / Catalog No.: RD-5-13234-0P
-
OEM Reference: 06-35209-000
-
Switch Type: High pressure binary
-
Operating Style: Normally closed
-
Refrigerant Compatibility: R134a
-
Voltage: 12V
-
Fitting: Female M10 x 1.25
-

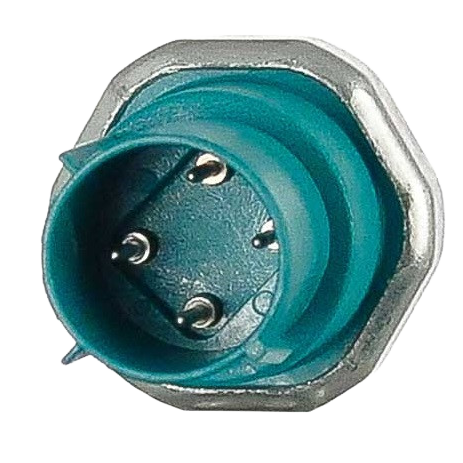

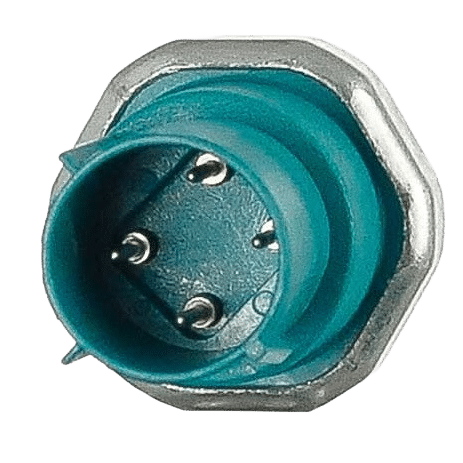

Electrical Connection: 4-terminal connector
Pressure Set Points
-
Fan Control (M.P.): 325–270 PSI
-
Compressor Protection (H.P.): 465–235 PSI
Applications
-
Freightliner Business Class M2 100–112V
-
Freightliner FL50, FL60, FL70 (2009–2010)
-
Freightliner Century Class / Columbia (2009–2010)
Cross Reference Numbers
-
Texas Truck AC: 850-8956
-
AirSource (MEI): 1324
-
Alliance: ABP N83 318035
-
CoolStar (MEI): 912-1144
-
Omega: 29-30185
-
Primatech: PTAC1324
-
Road Choice: SWI1944
-
Sterling / Ford / Freightliner: 06-35209-000
-
Truck Air (MEI): 11-0438
-
TruckAC+: T6747
-
Red Dot (Factory): RD-5-13234-0P
-
Red Dot (Aftermarket): 71R6155
Interchange Numbers
06-35209-000, 1324, 4379-RD5132340P, 71R6155, 850-8956, ABP N83 318035, RD5132340P, RDHRD5132340P, RDT71R6155, SWI1944
