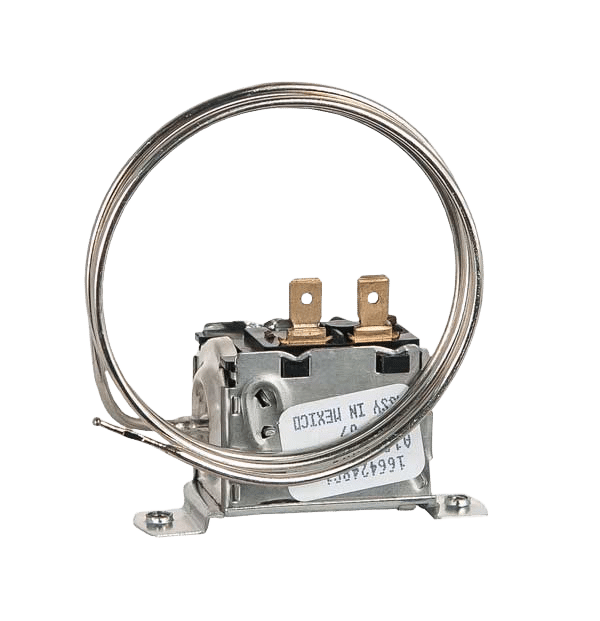

Red Dot 71R3300 Preset Thermostatic Switch (34°F–44°F) with 25″ Capillary

The Red Dot 71R3300 preset thermostatic switch provides dependable temperature cycling without the need for manual adjustment. Because it uses a fixed (preset) setting, it’s ideal for mobile HVAC systems that require consistent and repeatable performance in heavy-duty operating conditions.

This thermostatic switch features a 25-inch capillary and operates within a 34°F–44°F temperature range, delivering stable clutch cycling with an 8°F differential. In addition, the flange base mounting design supports common installation patterns used across IHC-Navistar and other mobile HVAC applications.

Use the specifications and interchange numbers below to confirm correct fitment before ordering.

Product Specifications

• Part Type: Preset Thermostatic Switch (Fixed / Non-Adjustable)

• Red Dot Part No.: 71R3300

• Red Dot Factory Part No.: RD-5-8257-0P

• Capillary Length: 25″

• Temperature Range: 34°F – 44°F

• Clutch Cycle Range: 8°F

• Mount Hole Spacing: 2 3⁄16″

• Mounting Style: Flange base

• Type: Fixed (Preset)

• Application: IHC-Navistar HVAC systems

Cross Reference Numbers

• Texas Truck AC: 850-9182

• AirSource (MEI): 1333

• Alliance: ABP N83 323020, ABP N83 323065, ABP N83 323100

• Bergstrom: 1000021516, 650195, 651187

• Climatech: BD1055

• CoolPoint: 850-9188

• CoolStar (MEI): 932-1136

• Euclid Industries: E-807000, E-807037, E-807038, E-807055

• Everco HD: 901268

• Kysor: 2313002, 2313003

• Kysor (Old): 404440

• Motivair: 44574

• Murray: 207510

• Navistar International: 1664248-C1, 1676655-C1, 1699953-C1, 2607881-C1

• NDNS: 1664248C1, 1676655C1, 1699953C1, 2607881C1, ABPN83323065, ABPN83323100

• Omega: 32-20912

• Primatech: PTAC1333

• RoadForce: RF5351000360, RF7156501872

• TRP / Climatech: BD10550, BD14900, BD15300

• Truck Air (MEI): 11-0860

• TruckAC+: T6715

• TTA/C: 13-4203

• Volvo: 3949135

Interchange Numbers

1-3613, 11-0860, 11-0861, 1333, 1350, 1664248C1, 1676655C1, 1699953C1, 207510, 2213012, 2213013, 2313002, 2313003, 232-8432, 2607881C1, 32-20912, 35855, 3949135, 404438, 404440, 4379-RD582570, 4379-RD582570P, 650195, 650417, 650417BSM, 71R3300, 850-9182, 932-1136, ABP N83 323020, ABP N83 323065, ABP N83 323130, BD10550, BD14900, BD15300, RD582570P, RDH RD5 8257 0, RDHRD582570P, RDT71R3300, SWI4436
