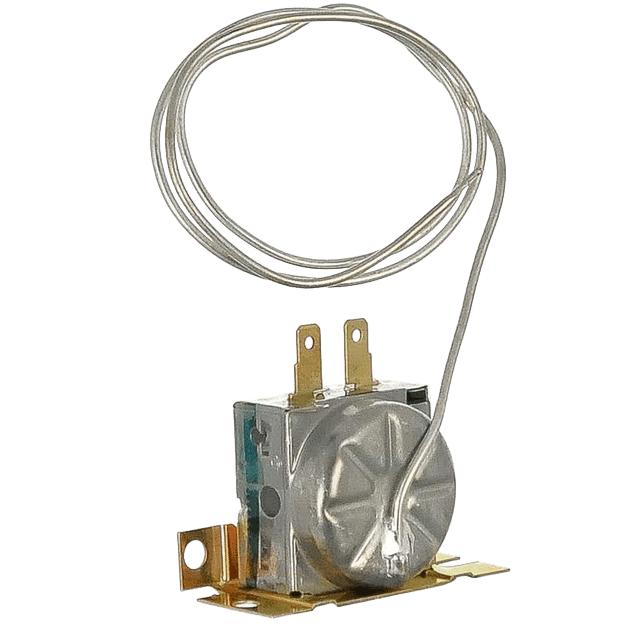

The Red Dot 71R2200 Preset Thermostatic Switch is a fixed-setting mechanical thermostat designed for consistent temperature control in mobile HVAC and heavy-duty vehicle systems. Featuring a 32-inch capillary tube and a preset operating range of 31°F to 39°F, this thermostat delivers dependable on/off control without user adjustment.
Built with a flange base (with optional side-mount capability), the 71R2200 is commonly used in Volvo / White GMC applications and other installations where a stable, factory-set temperature range is required.
-
Part Type: Preset Thermostatic Switch
-
Red Dot Part No.: 71R2200
-
Red Dot Factory Part No.: RD-5-11031-0P
-
Application: Volvo / White GMC Applications
-
Control Type: Fixed (Preset)
-
Capillary Length: 32″
-
Temperature Range: 31°F – 39°F
-
Mounting Hole Spacing: 2-1/8″
-
Mounting Style: Flange base (optional side mount)
-
Description: Thermostat – 32″ Fixed
Features & Benefits
-
Fixed temperature setting eliminates adjustment errors
-
32″ capillary for flexible sensing and installation
-
Consistent cycling within a narrow temperature band
-
Flange mount supports secure installation
-
Proven design for mobile HVAC and heavy-duty vehicles
Cross Reference Numbers
AirSource / MEI: 1332
Alliance: ABP N83 323010
Bergstrom: 525335
Eaton: 9533N357, 9533N417
Climatech: BD1080
Freightliner: A22-23640-000
IHC-Navistar: 1691722C91
Mack: 4379-RD54531-24, 7979-404157
PACCAR: 322005BSM, 589490BSM
Volvo: 3949291
Red Dot (Aftermarket): 71R2200
Red Dot (Factory): RD-5-11031-0P
Interchange Numbers
1-1833, 1330, 2399003, 2399021, 247-3594, 313010, 32-20913, 323030, 398936R91, 404002, 43-0197, 4379-RD5110310P, 525335, 60054-4401, 6K9614, 71R2200, 850-9229, 925602, 932-1132, 9533N376, A45-1069, ABP N83 323228, BD10050, BSM323020, E-807001, RDHRD5110310P, RDT71R2200, SWI4432, ZGG11833
