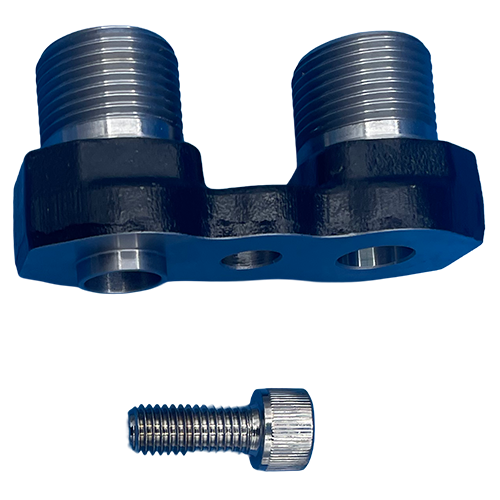

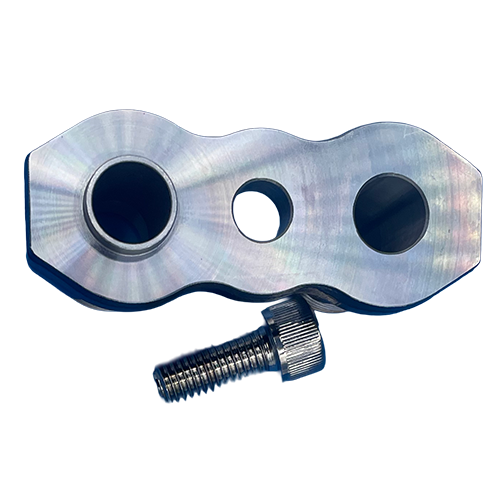

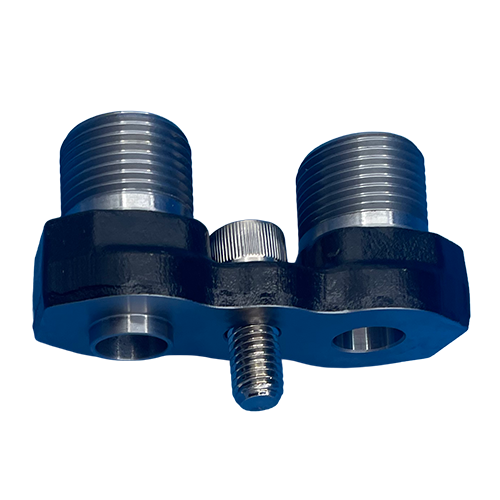

BT5-5204 Sanden FLX7 Horizontal Tube-O Manifold

The BT5-5204 Sanden FLX7 Horizontal Tube-O Manifold is a compressor manifold for compatible Sanden compressor applications.
It is designed for use with Sanden FLX7 compressors only.

This manifold uses a horizontal Tube-O 1″-14 fitting style.
It is made from cast iron and mounts to compatible Sanden compressor bodies.

As a result, it is a useful replacement manifold when the compressor and hose connection style match the required FLX7 configuration.

Function and Performance

A compressor manifold connects the compressor to the A/C hose connections.
It provides the refrigerant port interface between the compressor body and the system plumbing.

The BT5-5204 manifold uses a horizontal Tube-O-ring 1″-14 connection style.
This fitting style must match the compressor head and hose layout.

Because manifold fitment depends on compressor type, fitting style, port orientation, and mounting design, compare your current manifold before ordering.

Durability and Design

The BT5-5204 is listed as a Sanden horizontal Tube-O manifold.
It is built from cast iron for compatible compressor service applications.

This part is specifically noted for Sanden FLX7 compressor use only.
Therefore, it should not be treated as a universal Sanden manifold.

Always verify compressor model, manifold mounting, fitting thread, and hose routing before installation.

Installation

Install this manifold according to the compressor or A/C system service procedure.
Before installation, confirm the compressor type, port layout, fitting style, and O-ring requirements.

Replace seals or O-rings as needed during installation.
Then leak test the A/C system after service.

Do not install this manifold on a compressor model that does not match the Sanden FLX7 requirement.

Product Details

• BTRAC Part Number: BT5-5204
• Description: Sanden horizontal Tube-O manifold
• Product Name: Compressor manifold
• Compressor Type: FLX7 manifold
• Application: Sanden compressor parts
• Compatibility Note: For use with Sanden FLX7 compressor only
• Fitting Style: Horizontal Tube-O 1″-14
• Fitting Angle / Type: Horizontal Tube-O-ring 1″-14
• Material: Cast iron
• Mounting Type: Sanden compressor only
• UPC: 666501065094
• Fitment Note: Confirm compressor model, fitting style, and port orientation before ordering

OEM / Part Numbers

• MEI Part Number: 5204
• Sanden: 4869-1340
• Sanden: 4869-6340
• Truck Air: 03-6514
• Alliance: 305495
• Alliance: ABP N83 305495
• CoolStar: 382-1004
• Four Seasons: 12209
• Kysor: 1401329
• Red Dot Aftermarket: 79R89325
• Truck Air – MEI: 44634

Cross Reference

This part may cross reference with:

• Texas Truck AC: 300-5453
• AirSource – MEI: 5204
• Alliance: ABP N83 305495
• CoolCab: 917204
• CoolStar – MEI: 382-1004
• Fleetrite: ZGG706046
• Four Seasons: 12209
• Kysor: 1401329
• NDNS: ABPN83305495
• Omega: 21-10211
• Omega: 21-10211-AM
• Primatech: PTAC5204
• Red Dot – Aftermarket: 79R89325
• RoadForce: RF4535403261
• Sanden: 4869-1340
• Sanden: 4869-6340
• Truck Air – MEI: 44634
• TruckAC+: T5544
• TTA/C: 54-9203

Interchange Numbers

This part may also interchange with:

• 1401329
• 240-9702
• 404457
• 4379-RD5108840
• 4379-RD5108840P
• 75R89325
• 79R89325
• ABP N83 305495
• RDHRD5108840P
• RDT75R89325
• 4869-1340
• 4869-6340
• 5204
• 382-1004
• 12209
• T5544

Need Help?

Not sure if BT5-5204 is the correct compressor manifold for your Sanden compressor?
Contact BTRAC with your compressor model, manifold part number, port photos, fitting style, and hose routing details. Our team can help confirm fitment or find the right option.
