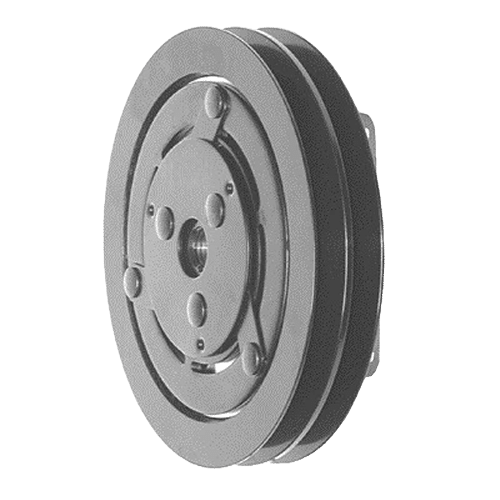

The 75R1302 Compressor Clutch Assembly is a 12V replacement clutch for compatible T/CCI compressor applications.
It is listed for T/CCI compressor parts and is associated with 210 Series compressor applications.
This clutch uses a 2-groove pulley for two 1/2 in. belts.
It also uses a keyed shaft hub and a 2-wire Metri-Pack plug.
As a result, it is a useful service replacement for heavy-duty mobile A/C systems that use the correct T/CCI compressor, pulley, belt, hub, and wiring configuration.
Function and Performance
A compressor clutch engages and disengages the A/C compressor.
When the clutch is energized, the pulley drives the compressor through the shaft hub.
The 75R1302 is a 12V compressor clutch assembly.
It is listed with 2 grooves, a 6 in. diameter, and a 2-wire Metri-Pack lead.
The supplied data also lists diode protection.
Because compressor clutch fitment depends on voltage, pulley diameter, belt groove count, groove width, shaft type, wire connector, and compressor model, compare the original clutch before ordering.
Durability and Design
The 75R1302 is designed for compatible T/CCI compressor applications.
It uses a 2-groove pulley with 1/2 in. groove width.
The supplied data lists a keyed shaft hub bore.
It also identifies the clutch with A2 style information and a 152.4 mm / 6 in. diameter.
This clutch should only be used where the compressor, belt layout, hub bore, and electrical connection match the original part.
Installation
Install this clutch according to the compressor or A/C system service procedure.
Before installation, confirm the compressor model, shaft type, pulley diameter, belt groove count, belt width, lead wire style, and voltage.
Check the pulley alignment and clutch air gap during installation.
Then verify the electrical connector and diode-protected circuit before applying power.
After installation, test clutch engagement and belt tracking before returning the A/C system to service.
Product Details
- BTRAC / Product Number: 75R1302
- Description: CCI clutch, 2 groove, 12V, 2 wire
- Product Name: Compressor clutch assembly
- Application: T/CCI compressor parts
- Compressor Application Reference: 210 Series
- Voltage: 12V
- Number of Grooves: 2
- Belt Type: Two 1/2 in. belts
- Groove Width: 1/2 in.
- Diameter: 6 in. / 152.4 mm
- A-B Distance: 1-11/16 in. x 2-5/16 in.
- Wire Type: 2-wire Metri-Pack plug
- Shaft Type: Keyed shaft
- Hub Bore: Key
- Diode Protection: With diode
- Note: 520566
- Fitment Note: Confirm compressor model, shaft type, pulley diameter, belt groove count, groove width, lead wire, connector, voltage, and A-B distance before ordering.
OEM / Part Numbers
- MEI Part Number: 5145
- AirSource – MEI: 5145
- Alliance: 303063
- Alliance: 303063T
- Alliance: ABP N83 303063
- Alliance: ABP N83 303063T
- Alliance: ABP N83 303322
- CoolStar: 200-1110
- DTAC: 01-22582
- Hi-Lite Industries: 14437
- Kysor: 1380002
- Kysor: 1399007
- Kysor: 1402011
- Kysor: 402186
- Kysor: 402196
- Murray: 274447
- Navistar: 2016366C93
- Navistar: 2016366-C93
- Navistar: 2592000C91
- Navistar: 2592000-C91
- Ogura: 520566
- Ogura: 522582
- Ogura: MAE-06A210
- T/CCI / York: 024-25238
- Truck Air: 02-3412
- Volvo: 3093418
- Volvo: 61103-0033
- Red Dot Aftermarket: 75R1302
- Red Dot Factory: RD-5-9456-0
Cross Reference
This part may cross reference with:
- Texas Truck AC: 250-2869
- AirSource – MEI: 5145
- Alliance: ABP N83 303063
- Alliance: ABP N83 303322
- Bergstrom: 1000139266
- Bergstrom: 526046
- Bergstrom: 650868
- Climatech: KA1525
- CoolCab: 948447
- CoolStar – MEI: 200-1110
- DTAC: 01-22582
- Euclid Ind: E-802550
- Euclid Ind: E-802596
- Fleetrite: ZGG19776
- Freightliner: BSM303063
- Kysor: 1380002
- Kysor: 1399007
- Kysor: 1402011
- Kysor – Old: 402196
- Mack: IMXA3291
- Murray: 274447
- Navistar International: 2016366-C93
- NDNS: 2016366C93
- NDNS: ABPN83303063
- NDNS: ABPN83303322
- Ogura: 520566
- Ogura: 522582
- Ogura: MAE-06A210
- Omega: 22-11295
- Omega: 22-11295-AM
- Paccar: K332-59-5
- Pitts HiLite: 14437
- Primatech: PTAC5145
- Red Dot – Aftermarket: 75R1302
- Red Dot – Factory: RD-5-9456-0
- Road Choice: ACL2054
- RoadForce: RF3416508335
- RoadForce: RF9021000146
- T/CCI: 024-25238
- TRP / Climatech: KA15250
- Truck Air – MEI: 44604
- TruckAC+: T6664
- TTA/C: 51-3105
- Volvo: 3093418
- Volvo: 61103-0033
Interchange Numbers
This part may also interchange with:
- 02-3412
- 024-25238
- 1380002
- 1399007
- 200-1110
- 2016366C93
- 22-11295
- 232-9053
- 2425238
- 250-2869
- 2592000C91
- 2592001C91
- 30932420
- 3093418
- 3093420
- 402186
- 4379-RD594560
- 4379-RD594560P
- 47926
- 5145
- 520566
- 522582
- 61103-0033
- 650868
- 75R1302
- ABP N83 303063
- ABP N83 303063T
- ABP N83 303322
- ACL2054
- BSM303063
- CFC024-25238
- IMXA3291
- K332-59-5
- KA15250
- MA69CCI
- MAE-06A
- MAE-06A210
- MAE06A
- RDHRD594560P
- RDT75R1302
- ZGG19776
Important Fitment Note
The 75R1302 is listed as a 12V, 2-wire, 2-groove compressor clutch assembly for compatible T/CCI compressor applications.
Before ordering, confirm that your compressor uses a keyed shaft, two 1/2 in. belts, a 6 in. pulley, and the correct 2-wire Metri-Pack connector.
Do not assume compressor clutches are interchangeable by voltage alone.
Pulley offset, A-B distance, shaft type, groove count, belt width, connector style, and clutch diameter must match.
Need Help?
Not sure if 75R1302 is the correct compressor clutch for your A/C system?
Contact BTRAC with your compressor model, clutch part number, pulley diameter, groove count, shaft type, connector photos, and equipment model. Our team can help confirm fitment or find the right clutch option.
