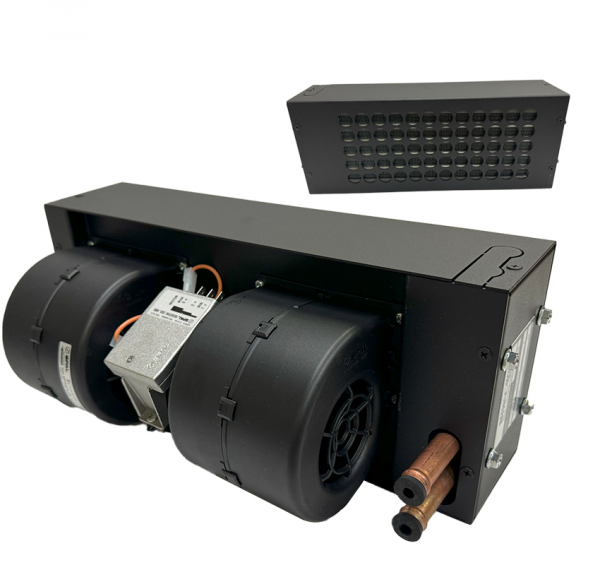

The BU-1000-0-24 Cab Heater is built for mobile equipment that needs strong heat output in a compact 24V package.
It delivers 35,000 BTU/hr of heat with 430 CFM airflow, making it a practical option for trucks, agricultural equipment, construction machines, forestry equipment, and specialty vehicles.
This version uses a rear-exit airflow layout and a compact black powder-coated cabinet.
It can fit under seats, along bulkheads, or near custom mounting locations.
To match different installation needs, this product is set up with selectable options. Choose the version that best fits your cab layout: feet, bezel, or plenum.
Configuration Options
Select the option that matches your installation:
- Feet: Helps support floor or bracket mounting.
- Bezel: Provides a cleaner finished opening where the heater outlet passes through a panel.
- Plenum: Helps direct outlet air into ducting or a specific airflow path.
Choose the configuration based on mounting location, outlet style, airflow direction, and cab layout.
Performance and Design
The BU-1000-0-24 uses a 24V, 3-speed blower to move warm air through the cab.
Its rear-exit design works well when the outlet needs to feed a plenum, duct, or direct air path.
The heater is rated at approximately 7 amps at 27.2 VDC.
The wiring callouts include MIN+, MOTOR+, and MAX+ leads for the 3-speed blower.
Installation
Before ordering, confirm available space, heater hose routing, electrical requirements, and the outlet configuration you need.
This heater uses 5/8 in. heater hose connections.
If using the no-mount shell or a custom installation, verify the mounting pattern before installation. The supplied mounting reference includes four 1/4-20 threaded holes on a 2.75 in. x 2.75 in. pattern.
Product Details
- BTRAC / Product Number: BU-1000-0-24
- Product Type: 24V cab heater
- Airflow Layout: Rear exit
- Heat Output: 35,000 BTU/hr
- Airflow: 430 CFM
- Blower Speeds: 3 speed
- Voltage: 24V
- Electrical Draw: Approximately 7 amps at 27.2 VDC
- Heater Hose Connections: 5/8 in. hose, two connections
- Cabinet Finish: Black powder coat
- Approximate Dimensions: 16.02 in. L x 6.45 in. H x 5.68 in. D
- Mounting Reference: Four 1/4-20 threaded holes on a 2.75 in. x 2.75 in. pattern
- Selectable Options: Feet, bezel, or plenum
- Fitment Note: Confirm voltage, mounting location, hose routing, outlet style, wiring, and selected configuration before ordering.
Cross Reference and Interchange Numbers
This part may cross reference or interchange with:
- 10-9841
- 292-1304
- 4379-R295024P
- R-295-0-24P
- RDH R295 0 24
- RDHR295024P
Application Notes
The BU-1000-0-24 is commonly used in compact cab heater installations that require strong heat output, 24V electrical operation, and flexible mounting.
It may be used in applications such as:
- Heavy trucks
- Agricultural equipment
- Construction equipment
- Forestry equipment
- Specialty equipment
- Custom cab heater installations
Applications should be confirmed by available space, voltage, heater hose routing, airflow direction, and the selected mounting or outlet option.
Important Fitment Note
Before ordering, choose the correct configuration for your installation.
The feet, bezel, and plenum options serve different mounting and airflow needs.
Also confirm that your equipment uses a 24V electrical system and can support the heater’s airflow, coolant, and wiring requirements.
Need Help?
Not sure which BU-1000-0-24 configuration is right for your cab heater installation?
Contact BTRAC with your equipment model, mounting location, cab photos, hose routing, outlet location, and voltage. Our team can help confirm fitment or find the right heater option.
