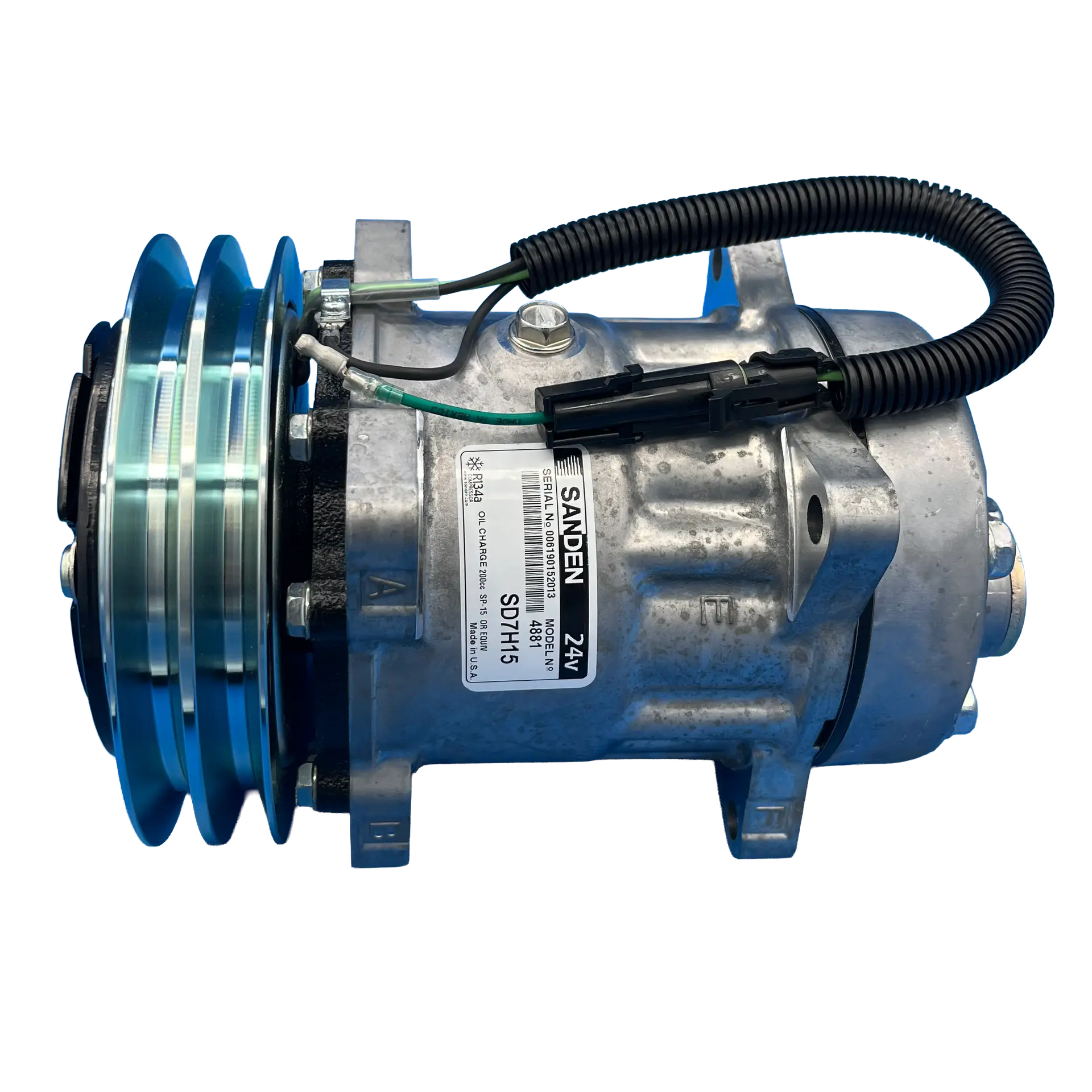

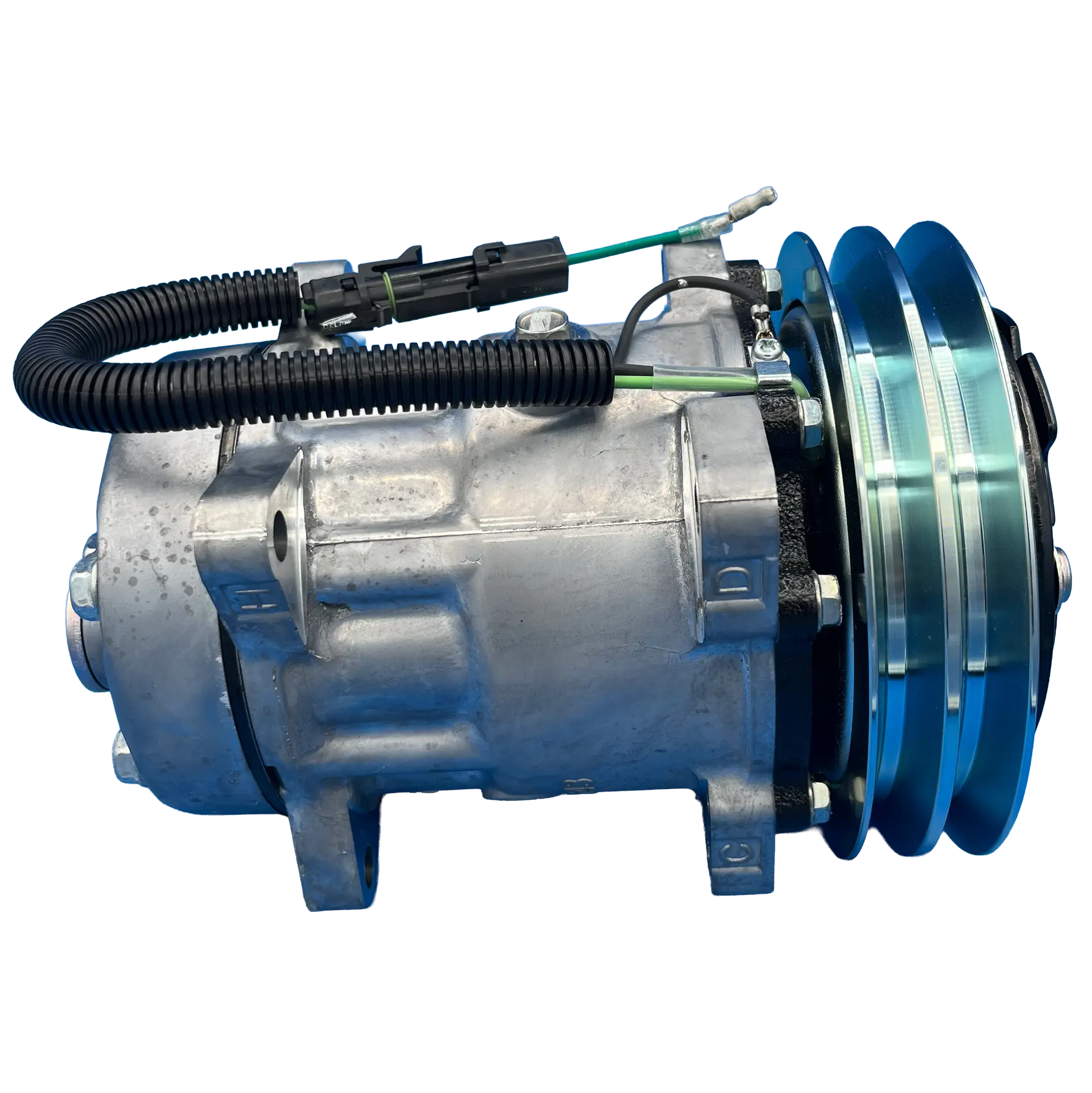

BT5-4881 Compressor – SD7H15HD 24V R134a, 152mm 2-Groove Clutch, GV Head

Description

Product Description

The BT5-4881 compressor is built on the proven Sanden SD7H15HD platform, making it a reliable solution for agricultural and off-road equipment that requires dual-belt drive capability and rugged mounting. Its 7-cylinder design and 9.5 cu. in. displacement provide smooth operation and consistent refrigerant flow during continuous-duty operation.

Additionally, this unit is factory-charged with 200cc of PAG100 oil and configured for R134a refrigerant. The GV head with a rear universal O-ring FLX-7 pad supports flexible hose routing across multiple equipment layouts. A 152mm 2-groove clutch, designed for two 1/2″ belts, ensures stable power transfer in demanding farm and off-road applications.

Because of its ear-mount (8 long) configuration, clockwise rotation, and integrated diode protection, the BT5-4881 is a trusted replacement option across a wide range of agricultural platforms.

---

Key Features

• Heavy-duty Sanden SD7H15HD compressor platform

• 24V operation for farm and off-road equipment

• 7-cylinder design for smooth, reliable performance

• GV head with rear universal FLX-7 O-ring pad fittings

• Large 152mm 2-groove clutch for dual 1/2″ belts

• Ear-mount (8 long) configuration

• Integrated diode protection

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-4881

• Product Name: Compressor

• Compressor Family: SD7H15

• Model: SD7H15HD

• Application: Farm & Off-Road Applications

• Refrigerant Type: R134a

• Voltage: 24V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Ear 8 Long

• Shaft Type: Long Key Shaft

• Head Type: GV

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

• Fitting Port Position: Horizontal

• Clutch Diameter: 152mm

• Number of Grooves: 2

• Belt Type: Two 1/2″ Belts

• Factory Oil Charge: 200cc

• Oil Type: PAG100

• Wire Type: 1-Wire Male Packard #12015791 with Diode & Bullet Jumper

• Diode Protection: Yes

---

Service & Replacement Components

• Replacement Clutch Assembly: 50404

• Replacement Head Assembly: 50003

---

Interchange Numbers

Alliance

• 304114

• 304224

CoolStar

• 330-1725

Kysor

• 1410055

Sanden

• 4881

• 4882

Truck Air

• 03-3717

Additional Industry & Aftermarket References

• 1401223

• 247-3511

• 300-5518

• 402321

• 4379-RD5110100P

• 4532

• 5202

• 5294

• 6679

• 75R89484

• ABP N83 304114

• ACC2725

• RDHRD5110100P

• RDT75R89484

• ZGG705161

---

Applications

• Agricultural equipment

• Construction and off-road machinery

• 24-volt mobile HVAC systems requiring dual-belt SD7H15HD compressors
