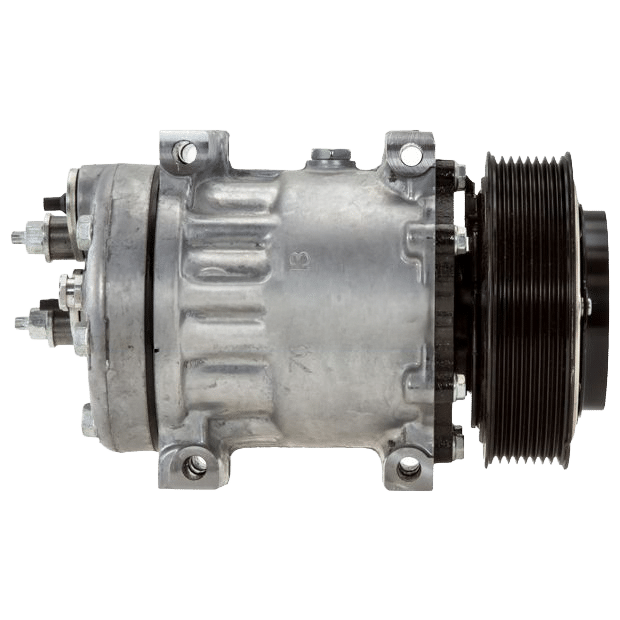

The BT5-4313 compressor is built on the Sanden 7H15SHD platform, a severe-duty variant engineered for sustained operation in heavy-load mobile HVAC systems.
This unit operates on 12 volts, uses R134a refrigerant, and features a PV8 (8-groove) serpentine clutch with a 130mm diameter, providing reliable torque transfer under continuous belt load. The horizontal pad head configuration supports standard pad-style hose manifolds commonly used in PACCAR and other heavy-duty truck platforms.
A direct-short mount, 2-wire MP electrical lead, and compatibility with multiple PACCAR OE numbers make this compressor a versatile replacement option across several Sanden and aftermarket references.
Key Features
-
Sanden 7H15SHD severe-duty compressor platform
-
12V operation with R134a refrigerant
-
130mm 8-groove (PV8) serpentine clutch
-
Horizontal pad-style head configuration
-
Direct-short mounting for compact installations
-
OE-style electrical connection
Essential Specifications
-
BTRAC SKU: BT5-4313
-
Compressor Type: 7H15SHD
-
Voltage: 12V
-
Refrigerant Type: R134a
-
Mounting Type: Direct Short
-
Clutch Diameter: 130mm
-
Number of Grooves: 8 (PV8)
-
Head / Back Head: 4577
-
Fitting Angle / Type: Horizontal Pad
-
Fitting Size: Pad
-
Lead Wire: 2-Wire MP
OEM, Interchange & Cross-Reference Numbers
Primary Interchange Numbers
-
1401532
-
20-04148
-
20-04148-AM
-
330-2399
-
4006
-
4146
-
4148
-
4313
-
4379-RD5164910P
-
54148
-
59-8428AP
-
59-8428HD
-
75R91202
-
ABP N83 304928
-
F69-1014
-
F69-1015-141
-
F69-1017
-
F69-1018
-
RDT75R91202
Cross References
-
Sanden: 4006, 4146, 4148, 4313
-
PACCAR: F69-1014, F69-1015-141, F69-1017, F69-1018, Y5501001
-
MEI / AirSource: 54148
-
Truck Air: 03-1014
-
Texas Truck AC: 300-4328
-
Primatech: PTAC54148
-
Red Dot (Aftermarket): 75R91202
-
Red Dot (Factory): RD-5-16491-0P
-
TruckAC+: T4707
Applications
-
On-highway and vocational trucks
-
PACCAR platforms (Peterbilt / Kenworth)
-
Heavy-duty mobile HVAC systems
-
12-volt R134a air conditioning
