BT0-7070 – EZ-Clip Straight Splicer A/C Hose Fitting #12 with R134a Port

The BTRAC BT0-7070 EZ-Clip Straight Splicer Refrigerant Fitting is designed for mobile air conditioning systems that require an in-line hose connection with an integrated R134a low-side service port. This fitting joins #12 EZ-Clip refrigerant hose while providing convenient access for system charging, diagnostics, and maintenance.

Manufactured from durable steel, the BT0-7070 is suitable for heavy-duty trucks, transport refrigeration units, off-road equipment, and other mobile HVAC applications. Each fitting is supplied as a complete EZ-Clip fitting kit, including the attachment cages, clips, and O-rings required for proper assembly and long-term sealing performance.

Use with Aeroquip GH134 EZ-Clip refrigerant hose only.

Product Specifications

• BTRAC Part Number: BT0-7070

• MEI / Air Source Part Number: 4581EZ

• Red Dot Part Number: 70R8272

• Red Dot Factory Number: RD-5-10705-1P

• Part Type: EZ-Clip Splicer Hose Fitting with Service Port

• Application: EZ-Clip Refrigerant Hose Systems

• Configuration: Straight Splicer (In-Line)

• Fitting Style: EZ-Clip Type

• Material: Steel

• Hose Size: #12 × #12

• Port Type: 13 mm R134a – Low Side

• Thread Size: N/A (Splicer)

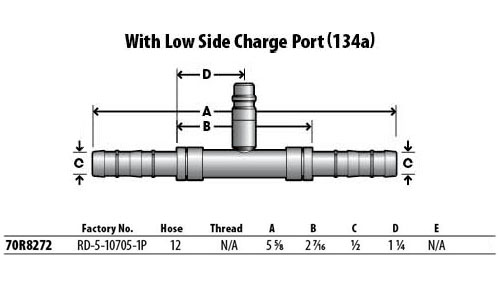

• Overall Length (OAL): 5.60 in.

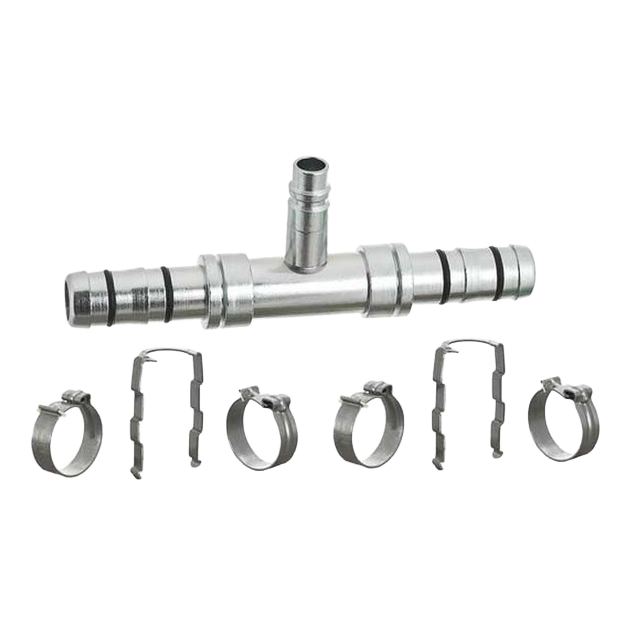

• Included Hardware: Cages, Clips, and O-Rings Included

• Hose Compatibility: Aeroquip GH134 EZ-Clip Hose Only

Interchange / Cross-Reference Information

• Texas Truck AC: 550-EZ5013-6

• Aeroquip: FJ5986-1212S

• AirSource / MEI: 4581EZ

• Alliance: ABP N83 310722

• Bergstrom: 550723

• CoolStar / MEI: 615-2424

• Kysor: 2630907

• Kysor (Old): 409193

• Mobile Climate Control: 40-64115-51

• NDNS: ABPN83310722

• Omega: 35-EZ6104-3

• Primatech: PTAC4581EZ

• Truck Air / MEI: 08-3424E

• TruckAC+: T1366

• TTA/C: 40-EZ6104-3

• Volvo: 85100337

Applications & Notes

• Straight in-line splicer for #12 EZ-Clip hose

• Integrated 13 mm R134a low-side service port

• Ideal for hose repair, system extension, or service-port addition

• No threaded hose-end connections required

• Supplied as a complete EZ-Clip fitting kit

• Use only with Aeroquip GH134 EZ-Clip refrigerant hose

• Follow EZ-Clip installation procedures for proper sealing

Finish Note:
Finish may vary by production batch.
