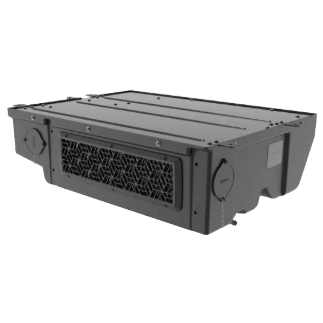

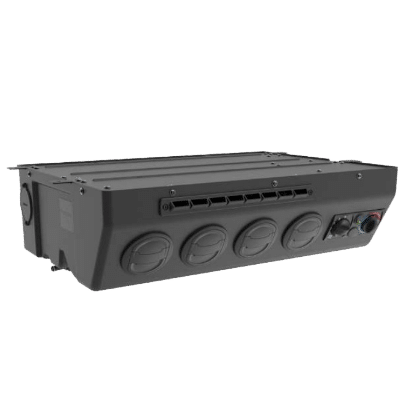

The B-9700 Siroco Sky HVAC Headliner is built for installations that need both heating and air conditioning in a compact overhead package. Designed for horizontal installation, this unit mounts in the headliner area to save cabin space while still delivering reliable climate control performance.
Because it combines heat and A/C in one unit, the B-9700 is well suited for equipment cabs and specialty vehicles that operate across changing weather conditions. The unit includes 3-speed ventilation, a built-in anti-freezing thermostat, and an integrated 30 PPI air filter to support dependable airflow and evaporator protection.
This model uses Ø16 mm water hose connections for the heating side and is compatible with R134a and R1234yf refrigerants. It also features an O-ring expansion valve connection, includes electrical connectors, and comes supplied with 4 fixing brackets and 4 screws for installation.
Key Features
-
BTRAC part number: B-9700
-
Siroco interchange number: 0350 0001
-
Siroco model: Sky HVAC Headliner
-
12V headliner HVAC unit
-
Heating and air conditioning in one unit
-
3-speed ventilation
-
Horizontal installation
-
Ø16 mm water hose connections
-
Compatible with R134a and R1234yf
-
Built-in anti-freezing thermostat
-
Integrated 30 PPI air filter
-
ABS housing
-
Electrical connectors included
-
Supplied with 4 fixing brackets and 4 screws
-
O-ring expansion valve connection
-
385 m³/h nominal airflow
-
6.1 kW heating capacity
-
5 kW cooling capacity
-
130 W electrical power
-
11 kg weight
Specifications
| Feature | Details |
|---|---|
| Manufacturer | Siroco |
| BTRAC Part Number | B-9700 |
| Siroco Interchange Number | 0350 0001 |
| Model | Sky HVAC Headliner |
| Voltage | 12V |
| Unit Type | Headliner HVAC unit |
| Installation | Horizontal |
| Ventilation Speeds | 3 |
| Housing Material | ABS |
| Refrigerant Compatibility | R134a, R1234yf |
| Water Hose Diameter | Ø16 mm |
| Electrical Power | 130 W |
| Weight | 11 kg |
| Nominal Air Flow | 385 m³/h |
| Heating Capacity | 6.1 kW |
| Cooling Capacity | 5 kW |
| Filter | Integrated 30 PPI air filter |
| Thermostat | Integrated anti-freezing thermostat |
| Expansion Valve Connection | O-ring |
| Mounting Hardware | 4 fixing brackets + 4 screws included |
| Electrical Connectors | Included |
Fitment / Application Notes
The B-9700 Siroco Sky HVAC Headliner is intended for 12V mobile cab heating and cooling systems and is best matched to applications requiring:
-
overhead or headliner-style HVAC installation
-
combined heat and air conditioning
-
Ø16 mm heater hose connections
-
compact climate control for enclosed mobile cabs
-
compatibility with R134a or R1234yf refrigerant systems
