74R3107 Inline Receiver Drier with Moisture Indicator – High-Capacity Mobile A/C

The BTRAC 74R3107 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps prevent corrosion, supports stable cooling, and extends compressor life during demanding operation.

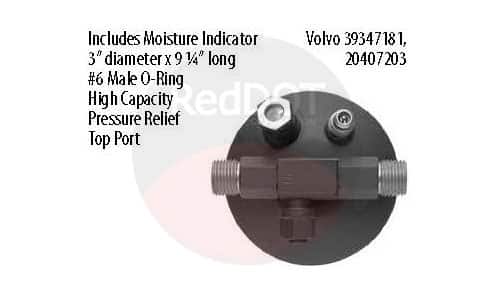

This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows direct integration into common mobile A/C hose layouts. In addition, the built-in moisture indicator provides a fast visual check of system condition, so technicians can confirm desiccant performance at a glance.

The cylindrical body measures 3 inches in diameter and 9-1/4 inches in overall length. Therefore, it provides increased desiccant capacity for systems with higher refrigerant volume or longer hose runs. At the same time, the top-mounted pressure-relief feature adds protection during abnormal pressure events caused by high ambient temperatures or heavy load cycles.

Based on confirmed OEM markings shown on the image and validated interchange usage, this receiver drier is commonly used on Volvo® truck platforms. Because these vehicles often operate under long duty cycles, the 74R3107 delivers dependable moisture control and consistent A/C performance.

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• High-capacity design for improved moisture control

• #6 male O-ring inlet and outlet

• 3″ diameter × 9-1/4″ length cylindrical body

• Integrated moisture indicator

• Top pressure-relief port

• Compatible with R-134a refrigerant

• Commonly used on Volvo® trucks

Specifications

• Receiver Type: Inline receiver drier

• Capacity: High-capacity

• Body Diameter: 3 inches

• Overall Length: 9-1/4 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Moisture Indicator: Included

• Pressure Relief: Top-mounted

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R3107 receiver drier is commonly used in:

• Volvo® on-highway trucks

• Fleet and vocational vehicles requiring moisture-indicator driers

• Mobile HVAC systems with high refrigerant capacity

• Heavy-duty A/C applications operating under extended duty cycles

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

Interchange Numbers

088214-00, 088214-03, 088485-01, 088491-01, 1918002, 1918005, 1918008, 20447319, 210RD334, 25169273, 292-1133, 338332M2, 37-13559, 3712495M1, 402814, 4379-RD5115330P, 540116, 540122, 61510-0008, 61510-006, 7159, 74R3107, 800-2095, 8025531, 803-331, 803-3311, 8086753, 825-4108, 85107848, ABP N83 319395, ABP N83 319470, ABP N83 319920, JA12750, JA20500, RDHRD5115330P, RDT74R3107, ZGG16311, ZGG712005
