The BTRAC 74R2706 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps prevent corrosion, supports steady cooling, and extends compressor life in demanding operating environments.
This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows direct integration into common mobile A/C hose layouts. In addition, the top-mounted pressure-relief feature helps protect the system during abnormal pressure events, which can occur during heavy load or high-ambient operation.

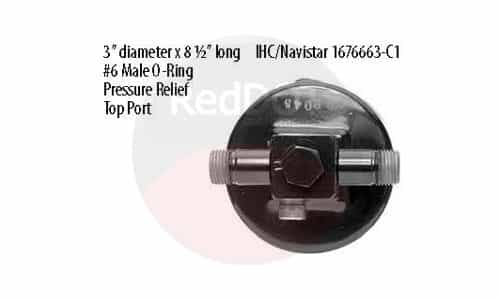

The cylindrical body measures 3 inches in diameter and 8-1/2 inches in overall length. Therefore, it provides ample desiccant capacity while maintaining a compact form that fits well in crowded engine compartments. At the same time, the inline layout supports straightforward service and replacement.
Based on confirmed OEM markings shown on the image and validated interchange usage, this receiver drier is commonly used on International® / Navistar® truck platforms. Because these vehicles often operate under long duty cycles, the 74R2706 delivers reliable moisture control and consistent A/C performance.
Key Features
-
Heavy-duty inline receiver drier for mobile A/C systems
-
#6 male O-ring inlet and outlet
-
Top pressure-relief port for added system protection
-
3″ diameter × 8-1/2″ length cylindrical body
-
Compatible with R-134a refrigerant
-
Commonly used on International® / Navistar® trucks
Specifications
-
Receiver Type: Inline receiver drier
-
Body Diameter: 3 inches
-
Overall Length: 8-1/2 inches
-
Inlet Connection: #6 male O-ring
-
Outlet Connection: #6 male O-ring
-
Pressure Relief: Top-mounted
-
Refrigerant Compatibility: R-134a
-
Application Type: Mobile / heavy-duty A/C systems
OEM Application Notes
Based on confirmed configuration and validated interchange positioning, the 74R2706 receiver drier is commonly used in:
-
International® / Navistar® on-highway trucks
-
Fleet and vocational vehicles using inline receiver driers
-
Mobile HVAC systems requiring pressure-relief protection
-
Heavy-duty A/C applications with extended operating hours
Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.
Interchange Numbers
07-0600, 07-0600A, 07-1002, 1-1831, 1676663C1, 1696663C1, 18-01800, 1999203, 208219, 208385, 232-8940, 37-13595, 3918258, 3949132, 406160, 4379-RD549550, 4379-RD549550P, 540111, 544983C1, 544983R91, 712-045, 7141, 74R2706, 800-2066, 800-440, 825-4106, 83700, 920074, ABP N83 319110, ABP N83 319208, AM82214, E-804092, E-804163, JA12350, JA12400, RD12066, RDHRD549550P, RDT74R2706, ZGG11831, ZGG712049
