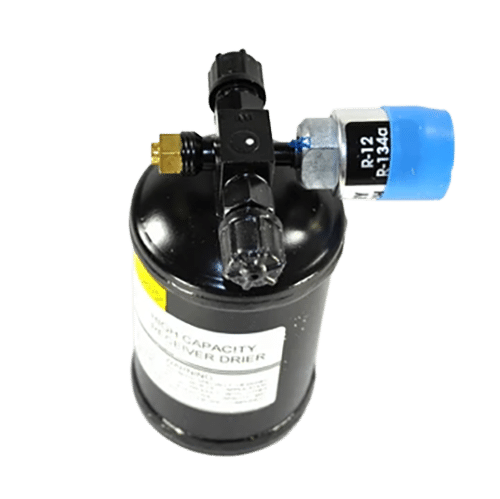

74R2586 Inline Receiver Drier with Binary™ Switch – High-Capacity Mobile A/C

The BTRAC 74R2586 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps reduce internal corrosion, maintain steady cooling, and extend compressor life during demanding operation.

This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows clean integration into common mobile A/C hose layouts. In addition, the unit includes a factory-installed Binary™ switch, which supports basic pressure-based compressor control by opening or closing the circuit under defined operating conditions.

The compact cylindrical body measures 3 inches in diameter and 6 inches in overall length. Therefore, it fits well in space-limited engine compartments while still providing high-capacity desiccant performance. At the same time, the side-mounted pressure-relief feature adds an extra layer of protection during abnormal pressure events.

Based on confirmed information shown on the image and validated interchange usage, this receiver drier is commonly used on John Deere® equipment. Because off-highway machines often operate under long duty cycles and harsh conditions, the 74R2586 delivers reliable moisture control and dependable pressure management.

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• High-capacity design for improved moisture control

• #6 male O-ring inlet and outlet

• 3″ diameter × 6″ length compact cylindrical body

• Includes Binary™ switch

• Side pressure-relief port

• Compatible with R-134a refrigerant

• Commonly used on John Deere® equipment

Specifications

• Receiver Type: Inline receiver drier

• Capacity: High-capacity

• Body Diameter: 3 inches

• Overall Length: 6 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Switch: Binary™ switch included

• Pressure Relief: Side-mounted

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R2586 receiver drier is commonly used in:

• John Deere® agricultural and construction equipment

• Off-highway machines requiring integrated Binary™ switch control

• Mobile HVAC systems with compact packaging requirements

• Heavy-duty A/C applications operating under extended duty cycles

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

Interchange Numbers

07-2613, 07-2613A, 1999032, 232-8932, 3918255, 402533, 4379-RD547270, 4379-RD547270P, 61-3316, 7127, 74R2586, 800-2034, ABP N83 319044, AT254496, E-804102, JA11750, JA16050, RD12034, RDHRD547270P, RDT74R2586
