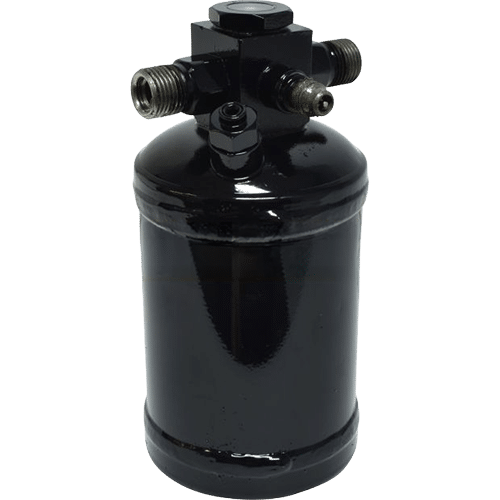

74R2537 Receiver Drier with Schrader Port – High-Capacity Mobile A/C

The BTRAC 74R2537 Receiver Drier helps protect mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it reduces internal corrosion, protects compressors, and supports stable cooling performance over time.

This receiver drier uses #6 male O-ring inlet and outlet connections, which allow direct installation into common heavy-duty A/C hose assemblies. In addition, the integrated Schrader port provides convenient access for service and diagnostics. Because service access matters during maintenance, this feature helps simplify system checks.

The cylindrical body measures 3 inches in diameter and 6-1/4 inches in overall length. Therefore, it fits well in compact HVAC layouts while still delivering high-capacity moisture removal. At the same time, the unit includes a pressure-relief feature, which supports system safety during abnormal pressure conditions.

Mobile A/C systems often operate under vibration, heat, and long duty cycles. Because of this, dependable moisture control remains critical. The 74R2537 provides that protection while maintaining a compact and service-friendly design.

Key Features

• Heavy-duty receiver drier for mobile A/C systems

• High-capacity desiccant core for moisture removal

• #6 male O-ring inlet and outlet

• Integrated Schrader service port

• Pressure-relief feature for added system protection

• 3″ diameter × 6-1/4″ length compact body

• Compatible with R-134a refrigerant

Specifications

• Part Number: 74R2537

• Component Type: Receiver drier

• Body Diameter: 3 inches

• Overall Length: 6-1/4 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Service Port: Schrader

• Capacity: High capacity

• Pressure Relief: Yes

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R2537 receiver drier is commonly used in:

• Heavy-duty commercial trucks

• Fleet and vocational vehicles

• Mobile HVAC systems requiring compact, high-capacity driers

• Service replacement applications following A/C repairs

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

Interchange Numbers

088423-00, 1297660, 34228, 4379-RD570617P, 74R2537, 763787, ABP N83 319211, RDHRD570617P, RDT74R2537
