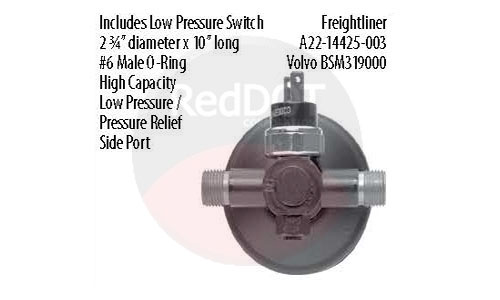

74R2106 Inline Receiver Drier with Low-Pressure Switch – High-Capacity Mobile A/C

The BTRAC 74R2106 Inline Receiver Drier helps protect mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it supports steady cooling performance, reduces internal corrosion, and helps extend compressor life in demanding on-highway environments.

This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows clean integration into common mobile A/C hose layouts. In addition, the unit includes a factory-installed low-pressure switch mounted on top, which helps control compressor operation by monitoring system pressure during normal use.

The high-capacity cylindrical body measures 2-3/4 inches in diameter and 10 inches in overall length. Therefore, it provides increased desiccant volume for systems with longer hose runs and higher refrigerant charge. At the same time, the side pressure-relief feature adds an extra layer of protection during high-load or abnormal pressure conditions.

Based on confirmed application information shown on the image and validated interchange usage, this receiver drier is commonly used on Freightliner® and Volvo® truck platforms. Because these vehicles operate under long duty cycles, the 74R2106 delivers reliable moisture control and integrated pressure management.

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• High-capacity design for improved moisture control

• #6 male O-ring inlet and outlet

• 2-3/4″ diameter x 10″ length cylindrical body

• Includes low-pressure switch (top-mounted)

• Side pressure-relief port

• Compatible with R-134a refrigerant

• Used on Freightliner® and Volvo® trucks

Specifications

• Receiver Type: Inline receiver drier

• Capacity: High-capacity

• Body Diameter: 2-3/4 inches

• Overall Length: 10 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Switch: Low-pressure switch included

• Pressure Relief: Side-mounted

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

OEM Application Notes

Based on confirmed configuration and validated interchange positioning, the 74R2106 receiver drier is commonly used in:

• Freightliner® on-highway trucks

• Volvo® heavy-duty truck platforms

• Fleet and vocational vehicles requiring integrated low-pressure protection

• Mobile HVAC systems where side pressure relief is specified

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

Interchange Numbers

4379-RD5146390P, 7398, 74R2016, 800-1107, ABP N83 319157, F37-6003, F37-6008, F37-6010, RD11107, RDHRD5146390P, RDT74R2016
