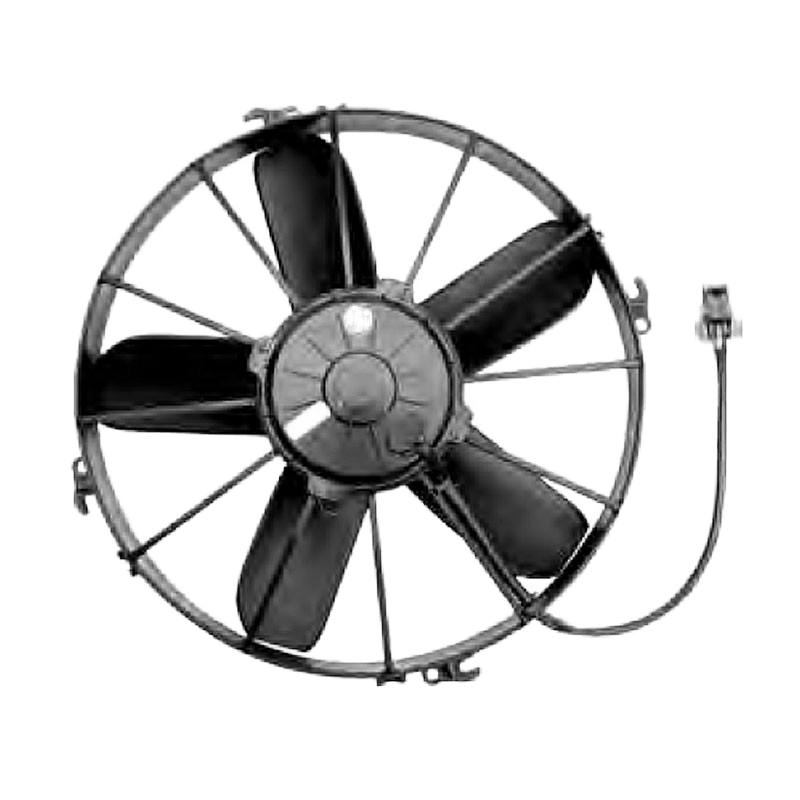

The 73R8654 Motor / Pancake Fan Assembly is a genuine Red Dot 73R-series HVAC fan, engineered for dependable airflow in heavy-duty mobile air conditioning and cooling systems. This assembly operates on 24 volts, uses a single-speed puller (suction) configuration, and rotates counterclockwise (CCW).
Built with a permanent magnet motor and supplied fully assembled with shroud and fan, the 73R8654 delivers reliable performance in demanding environments. Its 13-inch diameter, 3-3/4-inch thickness, and 1,760 CFM airflow make it well suited for condenser and rooftop HVAC applications, including use as a replacement fan for Red Dot R-9757-0-24P units.
This is an OEM Red Dot assembly, not a knockoff or aftermarket substitute.
Product Specifications
-
Part Number: 73R8654
-
Factory Number: RD-5-8747-5P
-
Alliance Part Number: ABP N83 301154
-
Volvo Part Number: RDHRD587475P
-
Type: Motor / Pancake Fan Assembly
-
Fan Configuration: Puller (Suction)
-
Voltage: 24V
-
Speed: Single Speed
-
Rotation: Counter Clockwise (CCW)
-
Motor Type: Permanent Magnet
-
Assembly: Motor mounted with shroud & fan
-
Overall Diameter: 13 in.
-
Overall Height: 13 in.
-
Mounting Hole Width: 9 3/8 in.
-
Mounting Hole Height: 9 3/8 in.
-
Thickness: 3 3/4 in.
-
Airflow: 1,760 CFM
-
Direction: Puller
-
Operating Temperature Range:
-
−4°F (−20°C) to +176°F (+80°C)
-
-
Notes:
-
SPAL VA01-BP70/LL-36A
-
Replacement fan for Red Dot R-9757-0-24P
-
Cross References
-
Texas Truck A/C: 100-1252
-
AirSource (MEI): 3596
-
Coolstar (MEI): 141-1045
-
Primatech: PTAC3596
-
Truck Air (MEI): 44735
-
TruckAC+: T2041
-
TTA/C: 35-6840
-
SPAL:
-
30102545
-
VA01-BP1/LD-36A
-
VA01-BP70/LL-36A
-
Interchange Numbers
100-1252,
143-1082,
1911505504,
248-8226,
3596,
4379-RD587475P,
73R8654,
ABP N83 301154,
BMP4145,
RDHRD587475P,
RDT73R8654
