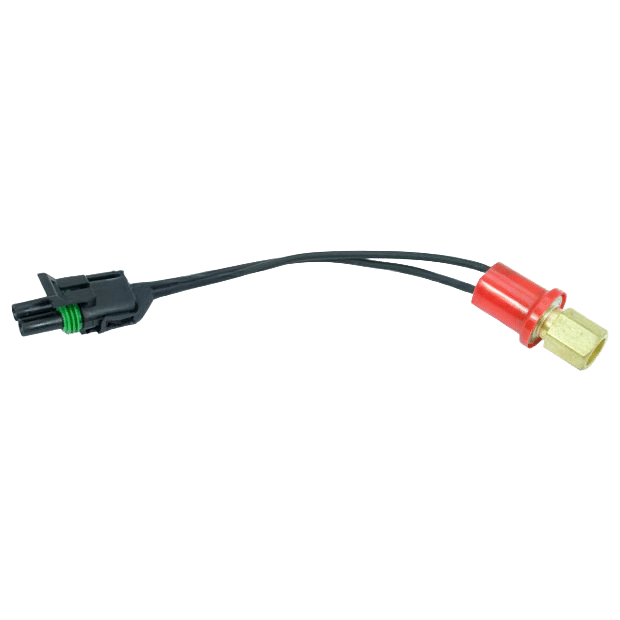

The Red Dot 71R6235 high pressure switch is a normally closed, high-side pressure switch designed to protect mobile A/C systems by opening when system pressure exceeds safe operating limits. It closes at 225 PSI and opens at 275 PSI, helping prevent compressor damage during high-pressure events.
This switch features an M10 x 1.25 female fitting and a two-conductor male Weatherpak connector, making it a direct replacement for select Navistar/IHC truck A/C applications. Use the specifications and interchange numbers below to confirm proper fitment before ordering.
Product Specifications
-
Part Type: High Pressure Switch
-
Red Dot Part No.: 71R6235
-
Red Dot Factory No.: RD-5-14603-0P
-
Application: Navistar / IHC trucks
-
Switch Type: High side pressure
-
Operating Style: Normally closed
-
Closes At: 225 PSI
-
Opens At: 275 PSI
-
Fitting / Connector: M10 x 1.25 female / two-conductor male Weatherpak
Cross Reference Numbers
-
Texas Truck AC: 850-8406, 850-8406A
-
AirSource (MEI): 1489
-
Alliance: ABP N83 318001
-
CoolStar (MEI): 917-1114
-
Navistar International: 3521729-C1
-
NDNS: 3521729C1
-
Omega: 29-30742
-
Primatech: PTAC1489
-
Road Choice: SWI2314
-
SunAir: MC-1325
-
Truck Air (MEI): 11-0829
-
TruckAC+: T11317, T4159
-
TTA/C: 14-5555
Interchange Numbers
1489, 3521729-C1, 3521729C1, 71R6235, 917-1114, ABP N83 318001, MT1921, RDHRD5146030P, RDT71R6235, SWI2314
