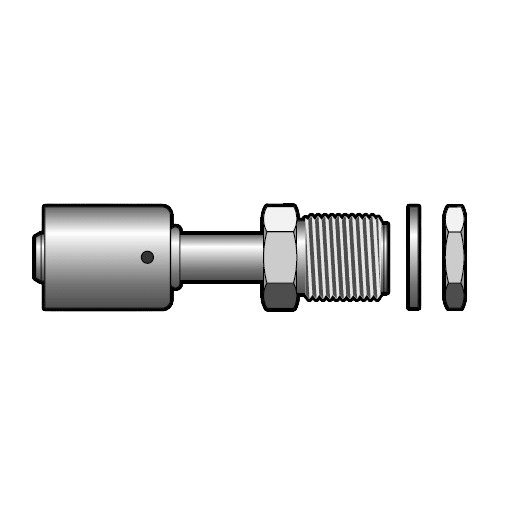

The Red Dot 70R6002S Straight Bulkhead Fitting is engineered for mobile HVAC applications that require a clean, straight-through hose connection through a panel or wall. Because it uses a male insert O-ring interface, it promotes consistent sealing while reducing the risk of leaks under vibration and pressure changes.
This bulkhead-style fitting allows technicians to route refrigerant lines neatly through enclosures, firewalls, or equipment panels. As a result, it improves hose management and supports a professional, serviceable installation.
In addition, the steel construction enhances strength and long-term durability. Therefore, it performs well in trucks, buses, and off-highway equipment operating in demanding environments.
Product Specifications
-
Red Dot Part Number: 70R6002S
-
Red Dot Factory Number: RD-5-13536-0P
-
Product Type: Refrigerant hose fitting
-
Fitting Style: Straight bulkhead with male insert O-ring
-
Material: Steel
-
Fitting Size: No. 12
-
Hose Size: No. 12
-
Thread Size: 1-1/16″-14
-
Service Port: None
Common Applications
This straight bulkhead fitting is commonly used for:
-
Panel or firewall pass-throughs in mobile A/C systems
-
Refrigerant hose routing through enclosures
-
Truck and bus HVAC installations
-
Construction and agricultural equipment
-
Custom refrigerant plumbing assemblies
As a result, it is ideal when a strong, straight bulkhead connection is required.
Cross References / Interchange Numbers
This part commonly interchanges with:
-
2088930-0004
-
Red Dot: 70R6002S
-
Volvo: RDHRD5135360P
Product Summary
-
Configuration: Straight bulkhead fitting with male insert O-ring
-
Material: Steel
-
Hose Compatibility: No. 12
-
Thread Size: 1-1/16″-14
-
Application: Mobile HVAC / A/C systems
