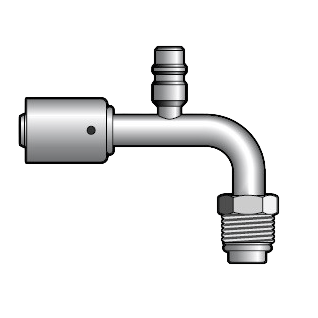

The 70R42396S 90-degree male O-ring steel refrigerant fitting provides a compact, right-angle connection for #6 hose to #6 male O-ring fittings in mobile air conditioning and HVAC systems. Manufactured from steel, this fitting is designed to withstand vibration, pressure, and temperature variations common in heavy-duty applications.
This fitting includes an integrated 16 mm R134a charge port, allowing convenient system servicing without additional adapters. The male O-ring sealing surface helps ensure a secure, leak-resistant connection when properly installed.
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 70R42396S |
| Fitting Type | Male O-ring |
| Orientation | 90-degree |
| Material | Steel |
| Hose Size | #6 |
| Fitting Size | #6 |
| Thread Size | 5/8-18 |
| Charge Port | 16 mm R134a |
| Product Type | Refrigerant hose fitting |
Interchange Numbers
4379-RD5122940P, 605-4931, 70R42396S,
ABP N83 310622, ABP N83 310622,
RDT70R42396S, RDT70R42396S
