Coyote 2¼″ Horizon Louver with 2½″ Hose Adapter (06-2006-1)

Overview

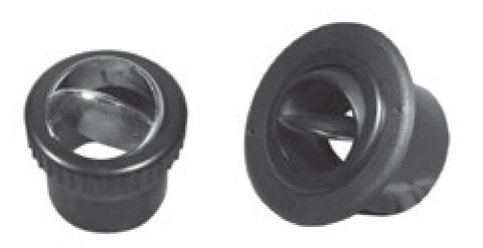

The Coyote 06-2006-1 Horizon Louver combines compact size with large-hose airflow capacity.
Because it uses a 2¼″ front opening and connects to a 2½″ flexible hose, it’s perfect for applications that need strong air delivery in tight spaces.
The directional louver face lets operators adjust airflow easily while maintaining a quiet, efficient output.
In addition, the smooth black finish complements modern dashboards and equipment interiors.

Function and Performance

This Horizon Series louver directs air evenly through a contoured face that minimizes turbulence and noise.
The integrated 2½″ hose adapter ensures efficient airflow while maintaining a tight, leak-free connection.
As a result, the system delivers steady, balanced air pressure for heating or cooling.
In addition, the compact face size allows precise airflow placement in crowded control panels or enclosures.

Durability and Design

Coyote builds the 06-2006-1 from high-strength black ABS plastic formulated for long-lasting durability.
Because the hose adapter and face are molded as a single piece, it holds up well under vibration, UV exposure, and temperature swings.
The satin-black finish gives it a professional, OEM-grade appearance.
In addition, the smooth internal surface reduces air drag and prevents dust accumulation.

Installation

Installation is simple and quick.
Insert the Horizon Louver into the panel opening, then secure the 2½″ flexible hose to the rear adapter.
Tighten the hose with a clamp or tie for a firm, leak-free fit.
Because the adapter is integrated, no extra fittings or sealants are required.
As a result, setup time stays minimal even in multi-vent HVAC systems.

Applications

The Coyote 06-2006-1 Horizon Louver is used in buses, trucks, RVs, off-road machinery, and industrial HVAC systems.
It’s ideal for dash outlets, side vents, or panel-mounted HVAC openings that use smaller front faces with larger duct connections.
Because it combines compact styling with high airflow, it’s a top choice for both OEM and retrofit HVAC projects.

Specifications

• Series: Horizon Louvers

• Part Number: 06-2006-1

• Face Diameter: 2¼″ (57.15 mm)

• Hose Adapter Size: 2½″ (63.5 mm)

• Material: Black ABS plastic

• Airflow: Adjustable, low-noise directional control

• Applications: Bus, RV, truck, off-road, industrial HVAC

• Features: Compact face, large-hose adapter, smooth airflow, durable construction
