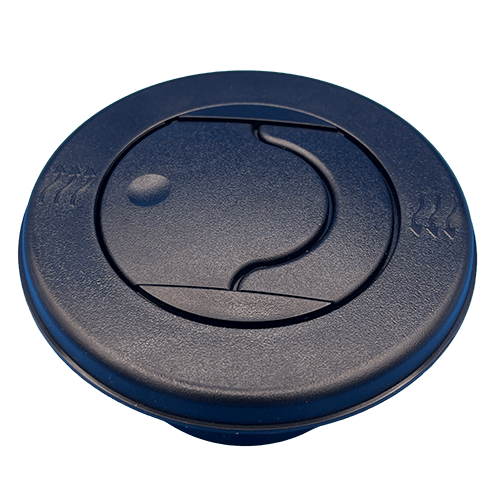

Coyote 4″ Sonora Louver with 2½″ Hose Adapter (06-2003-2)

Overview

The Coyote 06-2003-2 Sonora Louver combines dependable airflow and simple installation in one compact unit.
Because it connects to a 2½″ flexible hose, it works seamlessly with standard HVAC ducting.
Its 4″ face provides broad airflow coverage while maintaining low noise levels.
In addition, the Sonora’s smooth, rounded profile gives dashboards and panels a professional, OEM look.

Function and Performance

This Sonora Series louver channels air smoothly through curved internal vanes that reduce turbulence and sound.
The 2½″ hose adapter ensures balanced airflow and a leak-free connection to the duct line.
As a result, it keeps air moving efficiently for heating or cooling applications.
In addition, the adjustable vent face allows operators to aim airflow exactly where it’s needed for maximum comfort.

Durability and Design

Coyote molds the 06-2003-2 from high-strength black ABS plastic that resists impact, heat, and vibration.
Because the face and adapter form a single molded assembly, it maintains a solid seal and long service life.
The satin-black finish adds a clean, professional appearance suited to both commercial and off-road interiors.
In addition, the internal airflow path stays smooth to prevent pressure loss and dust buildup.

Installation

Installation is fast and secure.
Insert the Sonora Louver into the panel opening and press until it locks into place.

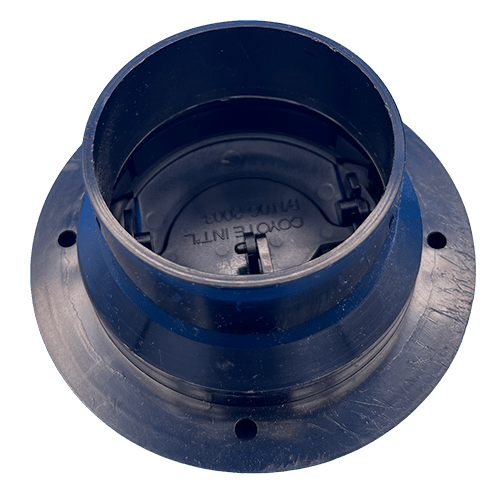

Attach the 2½″ flexible hose to the rear adapter and tighten it with a clamp or tie.
Because of its one-piece molded design, it installs easily without extra fittings or hardware.
In addition, the compact depth allows use in shallow HVAC panels or tight dashboards.

Applications

The Coyote 06-2003-2 Sonora Louver is used in buses, RVs, off-road machinery, trucks, and industrial HVAC systems.
It’s ideal for dash outlets, wall vents, or ceiling panels that require durable, adjustable airflow.
Because of its balance of size and strength, it’s also used in OEM production, retrofit projects, and service upgrades.

Specifications

• Series: Sonora Louvers

• Part Number: 06-2003-2

• Face Diameter: 4″ (101.6 mm)

• Hose Adapter Size: 2½″ (63.5 mm)

• Material: Black ABS plastic

• Mounting Style: Panel-mount with integrated hose adapter

• Applications: Bus, RV, truck, off-road, and industrial HVAC

• Features: Adjustable airflow, quiet operation, one-piece design, easy installation
