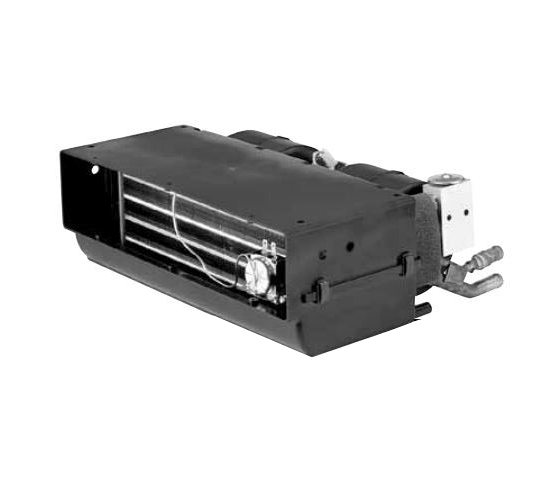

The Red Dot R-2300-0P Ductable Air Conditioner is designed for applications that need reliable cooling in a compact footprint. Suitable for lighter-duty vehicles, this versatile unit can be mounted on the floor, ceiling, or under the dash, making it easy to integrate into a wide range of cab layouts.
Delivering 17,736 BTU/hr of cooling, the R-2300-0P provides strong airflow (~275 CFM) for effective temperature control. Optional louvers and air outlets are available to support ducted air distribution (sold separately), allowing installers to tailor airflow exactly where it’s needed.
Operating on 12V DC and designed to work with an external A/C compressor, the R-2300-0P is a dependable solution for compact cooling needs in specialty vehicles and lighter-duty mobile applications.
Product Specifications
-
Manufacturer: Red Dot
-
Model Series: R-2300
-
Model Number: R-2300-0P
-
System Type: Ductable Air Conditioner (A/C Only)
-
Voltage: 12 VDC
-
Refrigerant Type: R-134a
Cooling Performance
-
Cooling Capacity: 17,736 BTU/hr
-
@ 36°F refrigerant temperature
-
Air & Electrical
-
Air Flow: 275 CFM (467 m³/h)
-
Current Draw: 12.2 amps @ 13.6 VDC
-
Includes 4 amps for A/C clutch
-
Physical
-
Weight: ~15–17 lbs (listed)
-
Mounting Options: Floor, ceiling, or under-dash
Installation Note:
Additional components may be required to complete an A/C system installation.
Cross Reference Numbers
-
Texas Truck A/C: 950-1520-1-12
-
AirSource – MEI: 36800
-
CoolStar – MEI: 994-9400
-
Primatech: PTAC10-9400
-
Red Dot Aftermarket: R-2100-0
-
Red Dot Aftermarket: R-2300-0P
-
Truck Air – MEI: 50-9400
-
TruckAC+: T6762
-
TTA/C: 90-2100-0
Interchange Numbers
-
10-9400
-
4379-R23000P
-
90033448
-
R-2300-0P
-
RDH R2300 0
