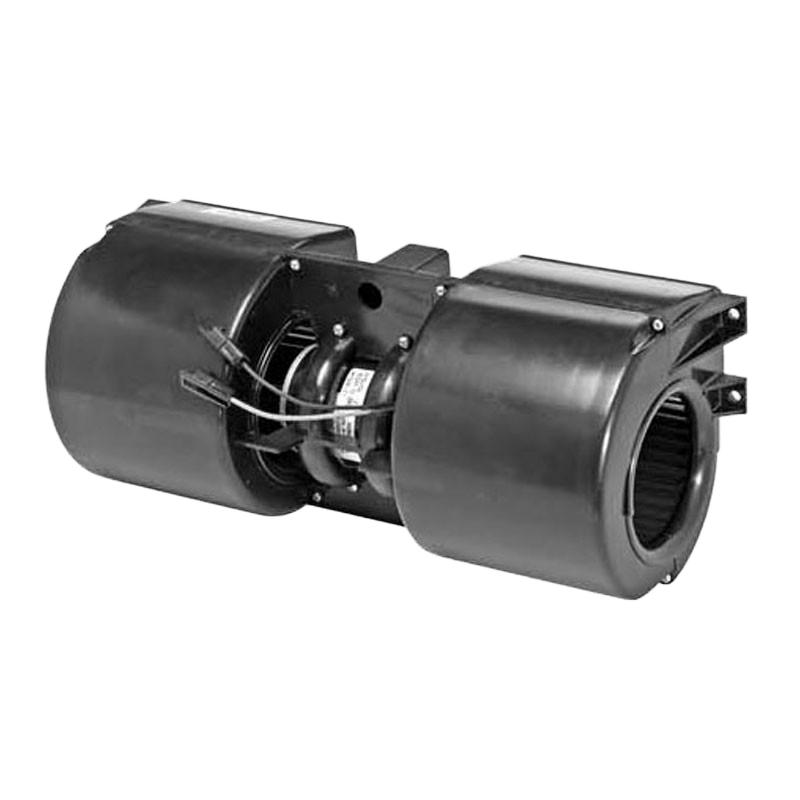

The Red Dot 73R5632 is a dual blower motor assembly engineered for high-output HVAC systems where consistent airflow is critical. Operating on 12 volts and producing 800 CFM, this assembly is commonly used in Red Dot multi-application heater and evaporator systems, specifically the R-9475-0 model.
With a compact rectangular housing, single-speed operation, and four-wire electrical connection, the 73R5632 is built for dependable performance in demanding mobile and off-highway environments. This complete assembly simplifies service and replacement by integrating both blower motors into a single, factory-configured unit.
Product Specifications
Red Dot Part No.: 73R5632
Red Dot Factory Part No.: RD-3-9290-0P
Alternate Factory No.: RD-5-13372-0P
Product Name: Dual Blower Motor Assembly
Application: Red Dot – Multi Applications
Voltage: 12V
Speed: Single Speed
Airflow Rating: 800 CFM
Overall Length: 18 1/2″
Width: 7 1/2″
Height: 6 1/2″
Electrical Connection: Four-wire connection
Designed for Use With:
-
Red Dot R-9475-0 HVAC unit
Applications
-
Red Dot R-9475-0 heater and evaporator units
-
Heavy-duty mobile HVAC systems
-
Off-highway and specialty vehicle climate control
Cross References
Alliance: ABP N83 301258
Kysor: AT221261
Volvo: RDHRD392900P
Texas Truck AC: 150-3119
TruckAC+: T2466
Interchange Numbers
150-3119, 248-8223, 73R5632, ABP N83 301258, AT221261, RDHRD392900P, RDT73R5632
