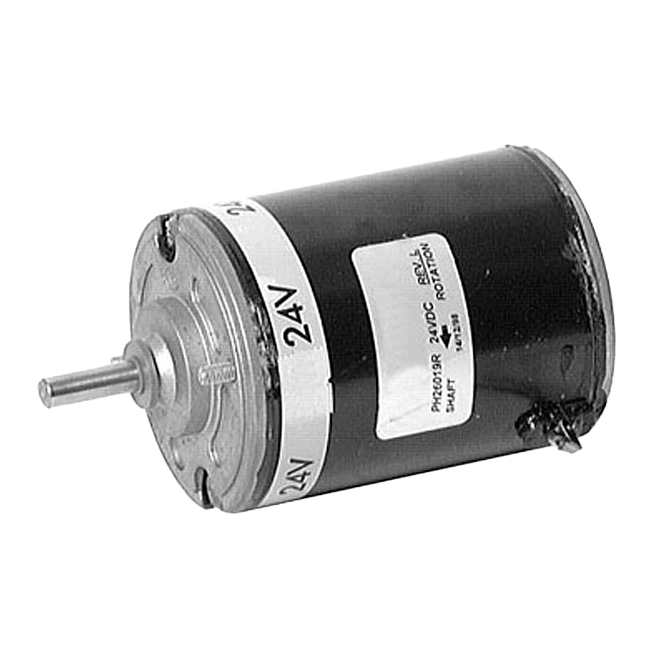

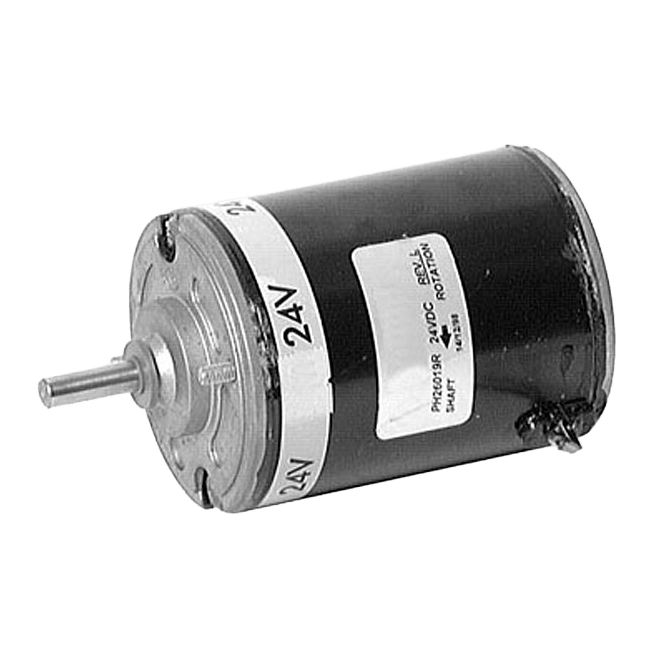

The Red Dot 73R0534 blower motor is engineered for reliable airflow and long service life in demanding mobile HVAC environments. Operating on 24 volts with single-speed output, this motor is commonly used where consistent airflow and electrical efficiency are required.
Its permanent-magnet construction supports efficient operation, while the non-vented housing helps protect internal components from dust and debris. The strap/stud mount configuration allows secure installation, and the single 5/16″ shaft with clockwise rotation makes the 73R0534 a proven replacement option across a wide range of heavy-duty HVAC and condenser applications.
Product Specifications
Red Dot Part No.: 73R0534
Red Dot Factory Part No.: RD-5-3690-1-24P
Red Dot Series: 73R Series
Product Name: Blower Motor
Motor Type: Permanent Magnet
Voltage: 24V
Speed: Single Speed
Rotation: CW
Vent: Sealed / Non-Vented
Overall Length (A): 4 7/8″
Motor Length (B): 4″
Motor Diameter (D): 3″
Shaft Type: Single
Shaft Diameter: 5/16″
Shaft Length (C): 1 1/8″
Mount Type: Strap / Stud Mount
Connector: Two-conductor with ring terminals
Applications
-
Cab heater systems
-
Evaporator blower motor assemblies
-
Mobile HVAC units
-
Condenser and auxiliary airflow applications
-
Heavy-duty trucks and buses
-
Off-road and industrial equipment
Interchange & Cross-Reference Numbers
OEM / Industry References:
Air Source / MEI: 3003
Alliance: ABP N83 301181
Climatech: HA1095, HA1680, HA10950
CoolStar / MEI: 103-1004
Fasco: 2809-540-109
JBAR: 404061, 405709
Murray: 209002
NDNS: ABPN83301181
Omega: 26-13176, 26-R9204
Primatech: PTAC3003
Redmond: PH2435R
Truck Air / MEI: 44567
TruckAC+: T5843
TEXAS TRUCK AC: 150-4725
TTA/C: 30-1176
UAC: BM0369
Red Dot References:
Aftermarket: 73R0504, 73R0534
Factory: RD-5-3690-1-24P
Interchange Numbers:
103-1004, 3003, 4379-RD53690124P, 73R0534, ABP N83 301181, BM03104, RDHRD53690124P, RDT73R0534
