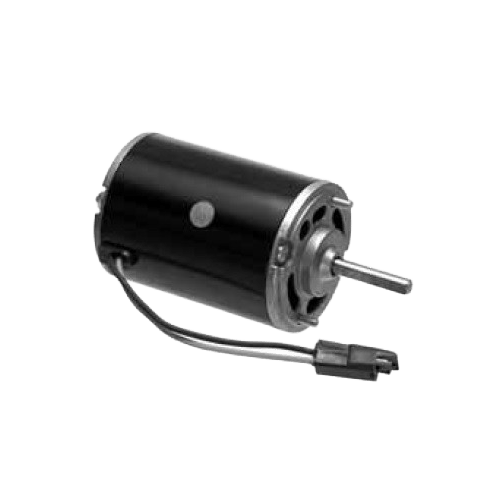

The Red Dot 73R0422 blower motor is engineered for dependable airflow in demanding mobile HVAC environments. Operating on 12 volts with single-speed output, this motor is well suited for applications requiring steady airflow and efficient electrical performance.
Its permanent magnet motor design supports efficient operation, while the vented housing promotes cooling during extended run times. The 73R0422 features a single 5/16″ shaft and a strap/stud mounting configuration, making it a common replacement option in a wide range of heavy-duty HVAC systems.
Product Specifications
Red Dot Part No.: 73R0422
Red Dot Factory Part No.: RD-5-6526-0P
Product Name: Blower Motor
Motor Type: Permanent Magnet
Voltage: 12V
Speed: Single Speed
Rotation: CW
Vent: Vented
Overall Length: 4 3/4″
Motor Length: 4″
Motor Diameter: 3″
Shaft Type: Single
Shaft Diameter: 5/16″
Shaft Length: 1 5/8″
Mount Type: Strap / Stud Mount
Mount Span: 2 5/16″
Notes: Extended brushes, dual ball bearings
Applications
-
Cab heater systems
-
Evaporator blower motor assemblies
-
Mobile HVAC units
-
Heavy-duty trucks and buses
-
Off-road and industrial equipment
Interchange & Cross-Reference Numbers
Interchange Numbers:
01-2610, 02-17017, 102-1104, 1099007, 1099016, 117283C1, 117283C91, 176117, 203178, 208938, 232-8757, 2325299, 274253, 2790HV32742, 2809-541-024, 2809-541-117, 2809-541-164, 3034, 35065, 3926, 3948130, 3949262, 431-7737, 4379-RD565260, 4379-RD565260P, 60009-5009, 600095003, 73R0352, 73R0402, 73R0422, 900302, ABP N83 301001, ABP N83 301071, AM86502, BM02204, BSM203132, D8HZ-18527-A, E-803018, HA10700, PM3692, RDHRD565260P, RDT73R0422
