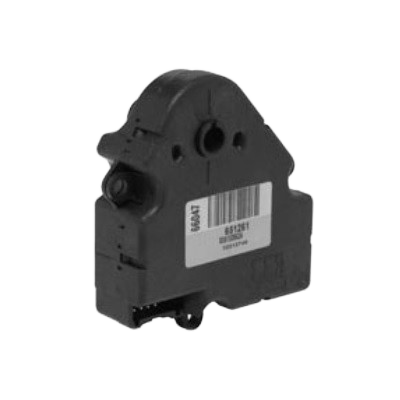

The Red Dot 71R3582 4-pin actuator is a compact electronic actuator designed for reliable control in mobile HVAC applications. It is commonly used for mode door, blend air door, air distribution, and water valve actuation, making it a dependable solution for heavy-duty truck and off-highway systems.
Operating on 12 volts, this actuator integrates easily into OEM and aftermarket HVAC assemblies. Its straightforward 4-pin configuration supports consistent electronic control across a wide range of vehicle platforms.
Use the specifications and interchange numbers below to confirm compatibility before ordering.
Product Specifications
-
Part Type: Actuator
-
Red Dot Part No.: 71R3582
-
Red Dot Factory Part No.: RD-5-14609-0P
-
Voltage: 12V
-
Connector Type: 4-Pin
-
Application:
-
Mode door actuation
-
Blend air door control
-
Air distribution control
-
Water valve actuation
-
Cross Reference Numbers
-
Texas Truck AC: 850-7607
-
AirSource (MEI): 2383
-
Bergstrom: 651261
-
Climatech: MA1640, MA1705, MA17050
-
CoolStar (MEI): 725-2530
-
Mack: 7787-650694
-
Navistar International: 2503207-C1
-
NDNS: 2503207C1
-
Primatech: PTAC2383
-
Road Choice: HP22530
-
RoadForce: RF6526512591
-
Truck Air (MEI): 10-0830
-
TruckAC+: T2374
-
Red Dot (Factory): RD-5-14609-0P
Interchange Numbers
10-1430, 1000593044, 2115003, 2383, 2503207C1, 4379-RD5146090P, 650694, 651261, 6HA745, 71R3582, 725-2530, 7787-650694, 7787-651261, 850-7607, 850-8907, HP22530, MA16400, MA1705, MA17050, MT18504, RDHRD5146090P, RDT71R3582
