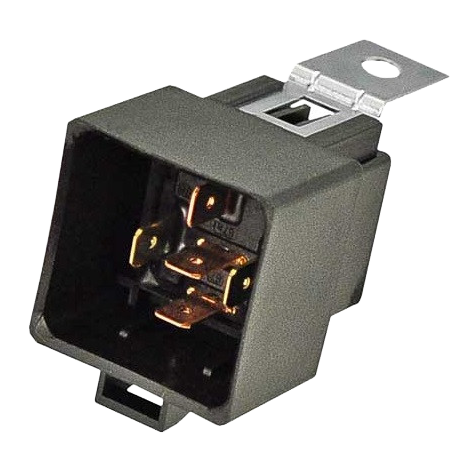

The Red Dot 71R1914 Relay Switch is a 24-volt SPDT (Single Pole Double Throw) relay with integrated coil suppression, designed for dependable switching in Red Dot rooftop condenser applications. Rated at 20 amps (open) and 15 amps (closed), this relay is specifically used on the Red Dot R-6260-1-24P rooftop condenser, where protection against voltage spikes and electrical noise is essential.
It features a 5-terminal layout with standard 1/4″ male blade terminals, allowing clean integration into existing wiring harnesses. Coil suppression helps protect downstream components by reducing back-EMF during relay operation, improving overall system reliability.
-
Part Type: Relay Switch (with Coil Suppression)
-
Red Dot Part No.: 71R1914
-
Red Dot Factory Part No.: RD-5-7233-0P
-
Application: Red Dot R-6260-1-24P Rooftop Condenser
-
Voltage Rating: 24V
-
Pole: SPDT (Single Pole Double Throw)
-
Current Rating: 20/15 Amp
-
Contact Rating: Open 20A / Closed 15A @ 24V
-
Terminal Count: 5
-
Terminal Type: 1/4″ Male Blade
Dimensions
-
Base Length: 1-13/32″
-
Base Width: 1-13/32″
-
Overall Length: 2-5/8″
-
Blade Length: 1/2″
Features & Benefits
-
Integrated coil suppression for voltage spike reduction
-
SPDT design for flexible control circuit operation
-
Rated for 24V rooftop condenser applications
-
Standard blade terminals for easy harness compatibility
-
Designed specifically for Red Dot rooftop HVAC systems
Cross Reference Numbers
Texas Truck A/C: 850-7775
AirSource / MEI: 1264
CoolStar / MEI: 940-1310
Primatech: PTAC1264
Red Dot (Aftermarket): 71R1914
Red Dot (Factory): RD-5-7233-0
Truck Air / MEI: 44871
TruckAC+: T5310
Interchange Numbers
1264, 1265, 232-8415, 4379-RD572330, 4379-RD572330P, 71R1914, 850-7775, 87324-3448, 940-1310, ABP N83 320320, RDH RD5 7233 0, RDHRD572330P, RDT71R1914, SWI5810
