Mastercool 71500-A Hydra-Krimp A/C Hose Crimping System

The Mastercool 71500-A Hydra-Krimp A/C Hose Crimping System provides technicians with a fast, reliable way to assemble and repair automotive A/C hoses using controlled hydraulic force. Because the tool generates high crimping pressure with minimal pumping effort, it produces uniform, repeatable crimps while reducing physical strain.

This Hydra-Krimp system supports both standard and reduced-barrier A/C hoses commonly used in mobile air conditioning systems. As a result, technicians can fabricate secure, leak-resistant hose assemblies directly on the vehicle or at the workbench. In addition, the six-segment die design creates an OE-style crimp that promotes even compression around the fitting.

The lightweight, hand-held hydraulic body makes the 71500-A ideal for both shop and field applications. Dies snap quickly into the press fixture without pins or screws, which improves efficiency during repetitive hose work. The system comes housed in a custom molded case, helping protect components during transport and storage.

Key Features

• Hand-held hydraulic A/C hose crimping system

• Generates over 10,000 PSI of crimping pressure

• Produces OE-style 6-segment crimps

• Supports standard and reduced-barrier hose designs

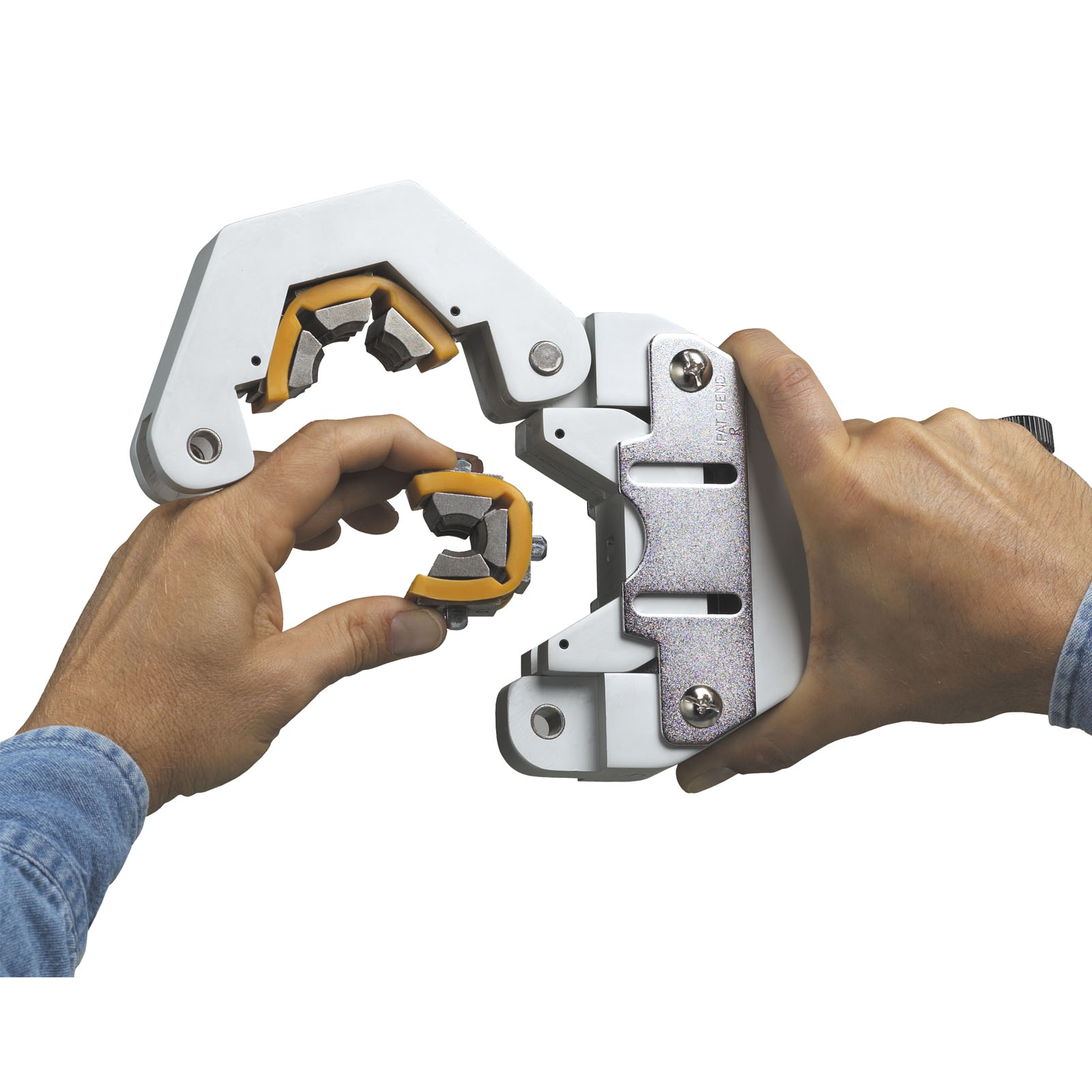

• Dies snap in quickly with no pins or screws

• Lightweight and portable for shop or field service

• Crimps most fittings in under 10 pump strokes

• Durable construction for professional use

Supported Hose Sizes & Die Sets

Standard Hose Dies

• #6 (5/16″)

• #8 (13/32″)

• #10 (1/2″)

• #12 (5/8″)

Reduced-Barrier Hose Dies

• #6 Reduced Barrier

• #8 Reduced Barrier

• #10 Reduced Barrier

• #12 Reduced Barrier

Applications

• Automotive A/C hose fabrication

• A/C hose repair and replacement

• Mobile air conditioning service

• Professional shop and field operations

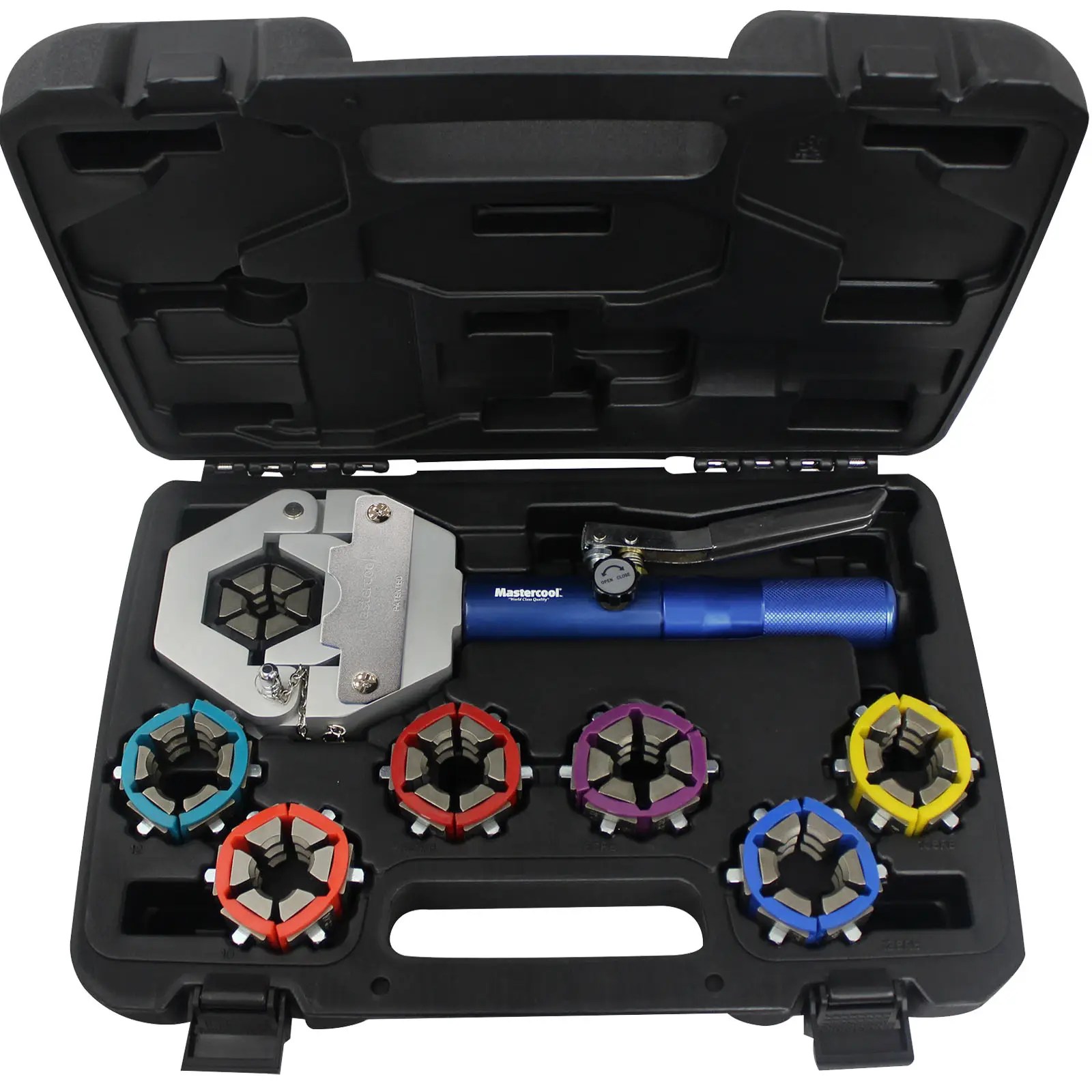

Kit Contents

• Hydra-Krimp hydraulic pump assembly

• Hydra-Krimp yoke assembly

• Complete die set (standard and reduced-barrier)

• Custom molded storage case

• Operating instructions

Serviceable / Replacement Parts

(Available separately)

• 71500-001AB – Hydra-Krimp pump assembly

• 71500-001B – Hydra-Krimp yoke assembly

• 71500-001C – Complete die set assembly

• 71500-6 – #6 die set

• 71500-8 – #8 die set

• 71500-10 – #10 die set

• 71500-12 – #12 die set

• 71500-6SRB – #6 reduced-barrier die set

• 71500-8SRB – #8 reduced-barrier die set

• 71500-10SRB – #10 reduced-barrier die set

• 71500-12SRB – #12 reduced-barrier die set

• 71500-PB – Custom molded storage box

Specifications

• Manufacturer: Mastercool

• Part Number: 71500-A

• Product Type: Hydraulic A/C hose crimping system

• Operation: Hand-held hydraulic pump

• Crimp Style: 6-segment OE-style

• Application: Automotive air conditioning hoses

Compatibility

• Automotive A/C hoses

• Standard and reduced-barrier hose types

• Barbed and beaded A/C fittings

• Professional hose fabrication workflows
