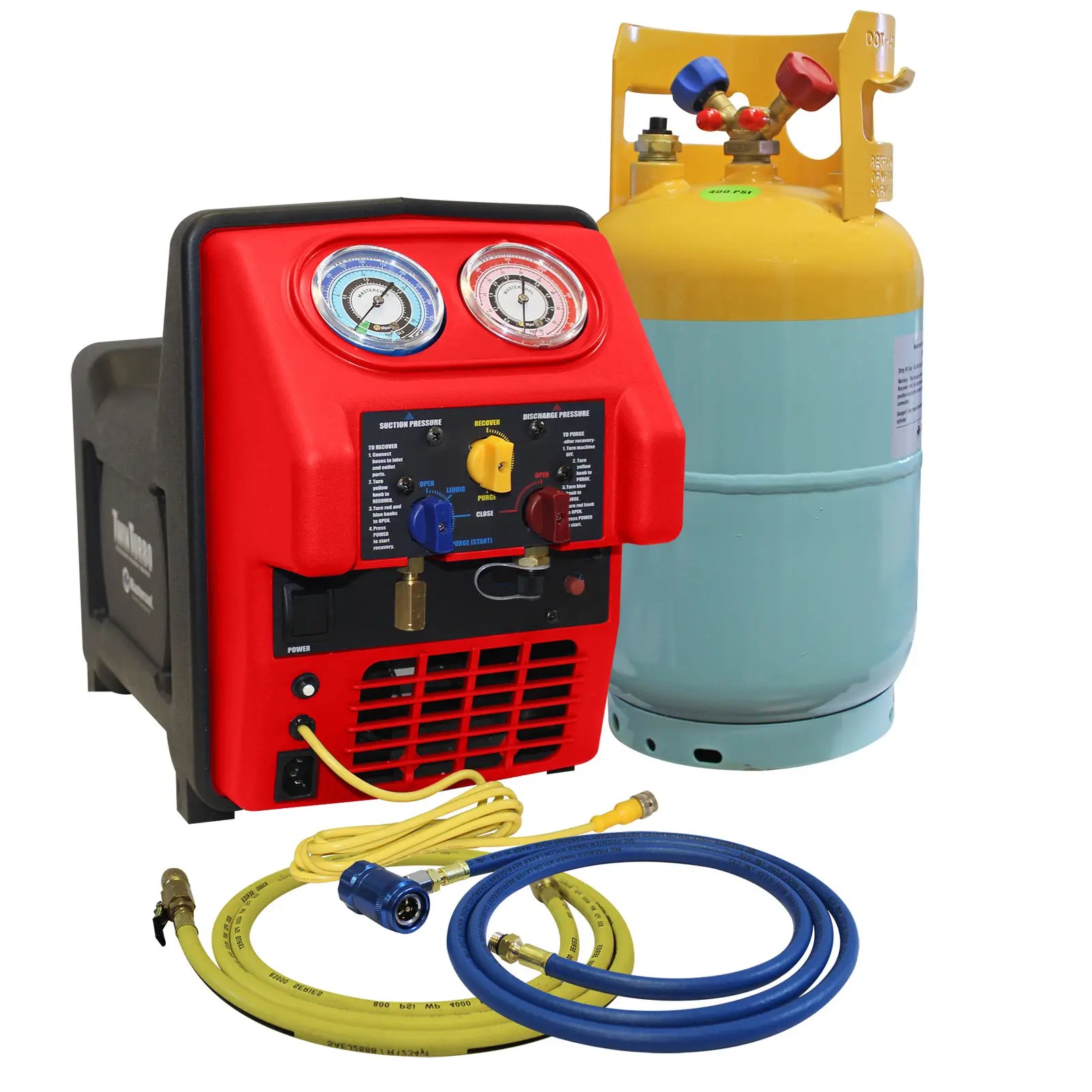

Mastercool 69391 SparkFree TwinTurbo Refrigerant Recovery Machine for R1234yf

The Mastercool 69391 SparkFree TwinTurbo Refrigerant Recovery Machine is a professional-grade solution engineered specifically for contaminated mobile A/C systems using R1234yf refrigerant. This unit is a contaminated-recovery-only machine, designed to safely handle flammable and mixed refrigerants while meeting SAE J2851 requirements for automotive service environments.

At its core, the 69391 features a ½ HP oil-less TwinTurbo double-piston compressor, delivering one of the highest recovery rates available while eliminating oil contamination. The spark-free internal design allows safe operation with flammable refrigerants, including A2L and A3 classifications, making it a critical tool for modern automotive A/C service.

The system includes a stainless-steel ball valve manifold with large, easy-to-read 2½-inch gauges, allowing technicians to monitor pressures accurately throughout the recovery process. A built-in purge valve ensures complete removal of refrigerant from the condenser and internal system components after recovery is complete.

For safety and reliability, the Mastercool 69391 incorporates automatic overfill protection, stopping recovery at 80% tank capacity, along with a high-pressure safety switch and automatic low-pressure shutdown. The unit is housed in a rugged HDPE injection-molded case with integrated bumper guards, providing durability for both shop and mobile service environments.

Important Operating Notes

• Certified technician use only (EPA Section 609 recommended)

• Approved float-switch recovery tank required — the machine will not operate without it

• Designed for contaminated refrigerant recovery only

• Not intended to be adapted for other refrigerants or clean-recovery applications

Key Features

• Designed for contaminated R1234yf automotive A/C systems

• SAE J2851 compliant contaminated-recovery-only machine

• SparkFree design approved for flammable refrigerants

• ½ HP oil-less TwinTurbo double-piston compressor

• Sealed crankcase to minimize refrigerant loss

• Large 2½-inch gauges for clear pressure monitoring

• Purge valve for complete refrigerant removal

• 80% overfill protection with automatic shutoff

• High-pressure safety switch

• Large cooling fan and condenser for faster recovery

• Rugged HDPE injection-molded case with bumper protection

Applications

• Contaminated automotive A/C refrigerant recovery

• R1234yf system service and remediation

• Flammable refrigerant recovery environments

• Professional shop and mobile service operations

Specifications

• Manufacturer: Mastercool

• Part Number: 69391

• Product Type: Contaminated refrigerant recovery machine

• Compressor: ½ HP oil-less TwinTurbo double piston

• Voltage: 115 V / 60 Hz

• Operating Temperature: 32°F to 122°F

• Recovery Tank: 30 lb DOT-approved with 80% float switch shutoff

• Compatible Refrigerants: R1234yf (contaminated systems)

• High-Side Design Pressure: 500 psig

• Low-Side Design Pressure: 174 psig

• Case Material: High-density polyethylene (HDPE)

• Weight: 28.3 lbs

• Dimensions: 18″ L × 10″ W × 14″ H

Included Components

• 30 lb DOT-approved recovery tank with float switch

• 60″ R1234yf blue hose with low-side coupler

• 60″ yellow transfer hose

Compatibility

• Contaminated automotive A/C systems

• R1234yf refrigerant applications

• Approved Mastercool float-switch recovery tanks

• Professional automotive recovery workflows
