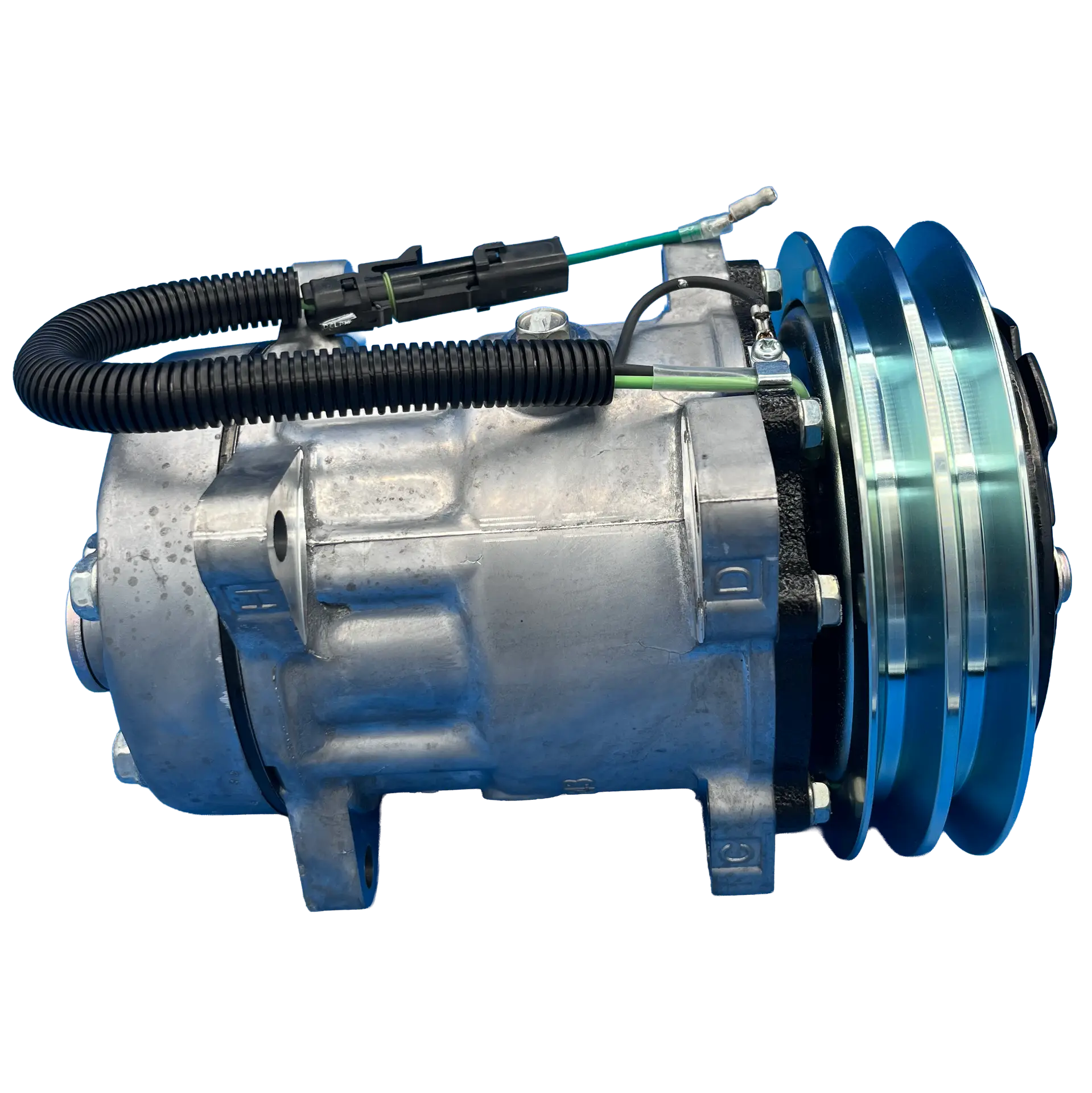

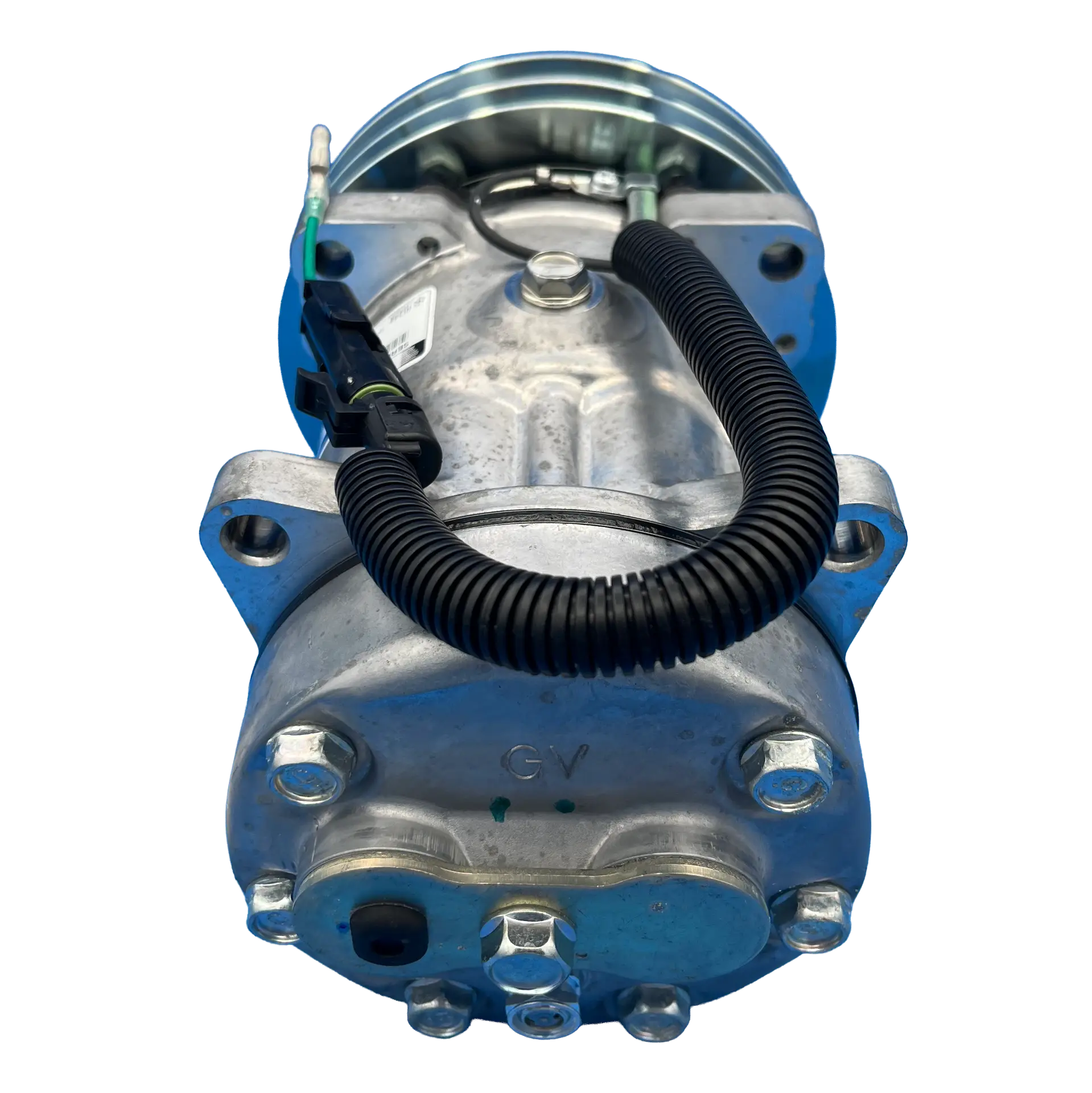

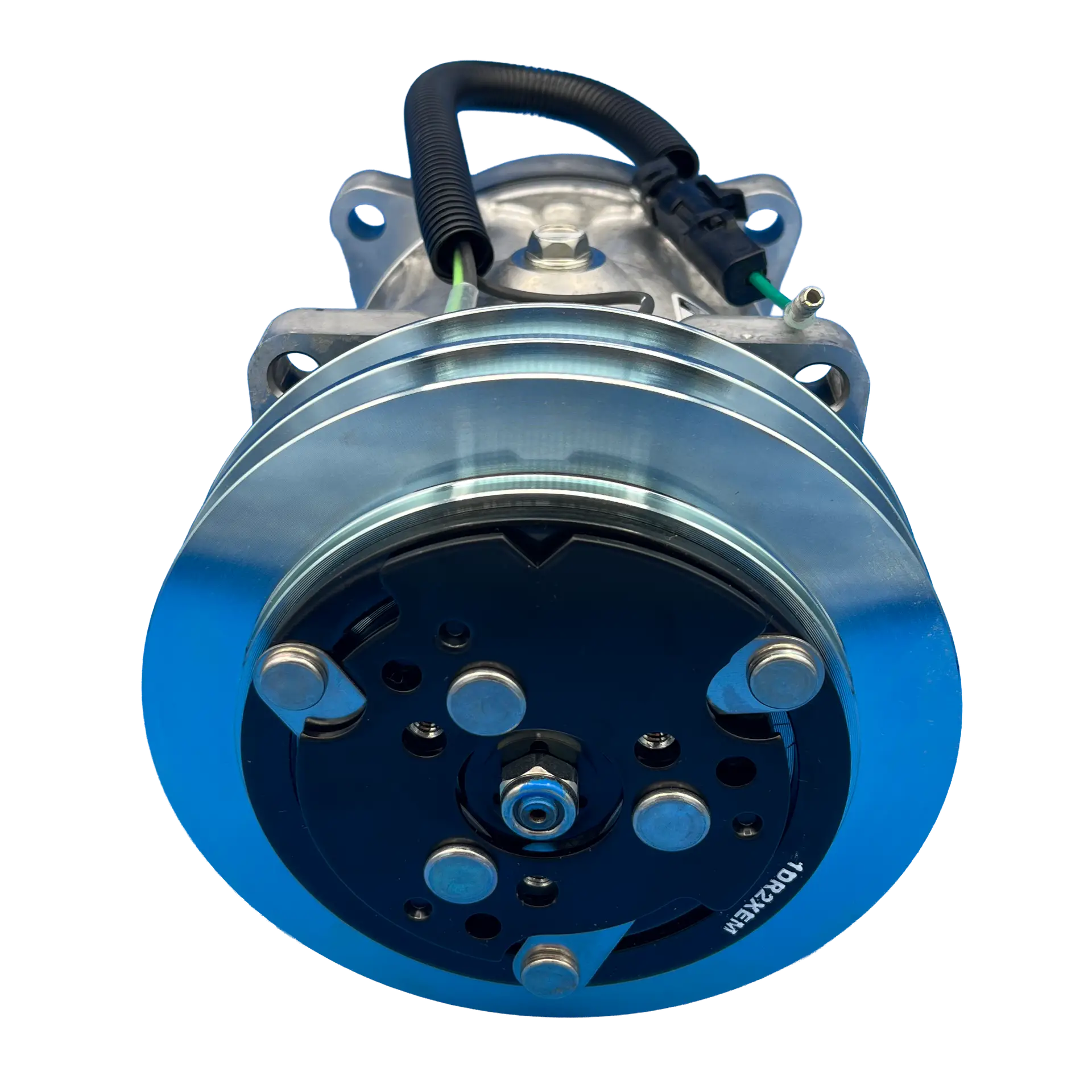

Compressor BT5-4881

Description

Interchange Numbers:
1401223, 1410055, 247-3511, 300-5518, 330-1725, 402321, 4379-RD5110100P, 4379-RD5110100P, 4532, 4881, 5202, 5294, 6679, 75R89484, ABP N83 304114, ABP N83 304114, ACC2725, RDHRD5110100P, RDT75R89484, RDT75R89484, ZGG705161

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 200
Cylinder Head: GV
Port Angle: H
Port Clocking: Rear
Head Port Style: O-Ring
Rotor Size: 152
Rotor Groove: A2
Gauge Line
to First Groove: 23.80
Gauge Line
to Middle Groove: 0.00
Gauge Line
to End Groove: 39.55
Coil Voltage: 24
Connector: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
