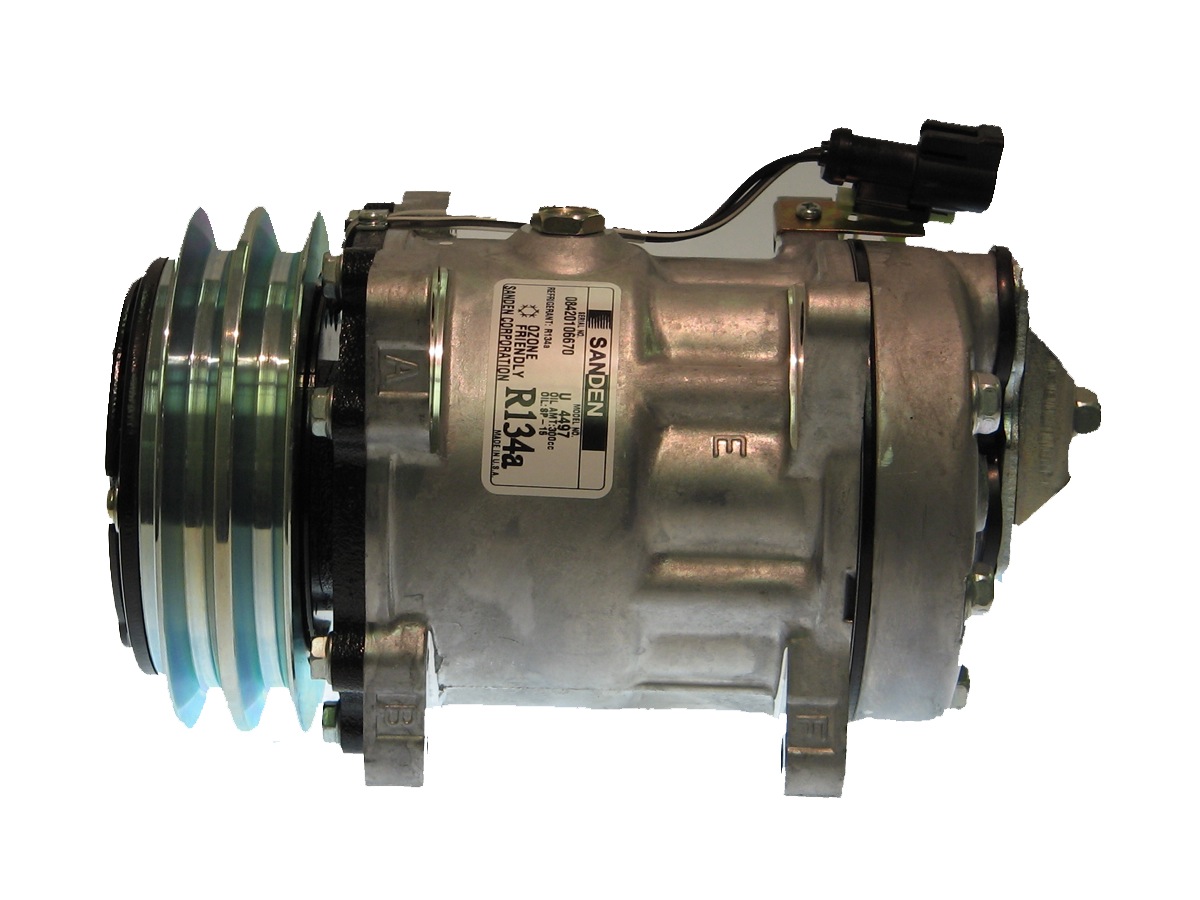

Compressor BT5-4704

Description

Interchange Numbers:
1401352, 1401365, 1410012, 20-04704, 20-04704, 232-9241, 300-4640, 330-1663, 4379-RD5102610P, 4379-RD5102610P, 4497, 4704, 5320, 58789, 75R84132, ABP N83 304043, ABP N83 304043, ACC2663, RDHRD5102610, RDHRD5102610P, RDT75R84132, RDT75R84132, XC3H-19D629AB, 509-607

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: SJ
Port Angle: H
Port Clocking: Rear
Head Port Style: O-Ring
Rotor Size: 132
Rotor Groove: A2
Gauge Line
to First Groove: 23.80
Gauge Line
to Middle Groove: 0.00
Gauge Line
to End Groove: 39.55
Coil Voltage: 12
Connector: 2 Wire Ford E7EB-14A464-DA W/ Wedge
