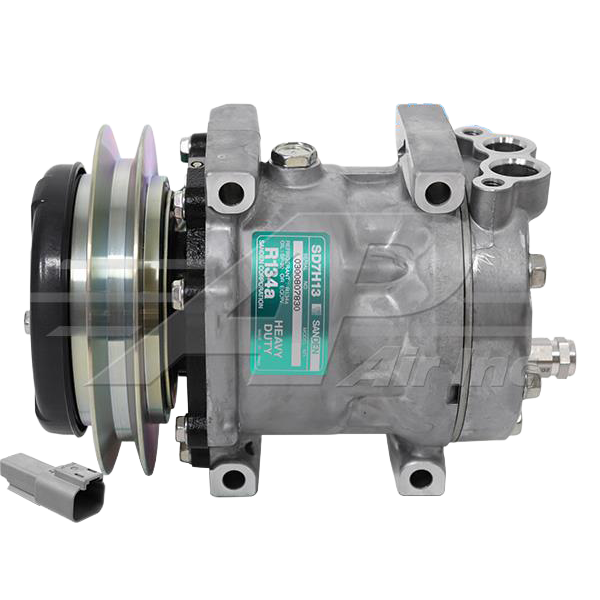

BT5-8948 Compressor – OE Sanden SD7H13 24V A/C Compressor, WL Head

Description

The BT5-8948 Sanden SD7H13 compressor provides reliable cooling performance in applications where 24V electrical systems and single-belt drives are required. Specifically, the 146mm, 1-groove clutch delivers steady torque transfer while maintaining proper belt alignment under load.

In addition, the WL head design supports clean hose routing and secure sealing, which helps reduce vibration and connection stress. Therefore, this compressor is well suited for equipment that demands OEM fitment, long service life, and consistent R134a cooling performance.

---

Key Features

• Genuine OE Sanden SD7H13 platform

• 24V electrical operation

• 146mm single-groove clutch

• WL head configuration

• Designed for heavy-duty and off-road HVAC systems

---

Essential Specifications

• BTRAC SKU: BT5-8948

• Compressor Type: SD7H13

• Application: Heavy-Duty / Mobile HVAC

• Voltage: 24V

• Refrigerant: R134a

• Clutch Diameter: 146mm (5.75″)

• Grooves: 1

• Belt Width: 0.60

---

Head, Drive & Mechanical Details

• Head Type: WL

• Coil Position: 12:00

• Gauge Line: 44.00mm

---

OEM & Reference Numbers

423-S62-4330

---

Applications

• Off-road and construction equipment with 24V systems

• Mobile HVAC setups using Sanden SD7H13 compressors

• OEM or OE-equivalent replacement installations
