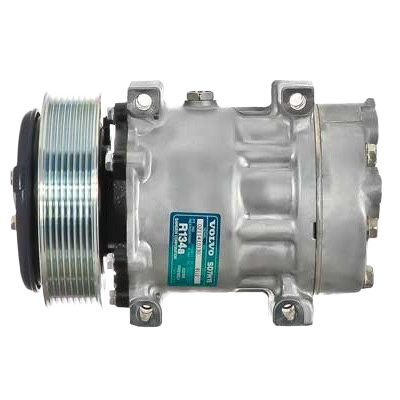

BT5-8112 Heavy-Duty A/C Compressor – SD7H15HD, 24V, 8-Groove

Description

The BTRAC BT5-8112 A/C compressor is designed for farm and off-road HVAC systems that operate under heavy load and long duty cycles. It uses the proven SD7H15HD compressor platform, which supports high refrigerant flow and stable cooling in demanding conditions.

Because this compressor uses a direct-short mounting style, it installs cleanly into compatible brackets. In addition, the horizontal rear pad O-ring fittings—with Volvo offset orientation—support proper hose routing and reduce stress at the connections. As a result, installation is more consistent and long-term reliability improves.

The BT5-8112 operates on a 24-volt electrical system and uses an 8-groove serpentine clutch. Therefore, it delivers smooth belt engagement and steady power transfer during continuous operation.

This unit ships with a 240 cc factory oil charge and uses PAG 100 oil for R134a refrigerant systems. Furthermore, the long key shaft and clockwise rotation match common off-road drivetrain requirements.

---

Specifications

General

• Compressor Model: SD7H15HD

• Application: Farm & Off-Road

• Refrigerant Type: R134a

• Oil Type: PAG 100

• Factory Oil Charge: 240 cc

• Rotation: CW

Clutch & Drive

• Voltage: 24V

• Clutch Diameter: 132 mm

• Grooves: 8

• Belt Type: Serpentine

• Shaft Type: Long key shaft

Head & Fittings

• Head Type: WZ

• Fitting Style: Rear pad O-ring

• Port Position: Horizontal

• Orientation: Volvo offset, top-left, suction over discharge

• O-Ring #1: 0124

• O-Ring #2: 0129

Electrical

• Wire Type: 1-wire bullet (Volvo 1308436)

• Diode Protection: None

Mounting

• Mounting Type: Direct short

---

Replacement Components

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: NSS

---

Interchange Numbers

1001322606
11104251
11412631
1401518
14505511
14659238
15082727
20-08044
20-18112
20538307
21184142
58112
6034
75R90684
8112
8113628
8191892
8242
85000315
9014659238
RDT75R90684

---

Applications & Notes

• Designed for farm and off-road HVAC systems

• 24-volt electrical platforms

• SD7H15HD compressor configuration

• Rear pad O-ring fittings with Volvo offset

• Always verify mounting, belt alignment, and electrical requirements before installation
