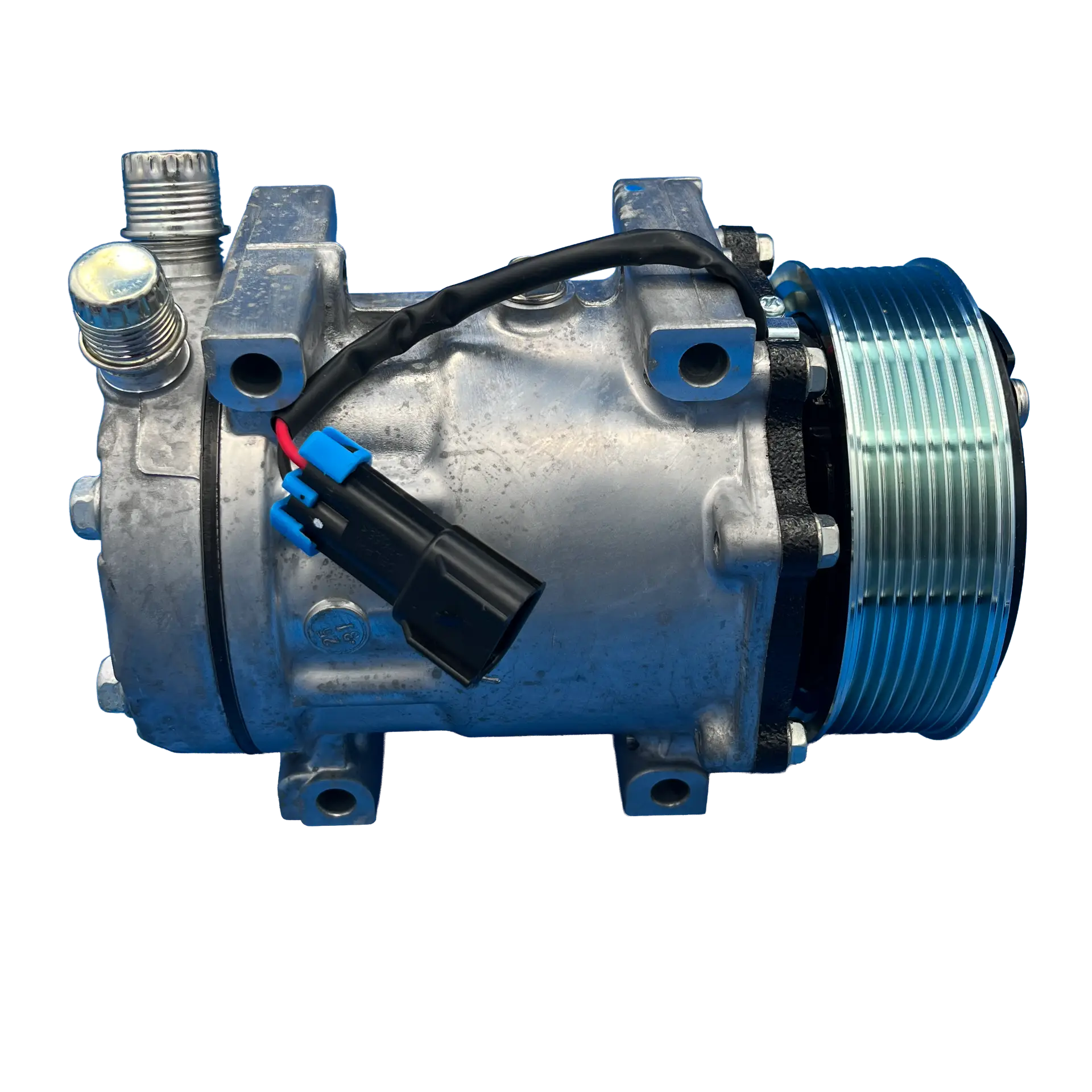

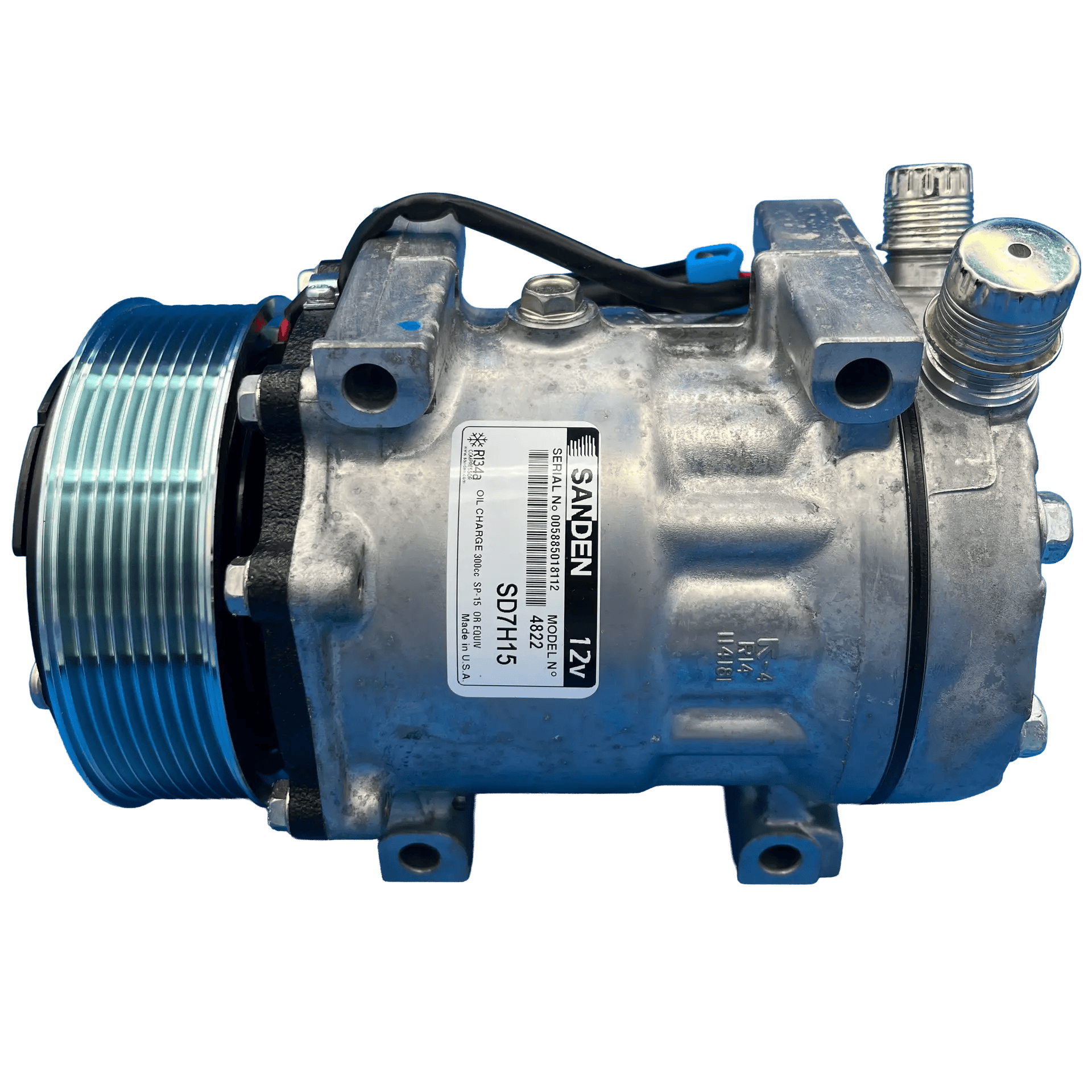

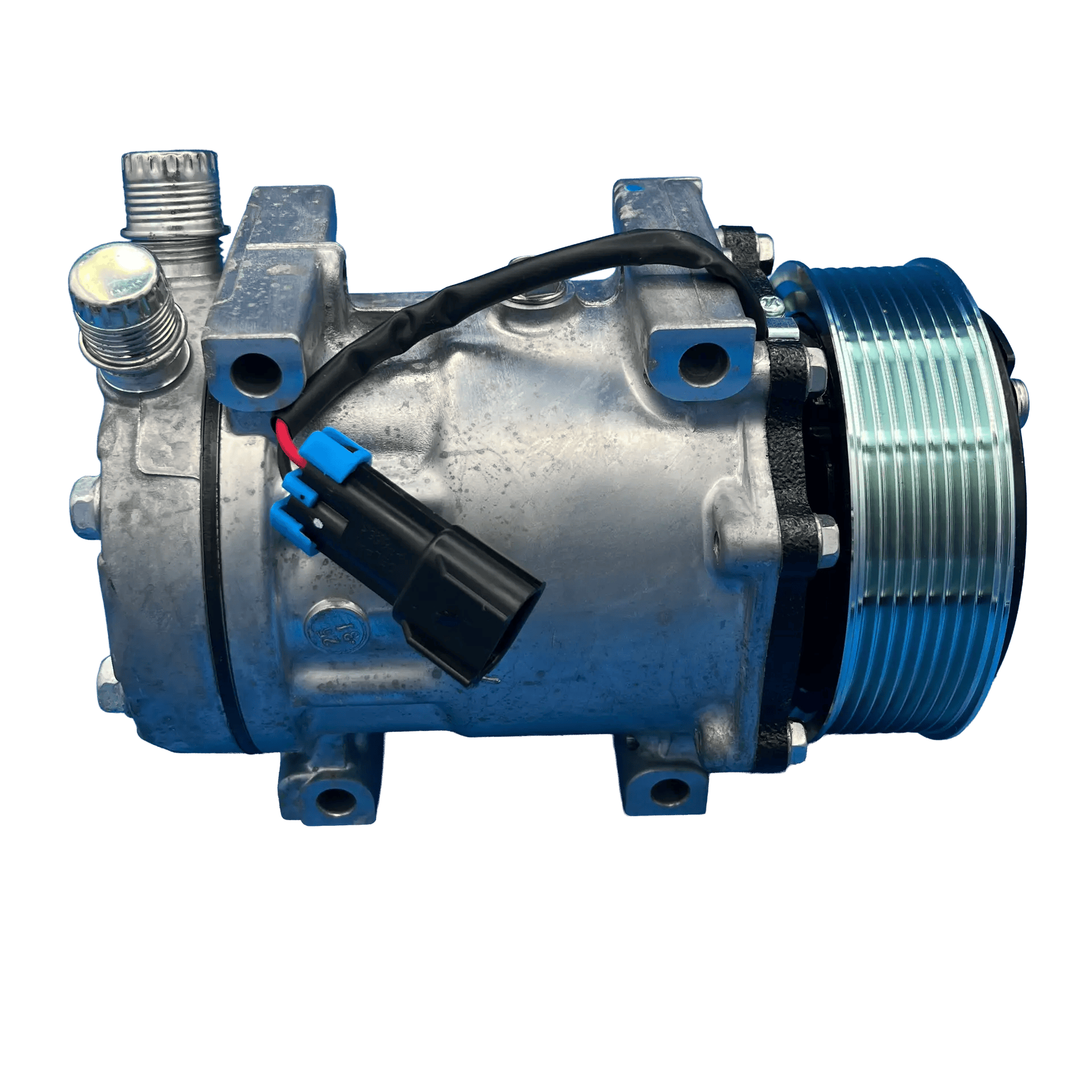

BT5-4822 Compressor – SD7H15HD 12V R134a, 119mm 8-Groove Clutch, JDA Head

Product Description

The BT5-4822 compressor is built on the proven Sanden SD7H15HD platform, making it a dependable solution for Navistar truck air conditioning systems operating under continuous-duty conditions. Its 7-cylinder design and 9.5 cu. in. displacement provide smooth operation and consistent refrigerant flow across a wide range of engine speeds.

Additionally, this compressor comes factory-charged with 300cc of PAG100 oil and is configured for R134a refrigerant. The JDA head features male insert O-ring #8 and #10 fittings with a vertical port orientation, allowing OE-correct hose routing and secure sealing. A 119mm 8-groove serpentine clutch ensures stable belt engagement and long service life in fleet environments.

Because of its direct long mounting, clockwise rotation, and integrated diode protection, the BT5-4822 is a trusted replacement option across multiple Navistar and specialty truck platforms.

Key Features

• Heavy-duty Sanden SD7H15HD compressor platform

• 12V operation for Navistar truck applications

• 7-cylinder design for smooth, reliable performance

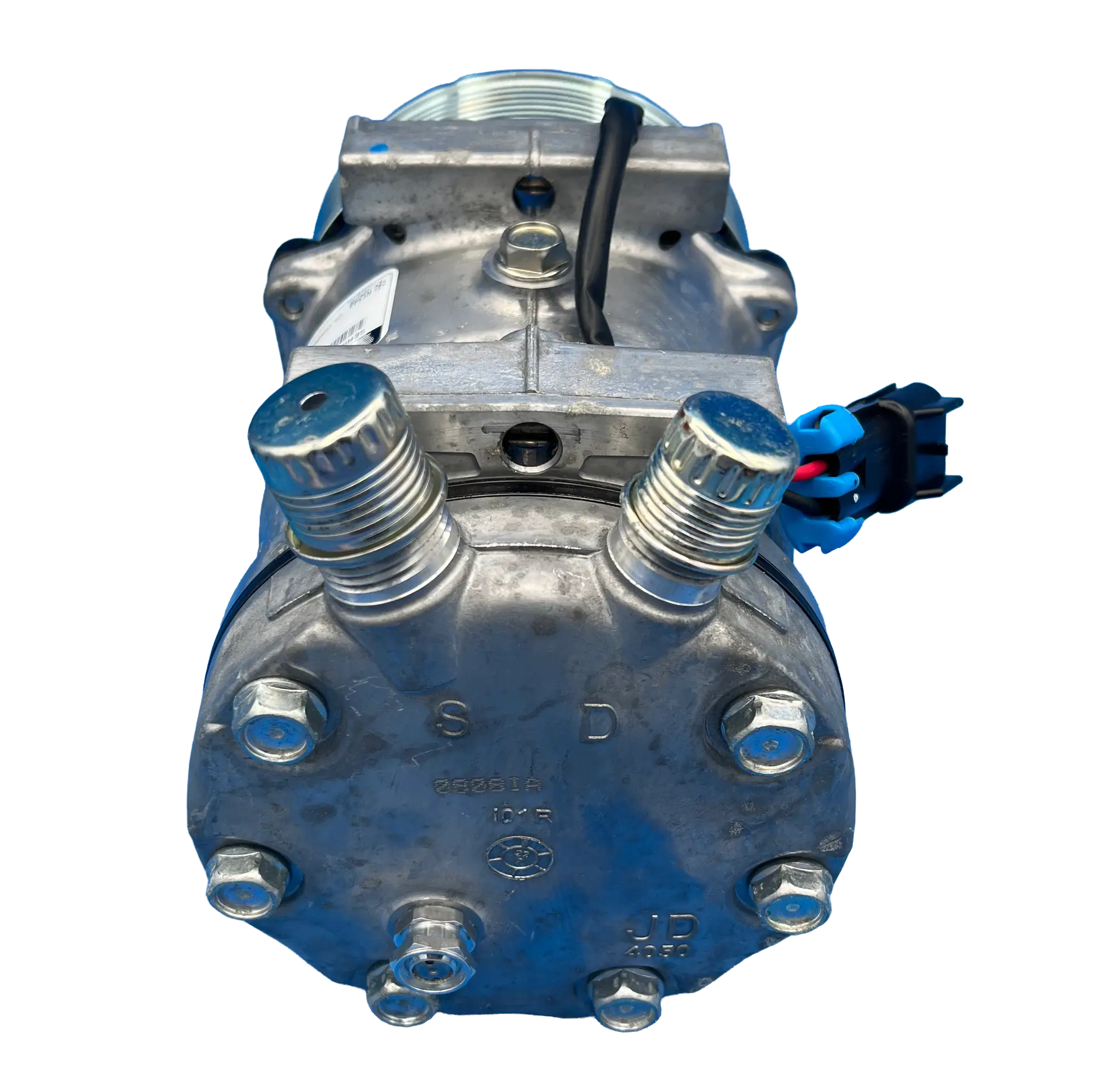

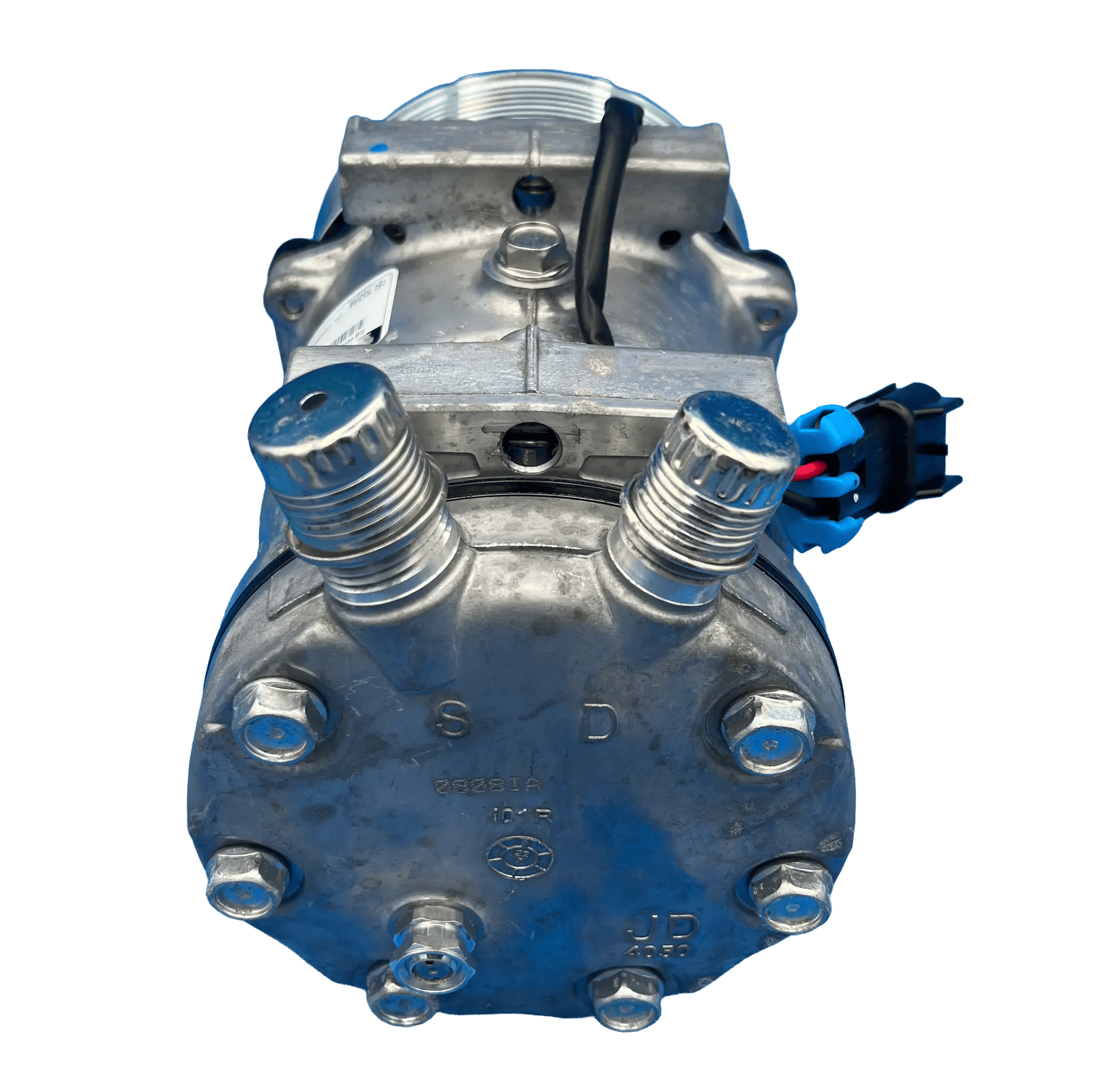

• JDA head with male insert O-ring #8 & #10 fittings

• Vertical port orientation for OE hose routing

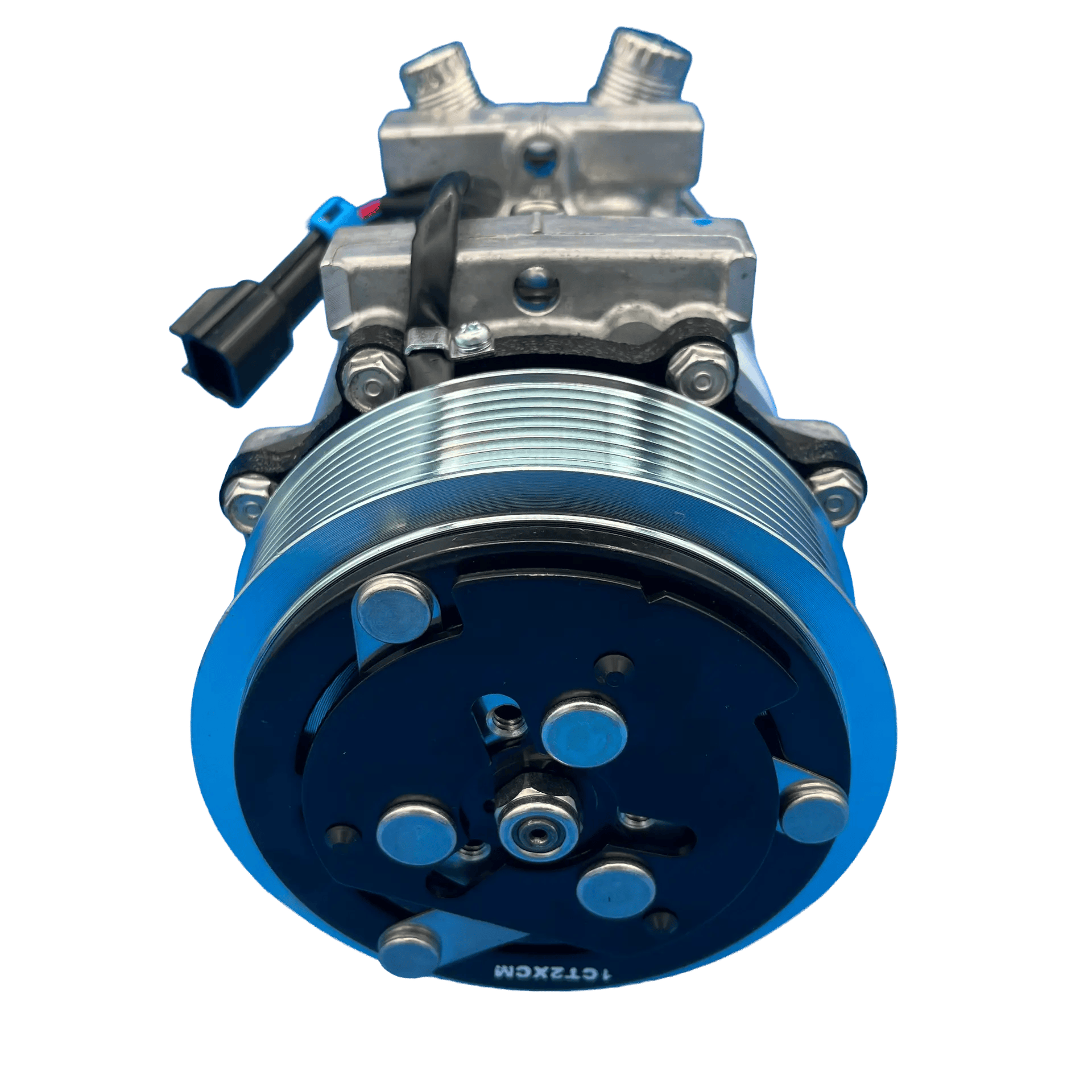

• 119mm 8-groove serpentine clutch

• Integrated diode protection

• Factory oil-charged for installation readiness

Essential Specifications

• BTRAC SKU: BT5-4822

• Product Name: Compressor

• Compressor Family: SD7H15

• Model: SD7H15HD

• Application: Navistar Trucks

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Direct Long

• Shaft Type: Long Key Shaft

• Head Type: JDA

• Fitting Style: Male Insert O-Ring #8 & #10

• Fitting Port Position: Vertical

• Clutch Diameter: 119mm

• Number of Grooves: 8

• Belt Type: Serpentine

• Factory Oil Charge: 300cc

• Oil Type: PAG100

• Wire Type: 2-Wire Female Packard #15300002

• Diode Protection: Yes

Service & Replacement Components

• Replacement Clutch Assembly: 5137

• Replacement Head Assembly: 5601

• O-Ring #1: 0013

• O-Ring #2: 0015

Interchange Numbers

Alliance

• 304403

CoolStar

• 330-2544

Four Seasons

• 275117

Kysor

• 1401133

• 1410027

• 402067

Navistar

• 3551405C1

• 3551405-C1

Oshkosh

• 3425950

Sanden

• 4321

• 4822

Truck Air

• 03-0803

Additional Industry & Aftermarket References

• 20-04822

• 232-9280

• 300-4413

• 300-4433

• 330-2544

• 4379-RD5107380

• 4379-RD5107380P

• RD-5-10738-0

• RDHRD5107380P

• RDT75R84622

• 5349

• 58785

• 75R84622

• ABP N83 304403

• ACC3544

Applications

• Navistar on-road trucks

• Fleet and vocational truck HVAC systems

• 12-volt mobile air conditioning applications
