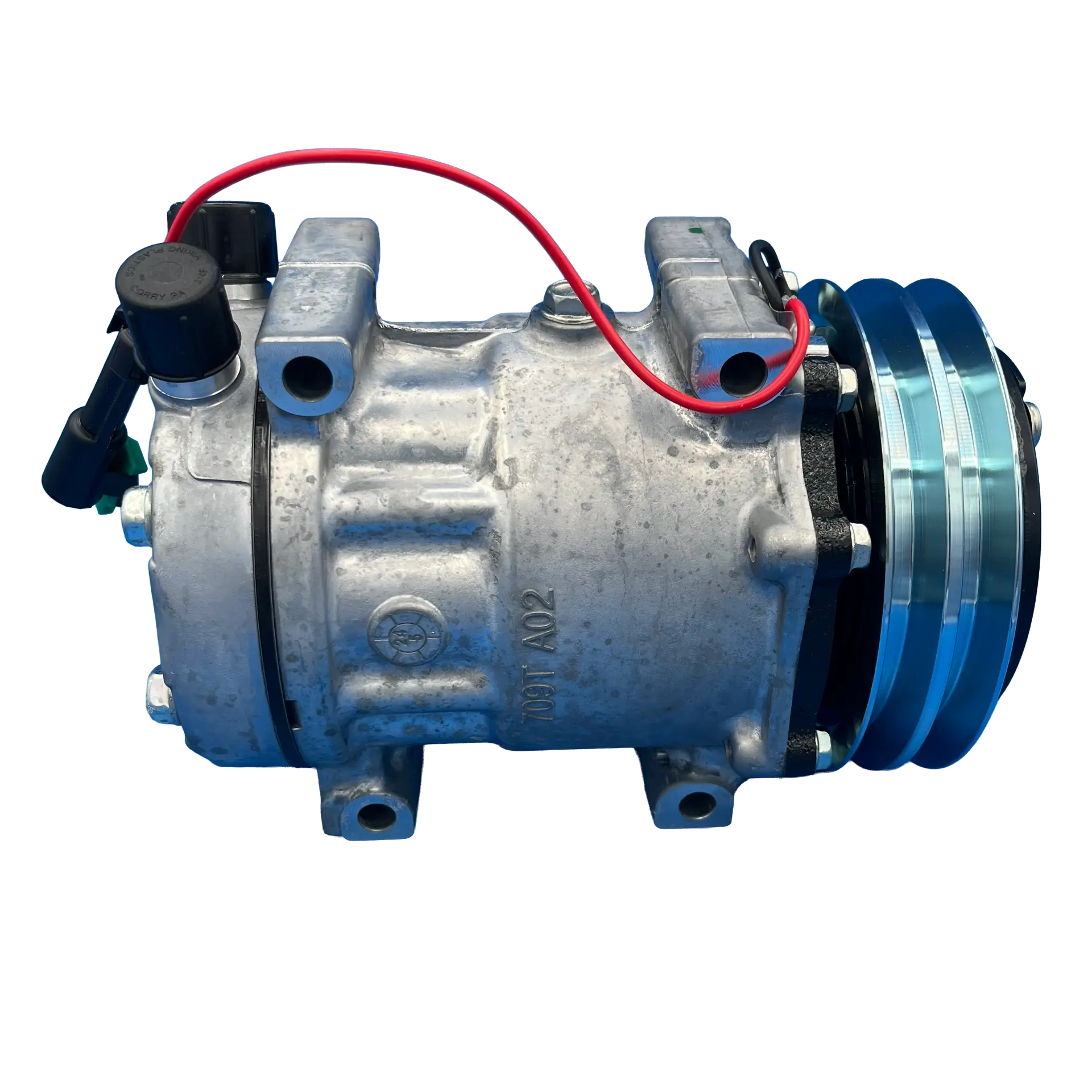

BT5-4626 12V Heavy-Duty A/C Compressor – SD7H15HD, Direct Long Mount, 2-Groove 132 mm, JD Head

Description

Overview

The BT5-4626 SD7H15HD compressor is engineered for 12V mobile air-conditioning systems where durability, serviceability, and belt stability are critical. Because of its direct-long mounting design, the compressor integrates cleanly into OEM and aftermarket brackets used across heavy-duty platforms.

At the same time, the dual 1/2-inch belt drive and 132 mm clutch support higher belt loads and consistent power transfer. Additionally, the JD-style cylinder head with vertical #8 / #10 male insert O-ring fittings allows for clean hose routing in confined engine bays. As a result, the BT5-4626 serves as a dependable replacement solution across multiple heavy-duty applications.

---

Key Features

• 12-volt heavy-duty A/C compressor

• SD7H15HD compressor platform

• Direct-long mounting configuration

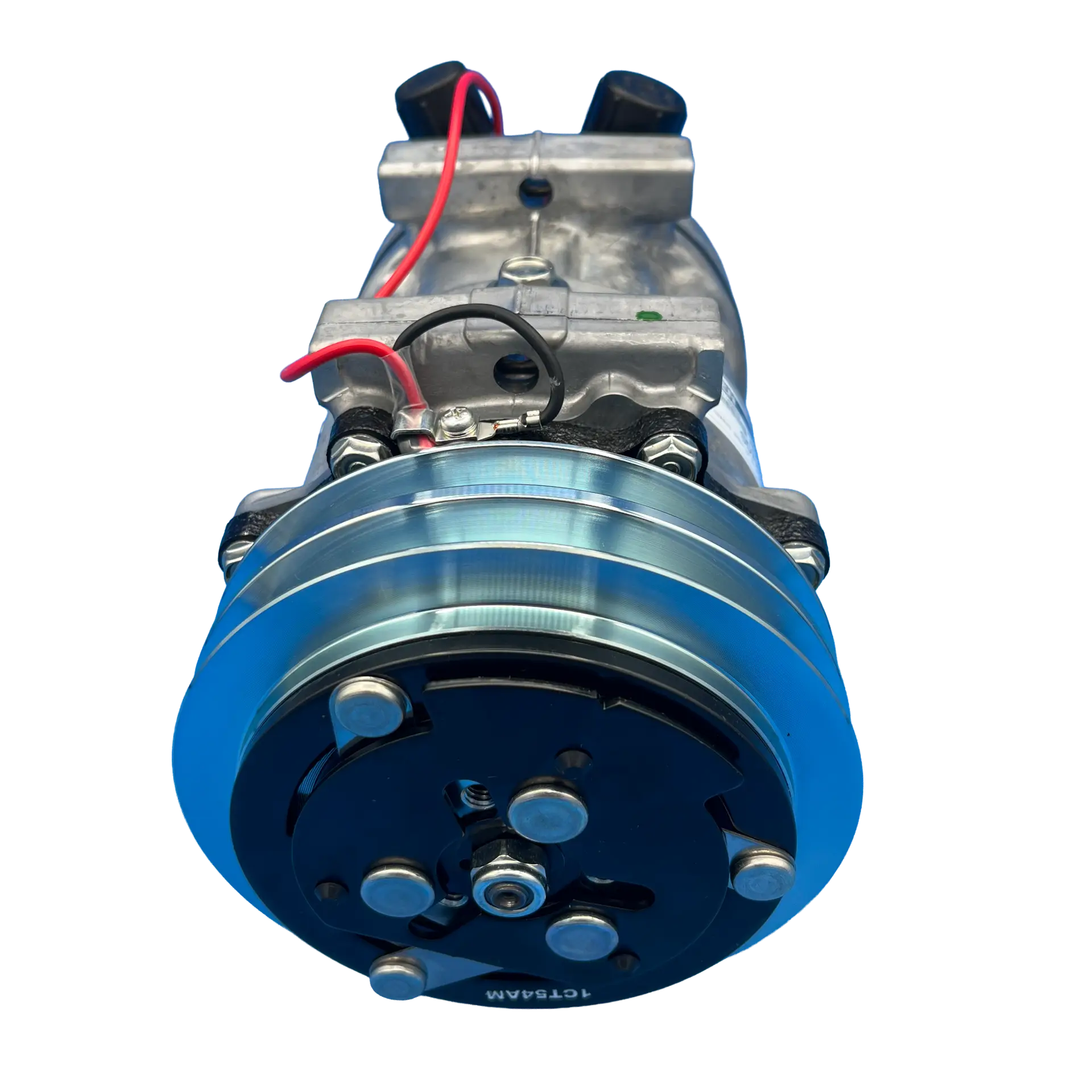

• Dual-groove clutch for two 1/2″ belt systems

• 132 mm clutch diameter

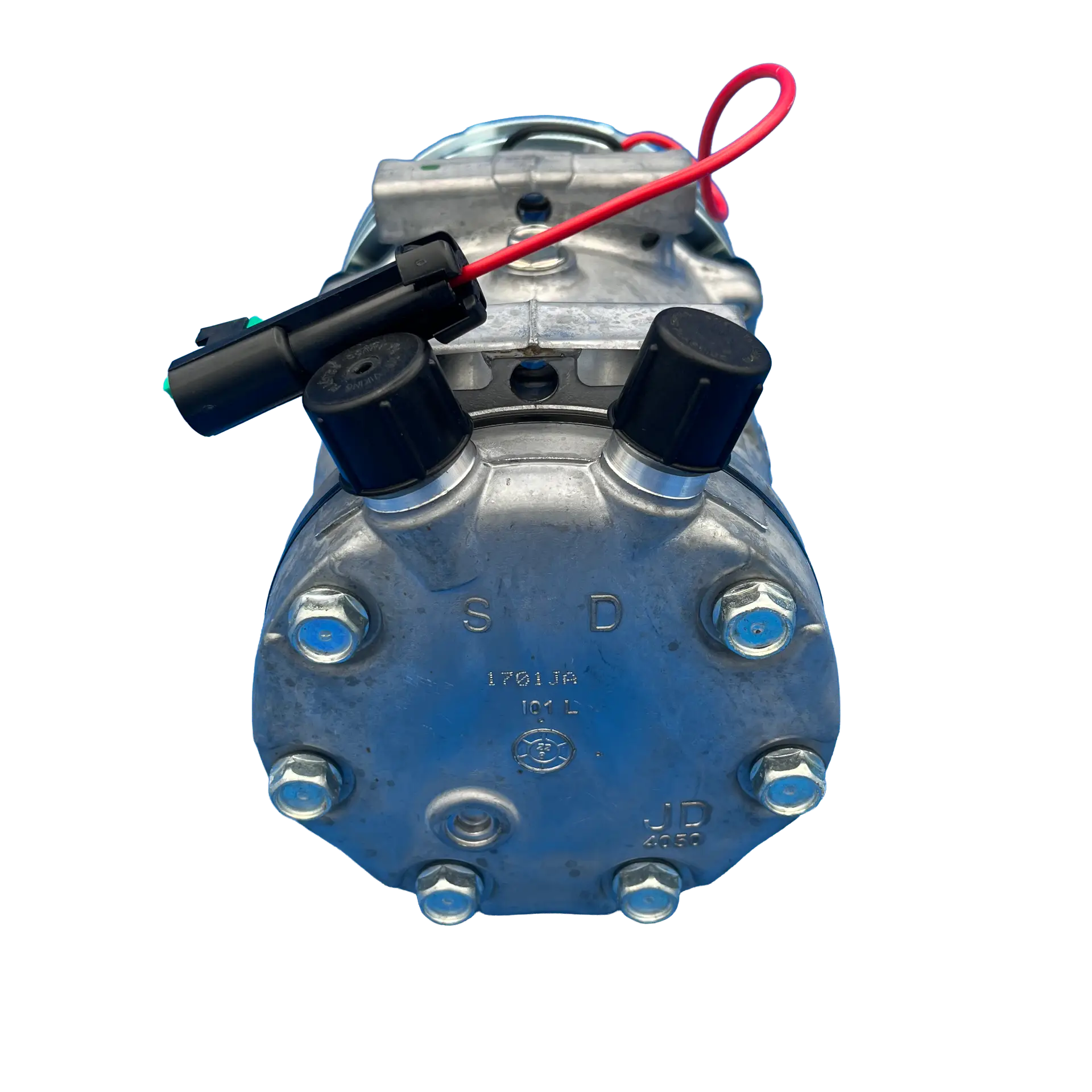

• JD-style cylinder head

• Vertical male insert #8 / #10 O-ring fittings

• 1-wire Packard electrical connector

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15HD

• Style: Heavy Duty

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Direct Long

• Drive Type: Belt-driven

• Belt Type: Two 1/2″ belts

• Clutch Grooves: 2

• Clutch Diameter: 132 mm

• Shaft Type: Long key shaft

---

Head & Fittings

• Head Type: JD

• Fitting Port Position: Vertical

• Fitting Style: Male insert O-ring

• Fitting Sizes: #8 & #10

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire male Packard #12065171

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5064

• Replacement Head Assembly: 5626

---

Notes

• 4626: keyed shaft (uses 4626-9931 clutch)

• 4780: splined shaft (uses 4780-9931 clutch)

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4626

• MEI: 5726

• Sanden: 4626, 4626SAN, 4780, 4894

• Industry ID: 20-10077, 20-10077-AM, 20-10085

OEM & Supplier References

• Carrier / Freightliner: 22-46585-000

• Navistar: 1691746C91

• Alliance: ABP N83 304095

• CoolStar: 300-4425

• Truck Air: 03-3416

• Fleetrite: FLT4695Q

Additional Interchange References

1401107, 1401381, 1410013, 1410018, 20370292, 206RD49AM, 232-9257, 402048, 405905, 4379-RD575220, 4379-RD575220P, 4695, 525722, 5726G, 61104-3420, 75R8432, 75R8432A, 8022507, 8177091, E-801172, F69-6001-153, F69-6002-133, LE11400, LE46260, LE46950, RDHRD575220P, RDT75R8432, SIT4626-6000, SKI4626, ZGG19316

---

Typical Applications

• Heavy-duty on-highway trucks

• Vocational and fleet vehicles

• Industrial and specialty equipment

• OEM replacement and retrofit mobile A/C systems
