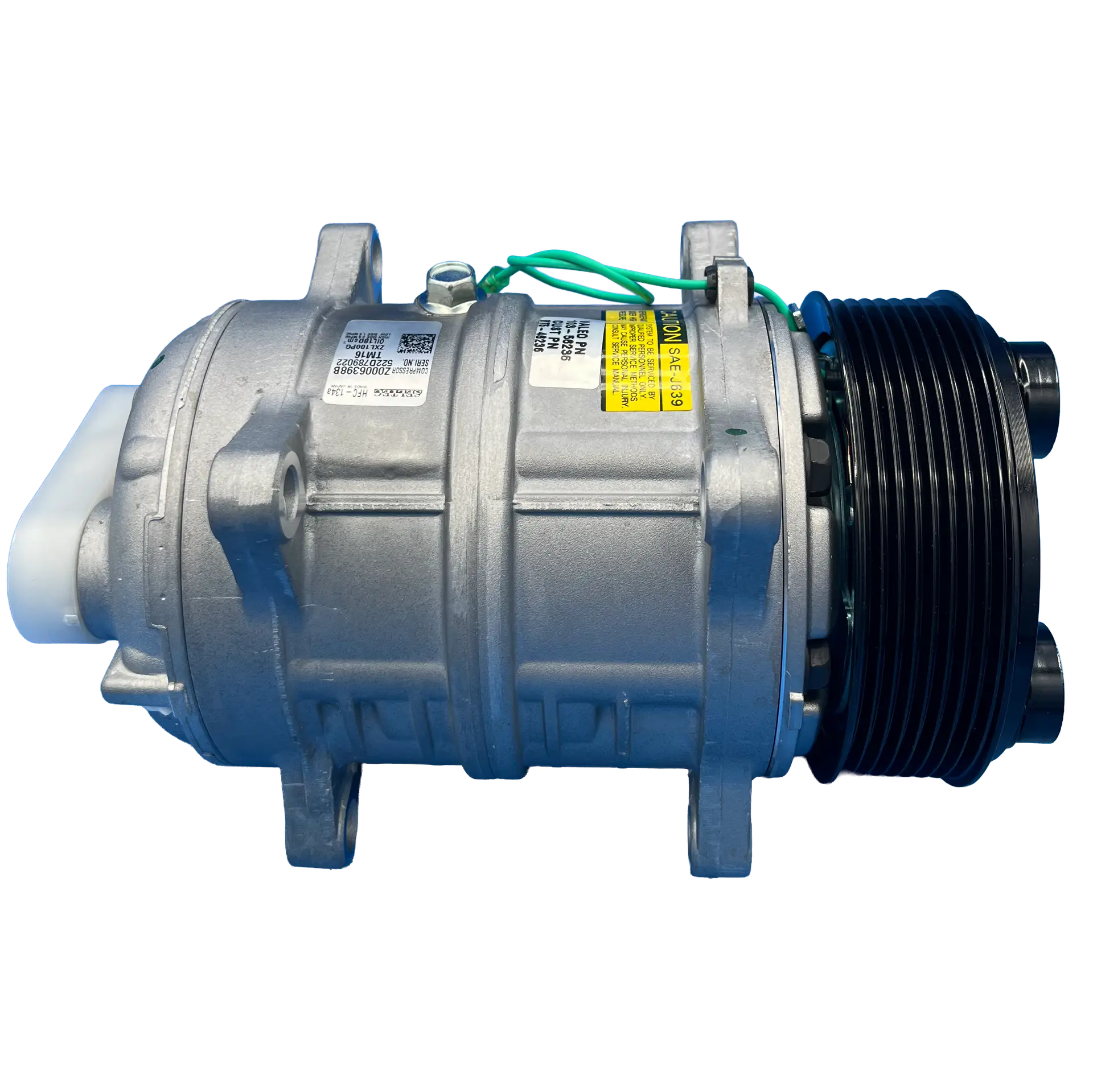

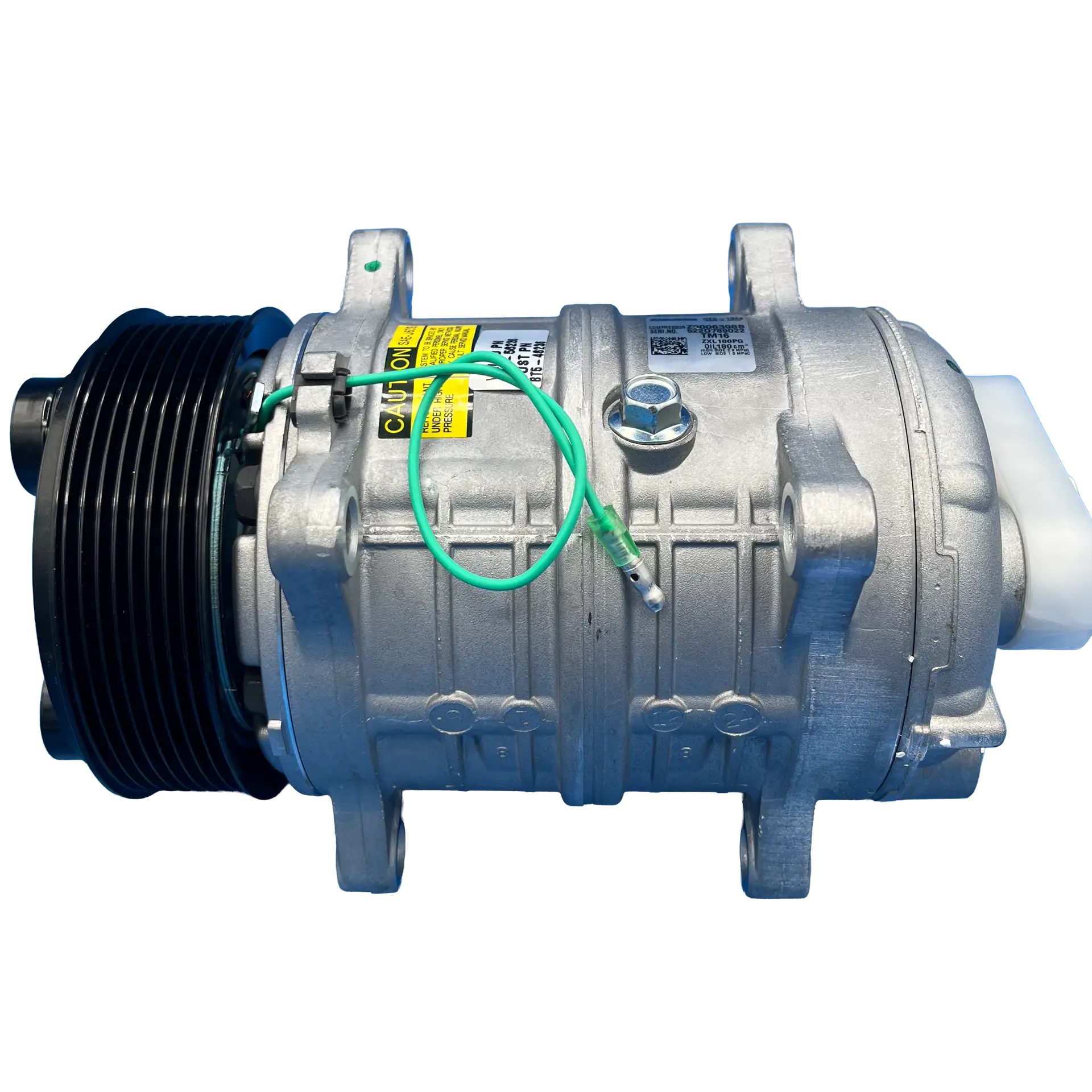

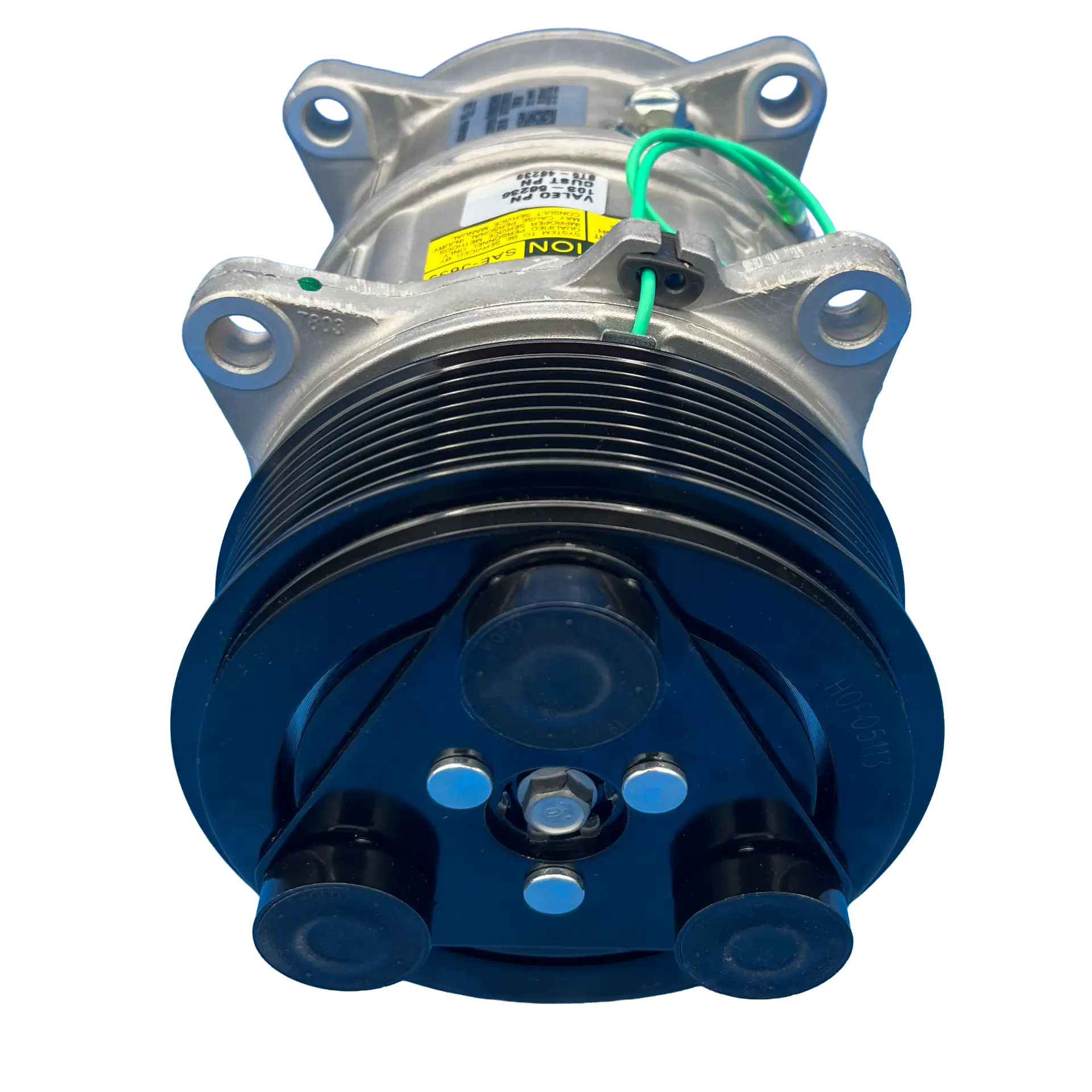

BT5-46236 Compressor – Seltec / Valeo TM16HD/HS 24V R134a, 123mm 8-Groove Clutch, G Head

Description

Product Description

The BT5-46236 compressor is built on the proven Seltec / Valeo TM16HD/HS platform, a 6-cylinder, high-capacity design commonly used in agricultural, construction, and off-road air conditioning systems.

This unit operates on 24 volts and is factory charged with 180cc of PAG46 oil for R134a refrigerant systems. The G cylinder head features a universal O-ring pad with horizontal port orientation, allowing flexible hose routing across multiple OEM and aftermarket installations.

A 123mm 8-groove serpentine clutch supports modern belt drive systems, while the direct-mount configuration and splined shaft ensure compatibility across a wide range of TM16HD/HS applications. The compressor supports bi-directional rotation (CW / CCW), further expanding fitment flexibility.

---

Key Features

• Seltec / Valeo TM16HD/HS compressor platform

• 24V operation for farm & off-road HVAC systems

• 6-cylinder design with 9.7 cu. in. displacement

• G head with universal O-ring pad fittings

• 123mm 8-groove serpentine clutch

• Direct-mount configuration

• Bi-directional rotation (CW / CCW)

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-46236

• Product Name: Compressor

• Compressor Family: TM16

• Model: TM16HD/HS

• Application: Farm & Off-Road Applications

• Refrigerant Type: R134a

• Voltage: 24V

• Rotation: CW / CCW

• Number of Cylinders: 6

• Displacement: 9.7 cu. in.

• Mounting Type: Direct Mount

• Shaft Type: Splined Shaft

• Head Type: G

• Fitting Style: Universal O-Ring Pad

• Fitting Port Position: Horizontal

• Clutch Diameter: 123mm

• Number of Grooves: 8

• Belt Type: Serpentine

• Factory Oil Charge: 180cc

• Oil Type: PAG46

• Wire Type: 1-Wire Bullet

• Diode Protection: None

---

Service & Seal Information

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: NSS

• O-Ring #1: 0117

---

Cross References / OEM Numbers

Omega

• 20-46236

Valeo

• 103-56236

• 103-56402

• 103-56466

Seltec

• 488-46236

• 10056236

MEI

• 5806

• 5806T

ICE

• 2521445

Truck Air

• 03-3285

CoolStar / Caterpillar

• 340-2115

---

Applications

• Agricultural and off-road equipment HVAC systems

• Construction and industrial machinery

• Farm equipment air conditioning

• 24-volt R134a mobile HVAC applications
